Exploded View Parts Ordering: 2013-V5_526

2013-V5 526 Online Parts Manual

Serial No: 526-95101 End Date 526-01465

Return to manuals

Page Code: C-10-49

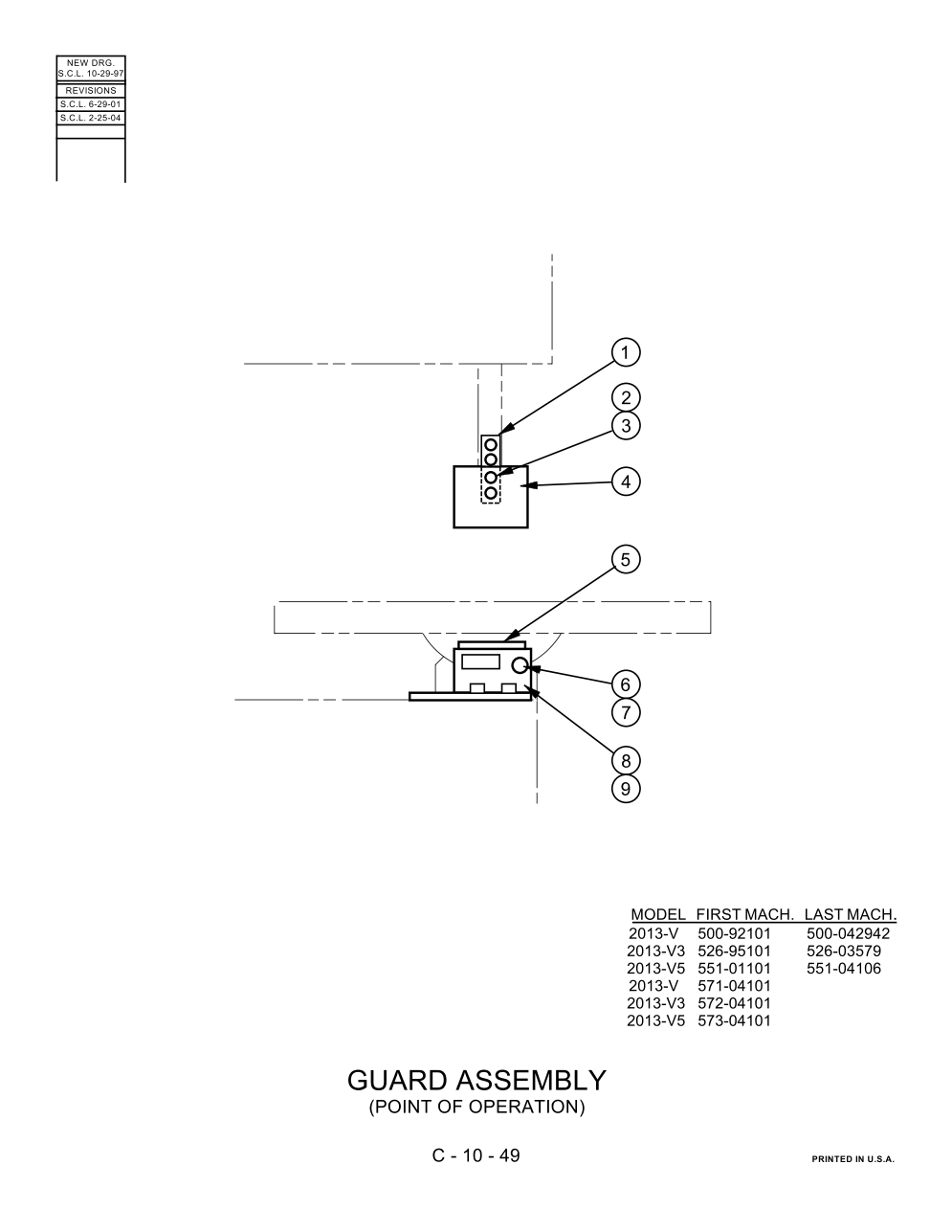

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 084-170869 Description: Guard Assembly (Point of Operation) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-460469 Description: Thumb Screw Assembly Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-310862 Description: Knob Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-982199 Description: Screw, Soc. Hd. Cap #10-24NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 092-035468 Description: Spacer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 093-193373 Description: Upper Guard (Plexiglas) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 094-170859 Description: Telescoping Guard Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 094-170842 Description: Lower Guard Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 092-031459 Description: Escutcheon (Guard Position) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-333724 Description: Thumb Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 092-030980 Description: Nut Plate 1/4-20NC Units Per Assembly: 1 Availability: Call For Info Price:
