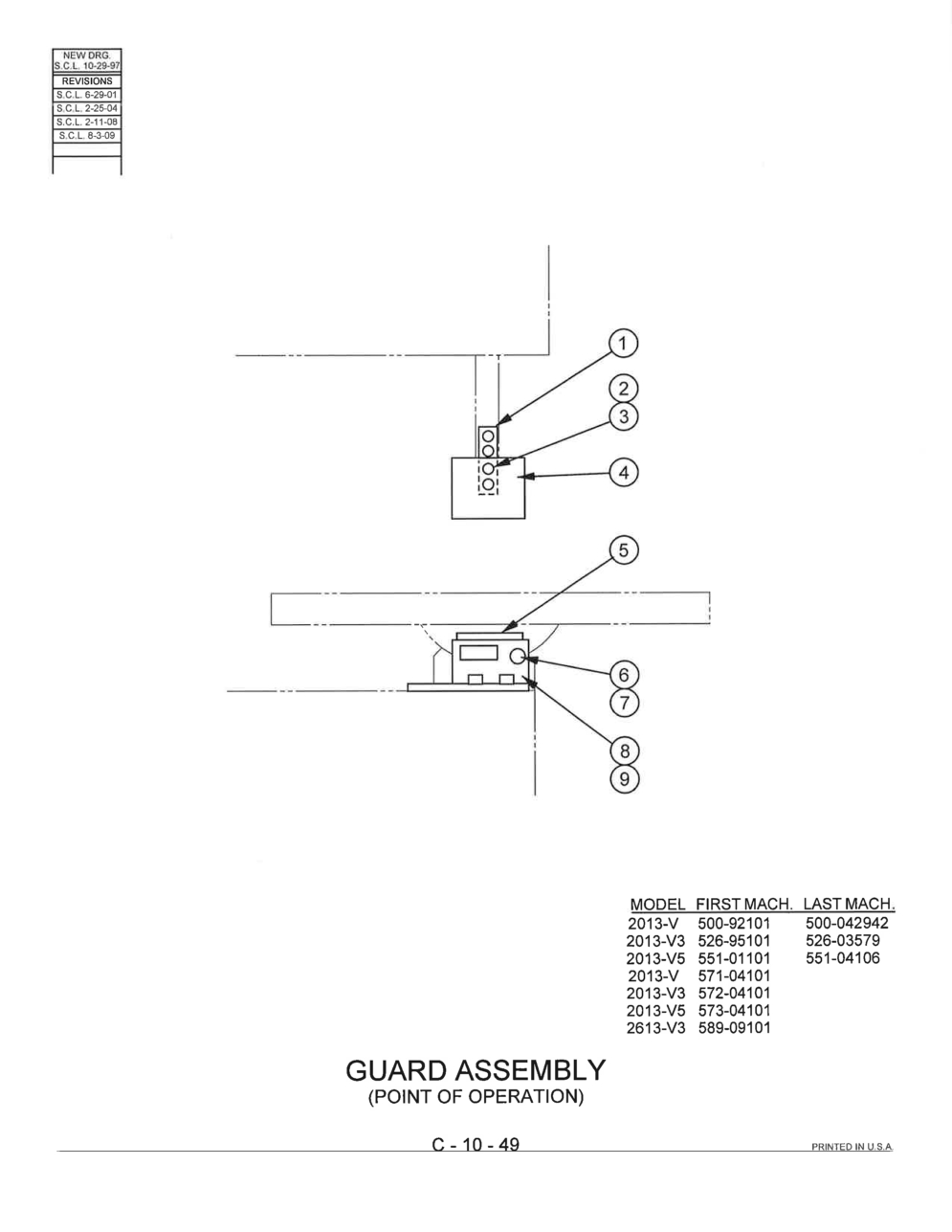

Exploded View Parts Ordering: 2013-V3_572
Page Code: C-10-49
| Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
|
Index No Ref.:
Ref. |
Part Number:
417086 |
Description:
Guard Assembly (Point of Operation) |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
1 |
Part Number:
213713
|
Description:
Guard Mounting Plate |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$999,999.00 |
|
Index No Ref.:
2 |
Part Number:
146046
|
Description:
Thumb Screw Assembly |
Units Per Assembly:
2 |
Availability:
In Stock
|
Price:
$30.86 |
|
Index No Ref.:
|
Part Number:
131086
|
Description:
Knob |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$1.28 |
|
Index No Ref.:
|
Part Number:
198219
|
Description:
Screw, Soc. Hd. Cap #10-24NC x 3/8 |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$4.20 |
|
Index No Ref.:
3 |
Part Number:
203546
|
Description:
Spacer |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$44.03 |
|
Index No Ref.:
4 |
Part Number:
319337 |
Description:
Upper Guard (Plexiglas) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
5 |
Part Number:
417085 |
Description:
Telescoping Guard |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
6 |
Part Number:
417084
|
Description:
Lower Guard |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$108.69 |
|
Index No Ref.:
7 |
Part Number:
203145 |
Description:
Escutcheon (Guard Position) |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
|
Index No Ref.:
8 |
Part Number:
133372
|
Description:
Thumb Screw |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$2.95 |
|
Index No Ref.:
9 |
Part Number:
203098 |
Description:
Nut Plate 1/4-20NC |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
