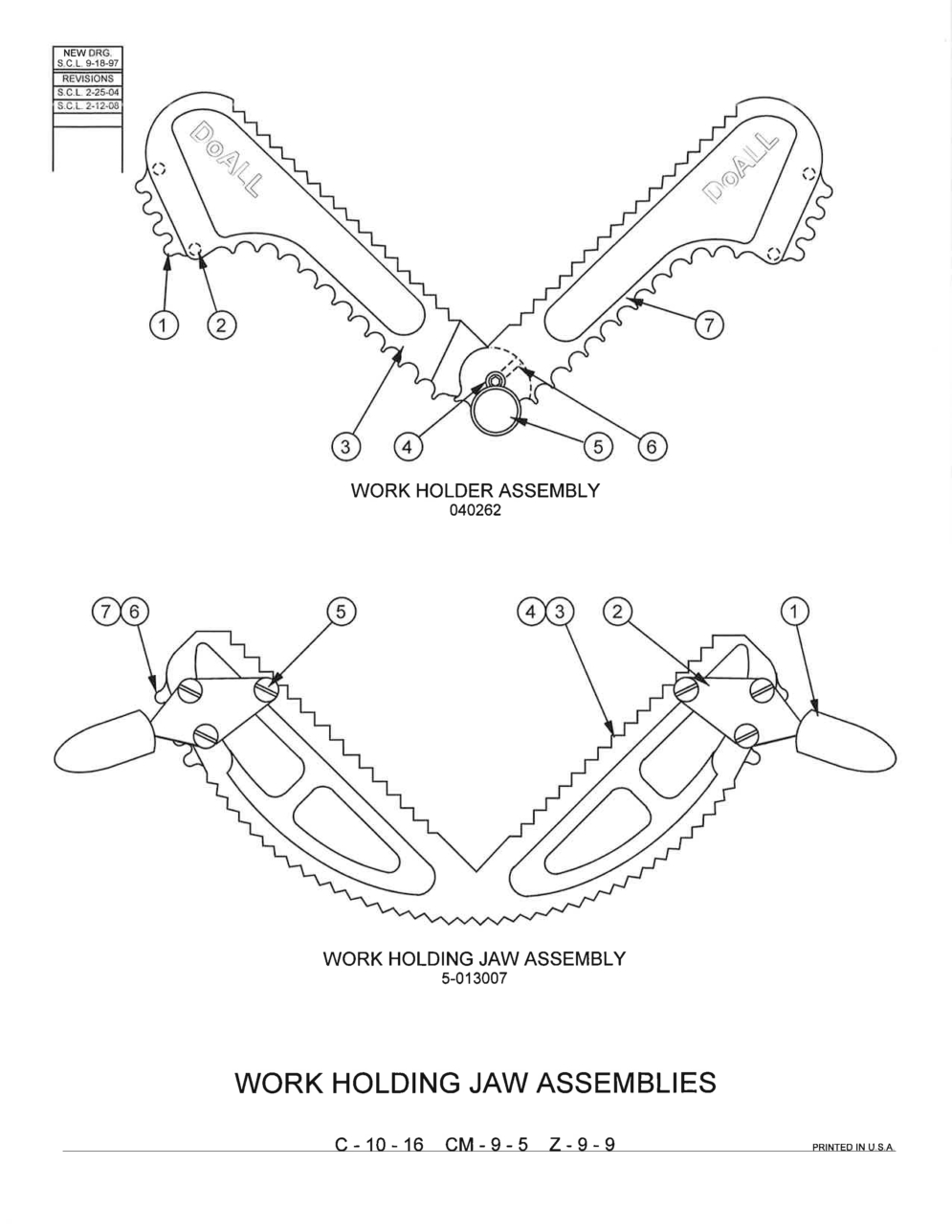

Exploded View Parts Ordering: 2013-V3_572
Page Code: C-10-16
Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
Index No Ref.:
Ref. |
Part Number:
040262 |
Description:
Work Holder Assembly |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
1* |
Part Number:
5-013313 |
Description:
Sprocket |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
2 |
Part Number:
198698
|
Description:
Screw, Fill. Hd. Mach. #10-24NC x 1/2 |
Units Per Assembly:
4 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
3 |
Part Number:
020386 |
Description:
Left Arm |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
4 |
Part Number:
198236
|
Description:
Screw, Soc. Hd. Cap 1/4-20NC x 1/2 |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
5 |
Part Number:
002162 |
Description:
Knurled Screw |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
6 |
Part Number:
198410 |
Description:
Screw, Soc. Set #10-24NC x 1/4 |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
7 |
Part Number:
020385 |
Description:
Right Arm |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
|
Description:
*NOTE: Before 2-12-44 On Hydraulic Machines, Use #6-023337 Sprocket With 3/16" Pitch; Specify Pitch of Chain When Ordering. |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
Ref |
Part Number:
5-013007
|
Description:
Work Holding Jaw Assembly |
Units Per Assembly:
|
Availability:
In Stock
|
Price:
$404.00 |
Index No Ref.:
1 |
Part Number:
5-013512 |
Description:
Jaw Handle |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
2 |
Part Number:
5-013318 |
Description:
Bracket |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
3 |
Part Number:
040678 |
Description:
Work Holding Jaw Sub-Assembly |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
4 |
Part Number:
5-013110 |
Description:
Work Holding Jaw |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
5 |
Part Number:
198892 |
Description:
Screw, Rd. Hd. Mach. 1/4-20NC x 5/16 |
Units Per Assembly:
6 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
6 |
Part Number:
5-013313 |
Description:
Sprocket |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
7 |
Part Number:
199015
|
Description:
Screw, Truss Hd. Mach. #10-24NC x 3/8 |
Units Per Assembly:
4 |
Availability:
In Stock
|
Price:
$4.20 |
Index No Ref.:
Ref. |
Part Number:
34-003107 |
Description:
Work Holding Jaw (Ratchet And Screw Feed Options) |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
