Exploded View Parts Ordering: 2013-V3_526

2013-V3 526 Online Parts Manual

Serial No: 526-95101 End Date 526-03576

Return to manuals

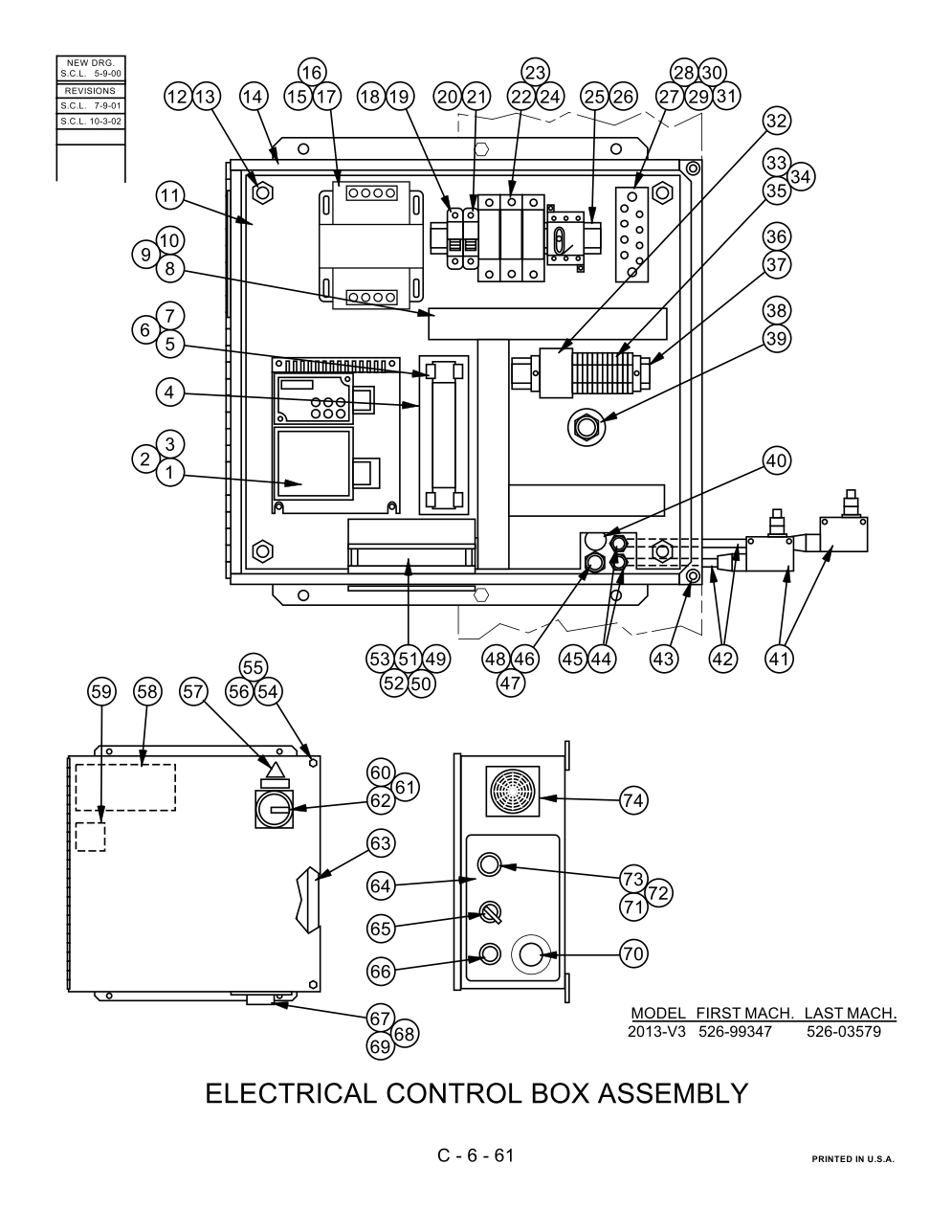

Page Code: C-6-61

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Electrical Control Box Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1* Part Number: 092-191709 Description: Variable Speed Controller (208V, 220V, 230V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-191717 Description: Variable Speed Controller (380V-415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-988659 Description: Screw, Rd. Hd. Mach. #10-24NCx 1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-988519 Description: Screw, Rd. Hd. Mach. #8-32NC x 1/4 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 092-087196 Description: Resistor Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 092-077864 Description: Resisitor (40 Ohm) (208V, 220V, 230V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-193309 Description: Resistor (160 Ohm) (380V-415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-000166 Description: Spacer Units Per Assembly: 1 Availability: In Stock Price: $9.77
Index No Ref.: 7 Part Number: 092-087287 Description: Mounting Bracket Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-972083 Description: 1 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-972109 Description: 1 Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-077776 Description: Plastic Push Rivet Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 095-196473 Description: Control Panel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-993253 Description: Washer, Lock 3/8 Std Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 095-175345 Description: Enclosure Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 093-190882 Description: Transformer (208V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-190874 Description: Transformer (220V, 230V, 460V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-177526 Description: Transformer (380V-415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-991125 Description: Nut, Hex. #10-24NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-993733 Description: Washer, Lock #10 Shakeproof Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 18* Part Number: 092-152123 Description: Fuse Block (Non 380V-415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-203544 Description: Circuit Breaker (380V-415V When Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19* Part Number: 092-031590 Description: Fuse (2.5 Amp) (208V, 230V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-031582 Description: Fuse (1 Amp) (380V-415V When Supplied, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 092-152123 Description: Fuse Block (Non 380V-415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-203553 Description: Circuit Breaker (380V-415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 092-049543 Description: Fuse (1.6 Amp) (Non 380V-415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 092-152131 Description: Fuse Block (Non 380V-415V) (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-203965 Description: Circuit Breaker (380V-415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 092-071067 Description: Fuse (30 Amp) (208V, 220V, 230V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-071760 Description: Fuse (20 Amp) (380V-415V) (If Supplied) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-050368 Description: Fuse (15 Amp) (460V, 575V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 092-117621 Description: Fuse Cover (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-696740 Description: Mounting Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 093-207405 Description: Grounding Bus Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-416396 Description: Terminal Lug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-989624 Description: Screw, Pan Hd. Slotted M6 x 1.0 x 16 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 092-152032 Description: Screw, Pan Hd. Slotted M6 x 1.0 x 8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 092-152024 Description: Screw, Pan Hd. Slotted M5 x 0.8 x 6 Units Per Assembly: 7 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 092-072008 Description: Control Relay Units Per Assembly: 1 Availability: In Stock Price: $80.41
Index No Ref.: Part Number: 092-072065 Description: Control Relay (Shift Lock Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-072263 Description: Pneumatic Timer Relay (Shift Lock Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 092-006154 Description: Terminal Block Units Per Assembly: 12 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 092-006170 Description: End Section Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 092-006188 Description: End Stop Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-696740 Description: Mounting Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10-24NCx 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 090-147729 Description: Insulated Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-351064 Description: Hole Closing (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 091-351064 Description: Hole Closing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-767681 Description: Limit Switch Units Per Assembly: 2 Availability: In Stock Price: $161.40
Index No Ref.: Part Number: 092-111103 Description: Limit Switch Assembly (380V-415V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 091-983321 Description: Electrical Cord (#18-2 Conductor) Units Per Assembly: A.R. Availability: In Stock Price: $4.20
Index No Ref.: 43 Part Number: 092-032478 Description: Nut Rivet 1/4-28NF Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 092-016880 Description: Cord Grip Connector (.200-.394) Units Per Assembly: 2 Availability: In Stock Price: $5.96
Index No Ref.: 45 Part Number: 092-076929 Description: Locknut Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 092-016872 Description: Cord Grip Connector (.545-.709) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 092-076942 Description: Locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 091-972182 Description: Electrical Cord (#14-4 Conductor) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 092-087980 Description: Fan (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 092-087998 Description: Fan Cover (If Supplied) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 092-088004 Description: Fan Lead Wire (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 092-151810 Description: Screw, Flat Hd. Slotted M4 x 0.7 x 12 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 092-151828 Description: Screw, Flat Hd. Slotted M4 x 0.7 x 25 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 092-068006 Description: Screw, Rd. Hd. Mach. 1/4-28NFx 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 092-041524 Description: Nylon Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 092-041516 Description: Retainer Ring Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: 091-765289 Description: Label (Electrical Hazard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: 092-149756 Description: Fuse/Overload Schedule Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 092-066943 Description: Label (Electrical Info) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 60 Part Number: 092-114370 Description: Disconnect Switch Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 61 Part Number: 092-025592 Description: Disconnect Switch Key Spacer (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 62 Part Number: 092-025584 Description: Disconnect Switch Spacer (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 63 Part Number: 092-039254 Description: Gasket Strip Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 64 Part Number: 094-200615 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 65 Part Number: 092-111111 Description: Selector Switch (2 Position) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-351064 Description: Hole Closing (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 66 Part Number: 092-114917 Description: Pushbutton Assembly (Start) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 67 Part Number: 092-071810 Description: Selector Switch (2 Position) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 68 Part Number: 092-071851 Description: Contact Block (1-NO) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 69 Part Number: 092-173737 Description: Escutcheon (Mist Lube) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 70 Part Number: 092-111095 Description: Emergency Stop Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 71 Part Number: 092-037324 Description: Potentiometer Operator Kit Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 72 Part Number: 091-782755 Description: Potentiometer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 73 Part Number: 092-081447 Description: Locating Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 74 Part Number: 092-087998 Description: Fan Cover (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 091-974204 Description: Wire, #10 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-973255 Description: Wire, #16 White (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971978 Description: Wire, #16 Red (19 Strand) Units Per Assembly: A.R. Availability: In Stock Price: $3.10
Index No Ref.: Part Number: 091-973438 Description: Wire, #16 Green/Yellow (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971713 Description: Wire Marker Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 092-025568 Description: 90 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-331959 Description: Grommet (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-038471 Description: Wire Terminal (#12 Stud) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-037233 Description: Ground ID Shrink Tube (Europa Only) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 092-087162 Description: Terminal Block Marker Set Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-128685 Description: Fan Cover (U.L. Approved) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-149434 Description: Isolation Transformer (575V Step Down to 230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: For Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 092-150309 Description: Variable Speed Controller Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 092-053354 Description: Fuse (25 Amp) (208V, 230V, 460V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Additional Items #4, #5, #6, and #7 are Used. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: For Altivar 18 Variable Speed Controller: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 092-128446 Description: Variable Speed Controller (208V, 220V, 230V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-149426 Description: Variable Speed Controller (380V-415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 092-149699 Description: Resistor (208V, 220V, 230V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-149707 Description: Resistor (380V-415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
