Exploded View Parts Ordering: 2013-U_411

2013-U 411 Online Parts Manual

Serial No: 411-80101 End Date 411-83444

Return to manuals

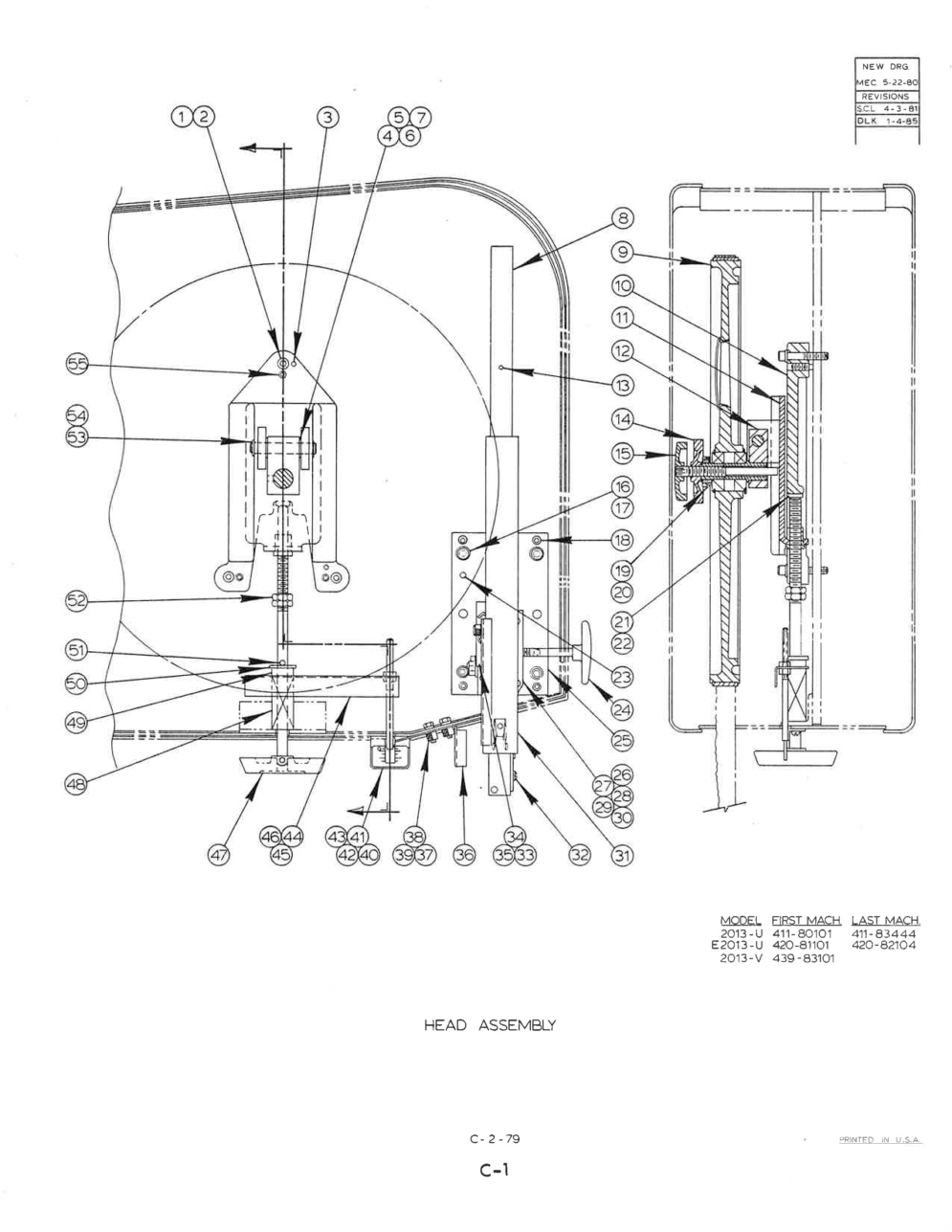

Page Code: C-2-79

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: REF. Part Number: 095-086336 Description: Head Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-982645 Description: Screw, Soc. Hd. Cap 5/16 - 18NC x 2 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-042656 Description: Roll Pin Units Per Assembly: 2 Availability: In Stock Price: $9.91
Index No Ref.: 4 Part Number: 091-333104 Description: Shim (.035) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-333112 Description: Shim (.0149) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-333120 Description: Shim (.005) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-333138 Description: Shim (.003) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 093-030294 Description: Post Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 094-025988 Description: Upper Saw Wheel Assembly Units Per Assembly: 1 Availability: In Stock Price: $1,303.01
Index No Ref.: Part Number: 091-253578 Description: Tire Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 134-015031 Description: Wheel Tire Cement Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 094-025970 Description: Upper Saw Wheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-140872 Description: Plug Button Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 105-015085 Description: Wheel Bearings Units Per Assembly: 2 Availability: In Stock Price: $24.52
Index No Ref.: 10 Part Number: 095-046215 Description: Head Casting Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 094-018157 Description: Head Slide Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 093-023463 Description: Wheel Hinge Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-206243 Description: Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-984237 Description: Screw, Soc. Set 1/4 - 2ONC x 5/16 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 105-014245 Description: Axis Stud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-982355 Description: Screw, Soc. Hd. Cap 1/4-20NC x 3/8 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 14 Part Number: 105-011092 Description: Upper Wheel Tilting Locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-391821 Description: Tilting Screw Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-982801 Description: Screw, Soc. Hd. Cap 3/8 - 16NC x 1-1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-993329 Description: Washer, Lock 3/8 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-218719 Description: Screw, Soc. Set (Self-Locking) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 105-015077 Description: Bearing Lockwasher Units Per Assembly: 1 Availability: In Stock Price: $1.67
Index No Ref.: 20 Part Number: 105-015069 Description: Bearing Locknut Units Per Assembly: 1 Availability: In Stock Price: $5.17
Index No Ref.: 21 Part Number: 091-656868 Description: Bumper Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 134-015031 Description: Wheel Tire Cement Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 090-163519 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-650762 Description: Lockscrew Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 094-105632 Description: Post Guide Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 093-089290 Description: Post Guide Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-982470 Description: Screw, Soc. Hd. Cap 1/4 - 2ONC x 2 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 135-004430 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-650812 Description: Slug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-650804 Description: Ball Plunger Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 093-060572 Description: Saw Band Guard Assembly Units Per Assembly: 1 Availability: In Stock Price: $197.71
Index No Ref.: 32 Part Number: 091-986984 Description: Screw, Fil Hd. Mach. #10 - 24NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-650796 Description: Guard Stop Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-992586 Description: Washer, Flat #10 S.A.E., Std. Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 35 Part Number: 091-980086 Description: Screw, Hex. Hd. Cap 1/4 - 2ONC x 3/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 093-044659 Description: Guard Slide (Post) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-388157 Description: Thumb Nut Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-980086 Description: Screw, Hex. Hd. Cap 1/4 - 2ONC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-993212 Description: Washer, Lock 1/4 Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 40 Part Number: 091-391227 Description: Bracket Units Per Assembly: 1 Availability: In Stock Price: $75.78
Index No Ref.: 41 Part Number: 091-994657 Description: Screw, Rd. Hd. Self-Tap #10 - 24NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 091-993204 Description: Washer, Lock #10 Std. (Cad. Plated) Units Per Assembly: 3 Availability: In Stock Price: $4.20
Index No Ref.: 43 Part Number: 091-177378 Description: Escutcheon (Band Tension) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-314245 Description: Escutcheon (Band Tension) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-440628 Description: Angle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 091-422501 Description: Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 091-991232 Description: Nut, Hex. Jam 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 093-044956 Description: Band Tension Screw Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 135-087617 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 135-028108 Description: Thrust Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 091-992669 Description: Washer, Flat 1/2 S.A.E. Std. Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 51 Part Number: 090-042599 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 52 Part Number: 091-991323 Description: Nut, Hex. Jam 1/2 -13NC Units Per Assembly: 3 Availability: In Stock Price: $4.20
Index No Ref.: 53 Part Number: 091-206276 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 135-096139 Description: Retaining Ring Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 55 Part Number: 091-986133 Description: Screw, Soc. Set 5/16 -18NC x 1 (Half Dog Pt.) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: FOLLOWING NOT SHOWN: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 091-630806 Description: Loctite Retaining Compound (#271) Units Per Assembly: A.R. Availability: Call For Info Price:
