Exploded View Parts Ordering: 2013-2_396

2013-2 396 Online Parts Manual

Serial No: 396-78101 End Date 396-86273

Return to manuals

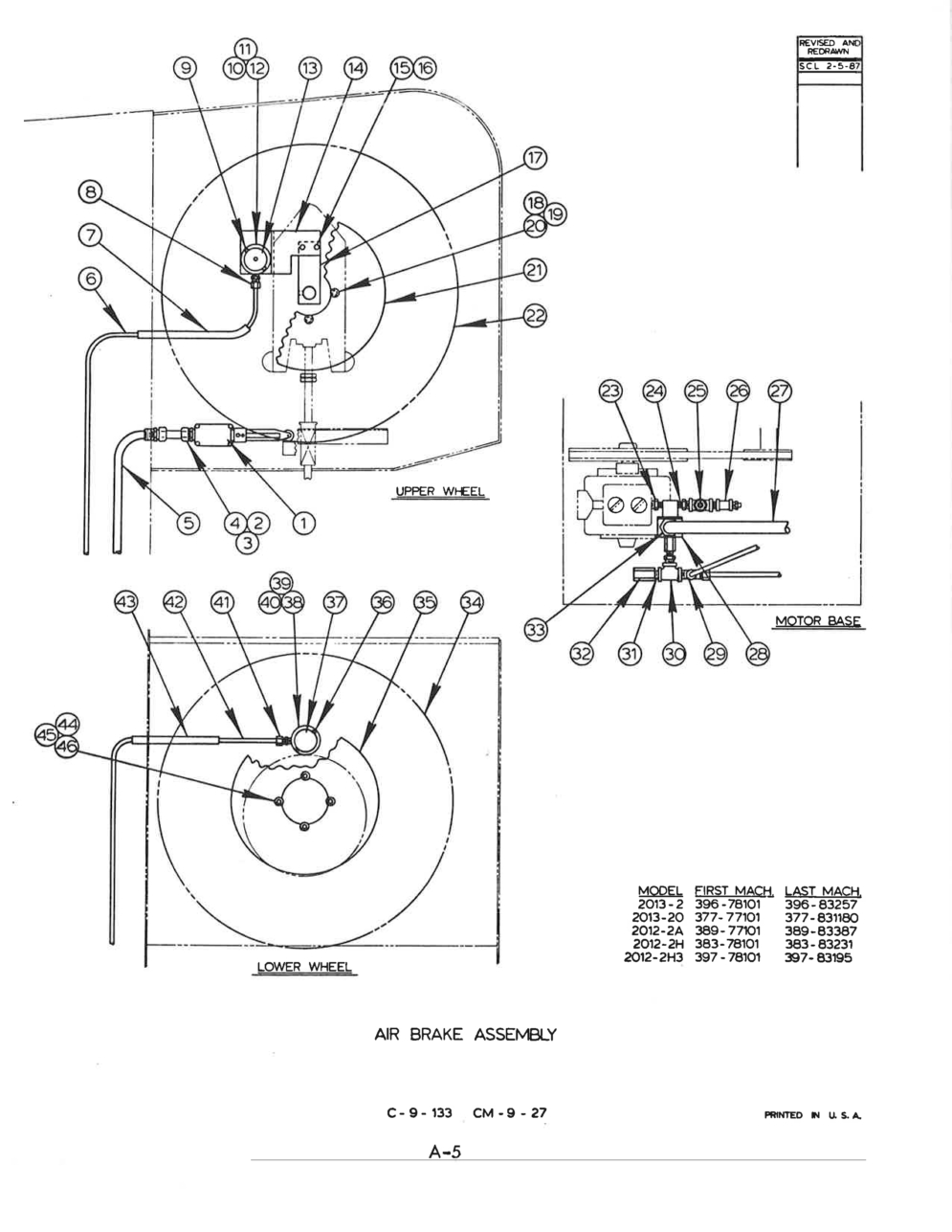

Page Code: C-9-133

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 085-074003 Description: Air Brake Assembly (w/Chip Blower)(2013-2, 2013-20) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 085-073765 Description: Air Brake Assembly (w/Mist Coolant)(2013-2, 2013-20) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 085-074052 Description: Air Brake Assembly (2012-2A) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 085-074060 Description: Air Brake Assembly (2012-2H, 2012-2H3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-261926 Description: Limit Switch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-107897 Description: Cord Grip Connector Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-145053 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-972216 Description: Extension Cord (#16-4 Conductor) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-971374 Description: Nylon Tubing 1/4 O.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-971010 Description: Neoprene Hose 1/2 O.D.(Black) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 093-090041 Description: Male Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-988519 Description: Screw, Rd. Hd. Mach. #8-32NC x 1/4 (2013-2, 2013-20) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-983510 Description: Screw, Soc. Hd. Cap #8-32NC x 1-1/2 (2012-2A, 2012-2H, 2012-2H3) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-419010 Description: Air Cylinder Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-185264 Description: Breather Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-460444 Description: Spacer (2012-2H, 2012-2H3 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-419051 Description: Brake Shoe Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-493387 Description: Friction Disk Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-419044 Description: Disk Mount Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-368936 Description: Glue (Meta Grip #3802) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 094-069903 Description: Cylinder Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-980060 Description: Screw, Hex. Hd. Cap 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-993212 Description: Washer, Lock 1/4 Std Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 17 Part Number: 093-054138 Description: Wheel Hinge Assembly (Air Brake)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-982785 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-993253 Description: Washer, Lock 3/8 Std Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-365718 Description: Spacer Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-237132 Description: Brake Disc Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 094-057023 Description: Bandwheel Assembly (Upper)(Air Brake)(2013-2, 2013-20, 2012-2A)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-082732 Description: Bandwheel Assembly (Upper)(Air Brake)(2012-2H, 2012-2H3)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-343517 Description: Hex. Reducer Bushing Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 114-145287 Description: Close Nipple Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-020041 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-180885 Description: Safety Valve (2013-2 ,2013-20, 2012-2H, 2012-2H3) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-283796 Description: Safety Valve (2012-2A) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-971564 Description: Sealtite Conduit 1/2 I.D. Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 28 Part Number: 091-233569 Description: Solenoid Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 093-091221 Description: Male Run Tee Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 135-024743 Description: Pipe Tee Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 135-023430 Description: Pipe Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 093-034098 Description: Orifice (.0135 Dia.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 090-145459 Description: Sealtite Connector Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 094-089794 Description: Bandwheel Assembly (Lower)(Air Brake)(2013-2, 2013-20, 2012-2A)(SeeDetail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-090446 Description: Bandwheel Assembly (Lower)(Air Brake)(2012-2H, 2012-2H3)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 093-078137 Description: Brake Disc Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-988519 Description: Screw, Rd. Hd. Mach. #8-32NC x 1/4 (2013-2, 2013-20) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-983510 Description: Screw, Soc. Hd. Cap #8-32NC x 1-1/2 (2012-2A, 2012-2H, 2012-2H3) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-419051 Description: Brake Shoe Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-493387 Description: Friction Disk Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-419044 Description: Disk Mount Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-368936 Description: Glue (Meta Grip #3802) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-419010 Description: Air Cylinder Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-185264 Description: Breather Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 091-460451 Description: Spacer (2012-2H, 2012-2H3 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 093-090041 Description: Male Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 091-971374 Description: Nylon Tubing 1/4 O.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 091-971010 Description: Neoprene Hose 1/2 O.D. (Black) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-982397 Description: Screw, Soc. Hd. Cap 1/4-20NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 091-993212 Description: Washer, Lock 1/4 Std Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 46 Part Number: 091-992610 Description: Washer, Flat 1/4 S.A.E. Std Units Per Assembly: 4 Availability: Call For Info Price:
