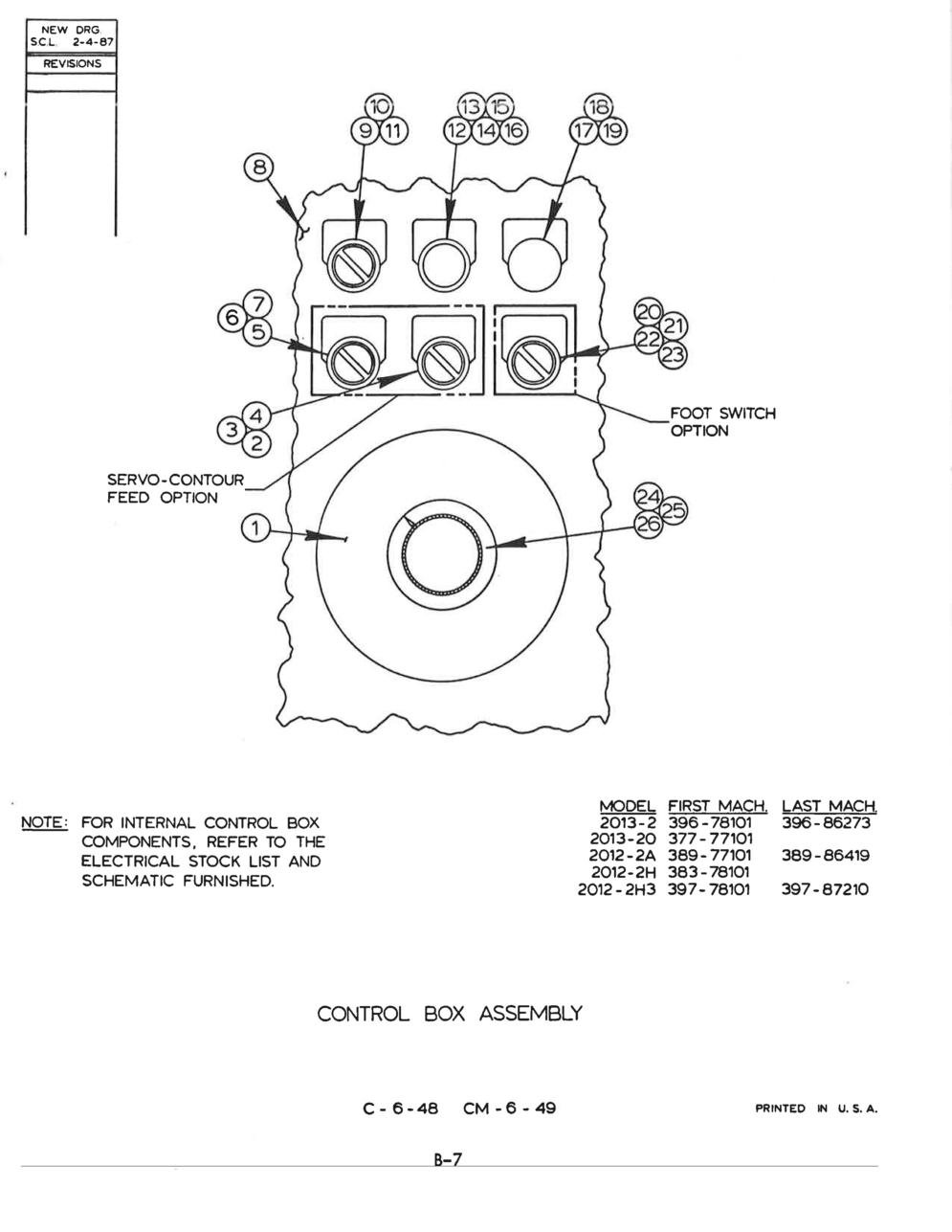

Exploded View Parts Ordering: 2013-2_396

2013-2 396 Online Parts Manual

Serial No: 396-78101 End Date 396-86273

Return to manuals

Page Code: C-6-48

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Control Box Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 093-087864 Description: Speed Dial (Inch/English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-087898 Description: Speed Dial (Metric/International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *2 Part Number: 090-152455 Description: Selector Switch (2 Position) Units Per Assembly: 1 Availability: In Stock Price: $329.89
Index No Ref.: *3 Part Number: 091-048215 Description: Contact Block (1-NC) Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: *4 Part Number: 091-163121 Description: Legend Plate (Straight-Contour)(English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: * Part Number: 091-399055 Description: Legend Plate (Straight-Contour)(International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *5 Part Number: 090-152455 Description: Selector Switch (2 Position) Units Per Assembly: 1 Availability: In Stock Price: $329.89
Index No Ref.: *6 Part Number: 090-149626 Description: Contact Block (1-NO, 1-NC) Units Per Assembly: 1 Availability: In Stock Price: $228.54
Index No Ref.: *7 Part Number: 091-137166 Description: Legend Plate (Manual-Foot Switch)(English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: * Part Number: 091-399063 Description: Legend Plate (Manual-Foot Switch)(International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 095-070512 Description: Control Box Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-152455 Description: Selector Switch (2 Position) Units Per Assembly: 1 Availability: In Stock Price: $329.89
Index No Ref.: 10 Part Number: 091-048207 Description: Contact Block (1-NO) Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: 11 Part Number: 091-333591 Description: Legend Plate (Worklight)(English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-369134 Description: Legend Plate (Worklight)(International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-356741 Description: Pushbutton Operator (Illuminated) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-354472 Description: Lens Cap (Green) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-391136 Description: Pushbutton Guard Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-048207 Description: Contact Block (1-NO) Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: 16 Part Number: 091-080036 Description: Legend Plate (Drive Start)(English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-312017 Description: Legend Plate (Drive Start)(International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-149618 Description: Pushbutton Operator (Red Mushroom) Units Per Assembly: 1 Availability: In Stock Price: $384.47
Index No Ref.: 18 Part Number: 091-048215 Description: Contact Block (1-NC) Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: 19 Part Number: 091-080028 Description: Legend Plate (Drive Stop)(English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-315135 Description: Legend Plate (Drive Stop)(International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *20 Part Number: 090-152414 Description: Selector Switch (3 Position) Units Per Assembly: 1 Availability: In Stock Price: $329.89
Index No Ref.: *21 Part Number: 090-149626 Description: Contact Block (1-NO,1-NC) Units Per Assembly: 1 Availability: In Stock Price: $228.54
Index No Ref.: *22 Part Number: 091-048215 Description: Contact Block (1-NC) Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: *23 Part Number: 091-289975 Description: Legend Plate (Man.-Prod.-Cont.)(English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: * Part Number: 091-421180 Description: Legend Plate (Man.-Prod.-Cont.)(International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-442111 Description: Potentiometer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-486795 Description: Lock Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-454843 Description: Knob Units Per Assembly: 1 Availability: In Stock Price: $12.00
Index No Ref.: Part Number: Description: *NOTE: These Items Are Used On 2012-2H And 2012-2H3 Models Only. Units Per Assembly: Availability: Call For Info Price:
