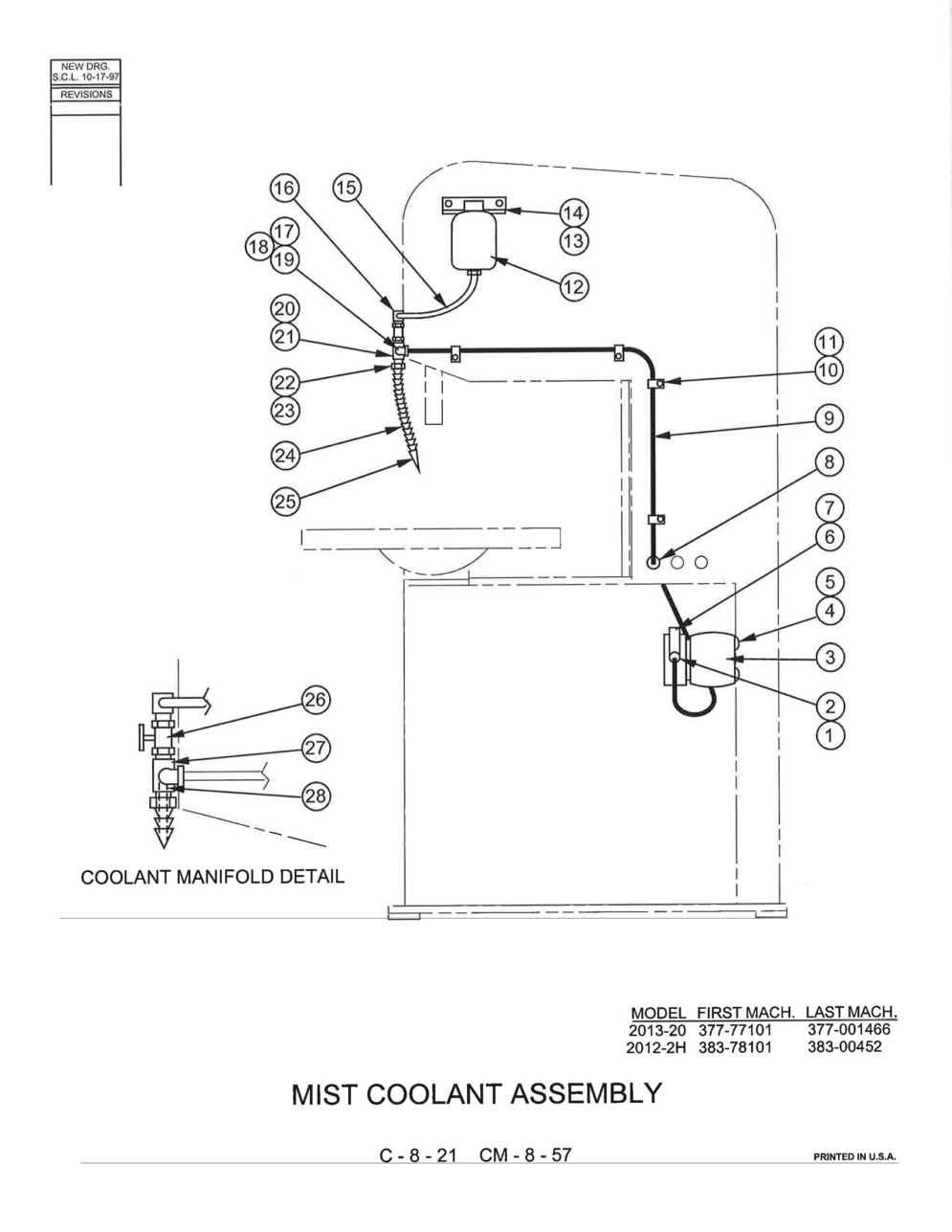

Exploded View Parts Ordering: 2013-20_377

2013-20 377 Online Parts Manual

Serial No: 377-77101 End Date 377-001466

Return to manuals

Page Code: C-8-21

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 095-021853 Description: Mist Coolant Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-020041 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-179029 Description: Hose Clamp Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-681569 Description: Air Compressor (60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-698464 Description: Air Compressor (50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-696310 Description: Air Filter (For 1/8 H.P. Compressors Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-686147 Description: Air Compressor (60 Hz w/Air Table) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-698472 Description: Air Compressor (50 Hz, 220V w/Air Table) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-698480 Description: Air Compressor (50 Hz, 110V w/Air Table) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-989483 Description: Screw, Rd. Hd. Mach. #10-32NF x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-993733 Description: Washer, Lock #10 Shakeproof Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 135-008472 Description: Service Tee Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-180885 Description: Safety Valve (30 P.S.I.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-283796 Description: Safety Valve (90 P.S.I.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-068032 Description: Grommet Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-980947 Description: Neoprene Hose 11/16 O.D. (Black) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-156521 Description: Tubing Clamp Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-994848 Description: Screw, Rd. Hd. Self-Tap 1/4-20NC x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-369181 Description: Bottle Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 093-039568 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-994848 Description: Screw, Rd. hd. Self-Tap 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-971440 Description: Plastic Tubing 1/4 I.D. (Clear) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: 16 Part Number: 091-081166 Description: 90 Degree Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 105-045207 Description: 90 Degree Street Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-281790 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-179029 Description: Hose Clamp Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-994830 Description: Screw, Rd. Hd. Mach. #10-24NC x 1-1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-383035 Description: Coolant Manifold Assembly (Standard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-383043 Description: Coolant Manifold Assembly (18" and 19" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-073344 Description: Coolant Manifold Assembly (24" and 25" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-115657 Description: Coolant Manifold Assembly (30" and 31" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-725309 Description: Coolant And Air Hose (Standard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-725317 Description: Coolant And Air Hose (18" and 19" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-725325 Description: Coolant And Air Hose (24" and 25" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-725333 Description: Coolant And Air Hose (30" and 31" Work Heights) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-725291 Description: Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-973222 Description: Segmented Hose (Specify Length) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-725283 Description: Nozzle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 105-275077 Description: Sight Feed Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-199109 Description: Manifold Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-210617 Description: Coolant Tube Assembly (Cut to Length) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971408 Description: Nylon Tubing .089 O.D. (Specify Length) Units Per Assembly: A.R. Availability: In Stock Price: $16.42
Index No Ref.: Part Number: 091-368936 Description: Glue (Meta Grip #3802) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-199125 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
