Exploded View Parts Ordering: 2013-20_377

2013-20 377 Online Parts Manual

Serial No: 377-77101 End Date 377-001466

Return to manuals

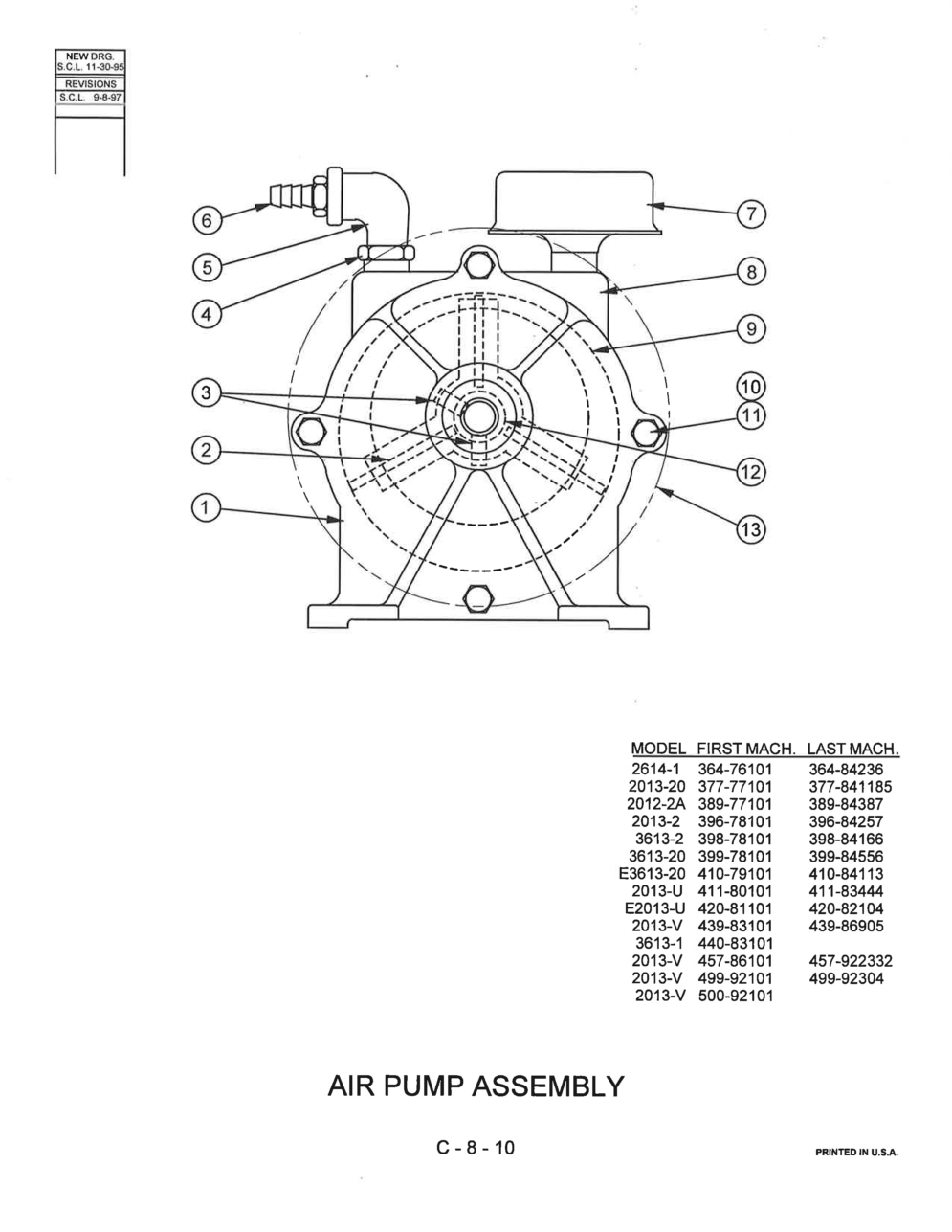

Page Code: C-8-10

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-427089 Description: Air Pump Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 135-067353 Description: Air Pump Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 105-113195 Description: Vane Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-984252 Description: Screw, Soc. Set 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 105-115174 Description: Hex. Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 117-135210 Description: 90 Degree Street Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 090-020041 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 105-115109 Description: Breather Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 135-067361 Description: Air Pump Body Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 105-111041 Description: Rotor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-980086 Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-993741 Description: Washer, Lock 1/4 Shakeproof Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 105-114052 Description: Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 105-113161 Description: Pulley (Not Part of Assembly) Units Per Assembly: 1 Availability: Call For Info Price:
