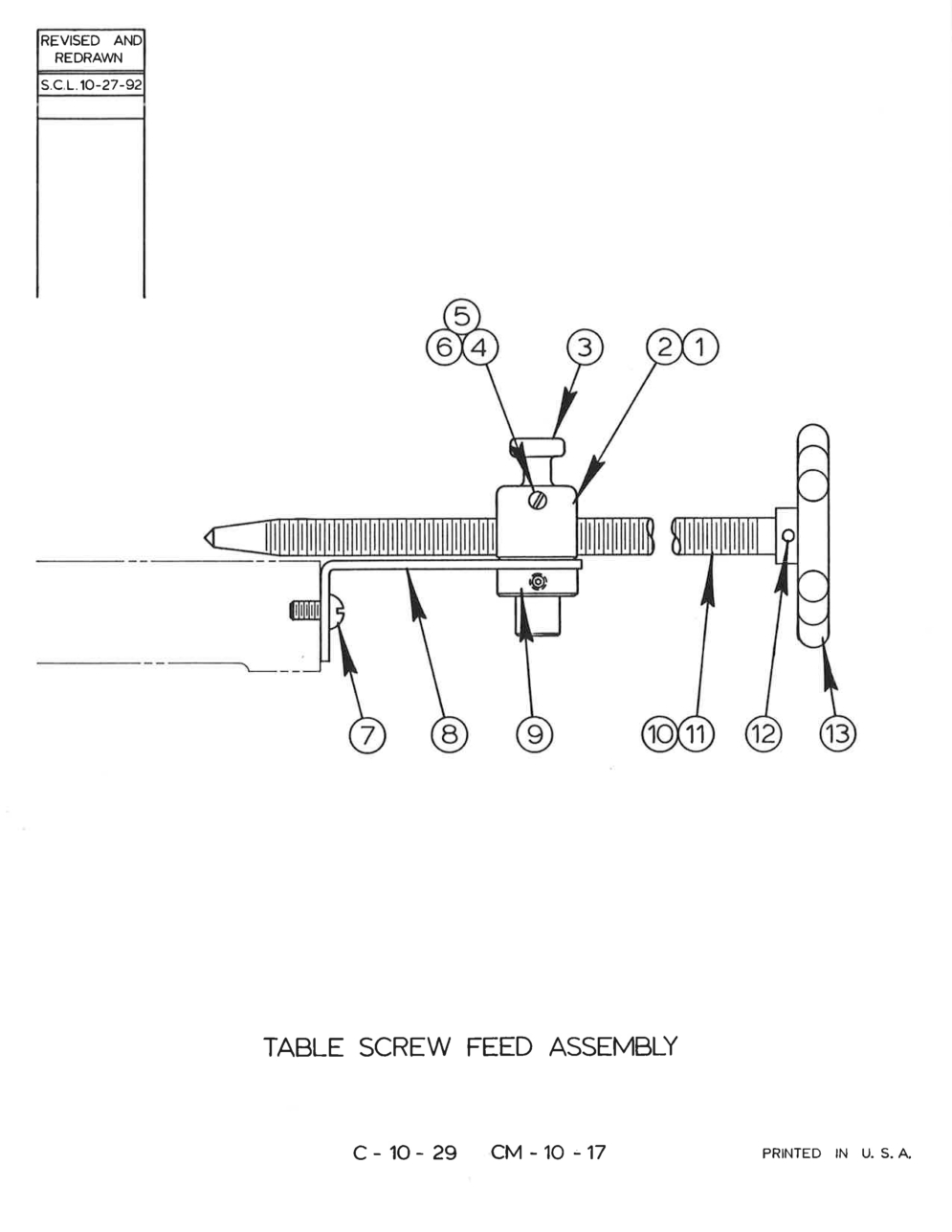

Exploded View Parts Ordering: 2013-20_377
Page Code: C-10-29
Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
Index No Ref.:
Ref.* |
Part Number:
135-062123 |
Description:
Table Screw Feed Assembly |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
1 |
Part Number:
135-052249 |
Description:
Swivel Sub-Assembly |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
2 |
Part Number:
105-034011 |
Description:
Swivel |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
3 |
Part Number:
105-034029 |
Description:
Key |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
4 |
Part Number:
091-988386 |
Description:
Screw, Rd. Hd. Mach. #6-32NC x 1/4 |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
5 |
Part Number:
105-035026 |
Description:
Steel Ball |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
6 |
Part Number:
105-035018 |
Description:
Detent Spring |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
7 |
Part Number:
091-988956 |
Description:
Screw, Rd. Hd. Mach. 1/4-20NC x 1/2 |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
8 |
Part Number:
135-062115 |
Description:
Bracket |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
9 |
Part Number:
106-044159 |
Description:
Set Screw Collar |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
10 |
Part Number:
111-030078 |
Description:
Handwheel And Screw Assembly |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
11 |
Part Number:
111-034013 |
Description:
Feed Screw |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
12 |
Part Number:
090-042557 |
Description:
Roll Pin |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
13 |
Part Number:
105-161020 |
Description:
Handwheel |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
|
Description:
*NOTE: For Models 1613-2, 2613-2, 3613-2, 6013-2, Order 090-454679 Which Is The Same As Above Except It Does Not Use Items #7, #8 or #9. |
