Exploded View Parts Ordering: 2013-20_377

2013-20 377 Online Parts Manual

Serial No: 377-77101 End Date 377-001466

Return to manuals

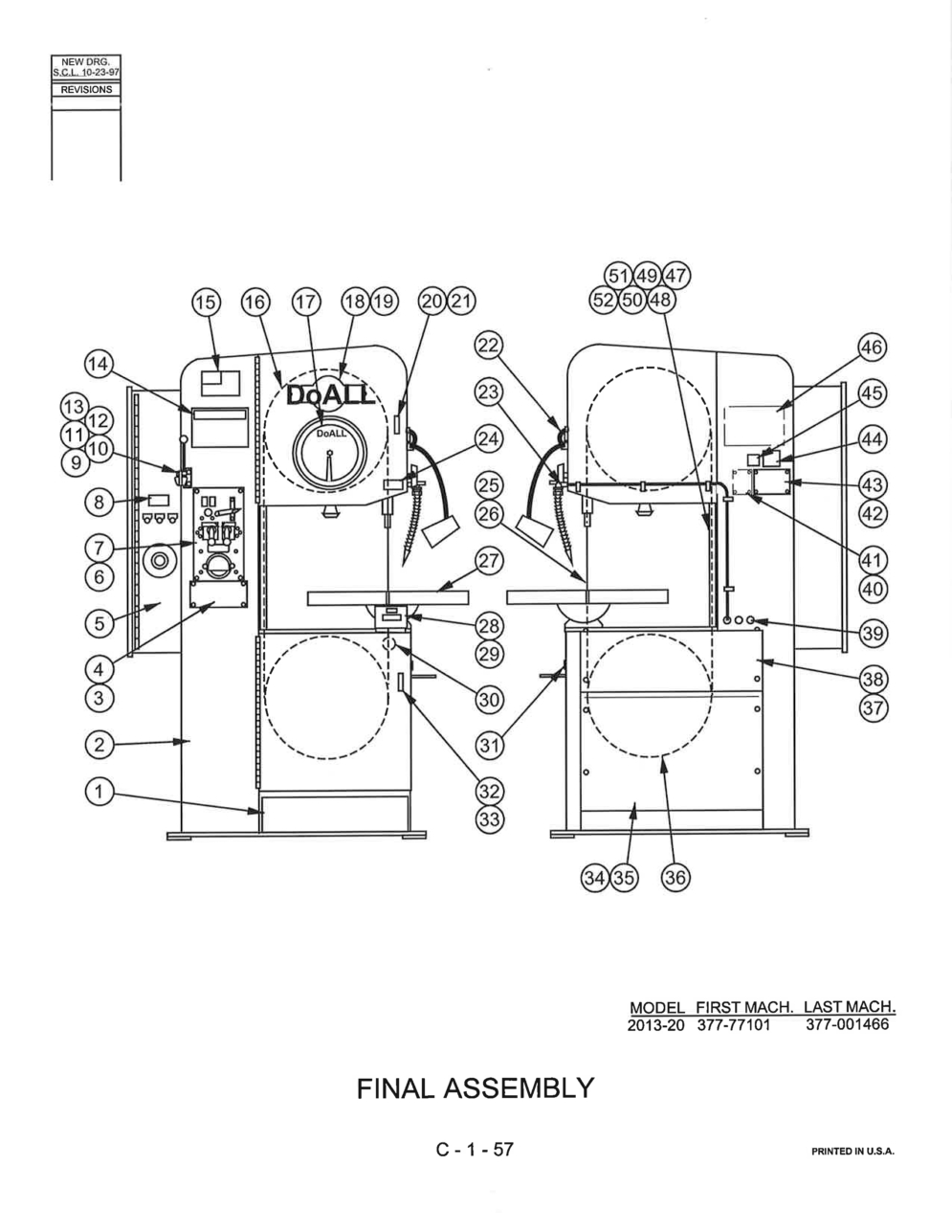

Page Code: C-1-57

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 290100 Description: Final Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 094-045226 Description: Chip Box Weldment (Standard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 084-146216 Description: Chip Box Assembly (Dust Spout Option) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2* Part Number: 095-083291 Description: Frame Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-187039 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-990192 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: Description: Control Box Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: Description: DBW-15 Buttwelder Assembly (See Welder Manual) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-375007 Description: Cover (When Welder Is Not Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-990192 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-458828 Description: Escutcheon (Caution) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-496679 Description: Escutcheon (Caution) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-318071 Description: Blade Shear Assembly (See Welder Manual) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-467209 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-211276 Description: Nutsert 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-980276 Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 094-044765 Description: Escutcheon (Warning) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 092-014695 Description: Decal (American Flag) Units Per Assembly: 1 Availability: In Stock Price: $3.81
Index No Ref.: 16 Part Number: 095-046306 Description: Head Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-468178 Description: Job Selector Assembly (Inch/English) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-060829 Description: Job Selector Assembly (Metric/Intemational) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 095-159075 Description: Job Selector (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 094-140845 Description: Name Plate Units Per Assembly: 1 Availability: In Stock Price: $52.27
Index No Ref.: Part Number: 091-997353 Description: Screw, Flat Hd. Self-Tap #10-24NC x 1/2 (Slotted) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 20** Part Number: 091-727628 Description: Latch Units Per Assembly: 1 Availability: In Stock Price: $94.90
Index No Ref.: 21 Part Number: 091-988535 Description: Screw, Rd. Hd. Mach. #8-32NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 094-061413 Description: Worklamp Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 095-017869 Description: Chip Blower Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-310334 Description: Escutcheon (Warning) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-314088 Description: Escutcheon (Warning) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25* Part Number: 091-715086 Description: Saw Band (Imperial Bi-Metal Super Silencer) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 093-045250 Description: Saw Band Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: Description: Table And Trunnion Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 093-066314 Description: Guard Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-646869 Description: Escutcheon (Remove Bracket) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-636944 Description: Escutcheon (Remove Bracket) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-086017 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31** Part Number: 091-726547 Description: Escutcheon (Caution) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-726554 Description: Escutcheon (Caution) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32** Part Number: 091-727628 Description: Latch Units Per Assembly: 1 Availability: In Stock Price: $94.90
Index No Ref.: 33 Part Number: 091-988535 Description: Screw, Rd. Hd. Mach. #8-32NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 094-111440 Description: Bottom Drive Cover Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-990192 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 095-083820 Description: Drive Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 095-088530 Description: Top Drive Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-980052 Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 135-045284 Description: Plug Button Units Per Assembly: 2 Availability: In Stock Price: $2.80
Index No Ref.: 40 Part Number: 091-288548 Description: Escutcheon (Government Spec's) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-998972 Description: Screw, Rd. Hd. Drive #2 x 1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 093-020568 Description: Escutcheon (Machine Spec's.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 091-993972 Description: Screw, Rd. Hd. Drive #2 x 1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-292730 Description: Escutcheon (Patent No.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 092-066984 Description: CE Label (Europa Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: Description: Lubrication Chart (Optional) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47* Part Number: 094-064011 Description: Saw Band Guard (Column) Units Per Assembly: 1 Availability: In Stock Price: $466.59
Index No Ref.: 48 Part Number: 091-092940 Description: Shim (.065) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 091-983668 Description: Screw, Button Hd. Soc. 1/4-20NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 091-993212 Description: Washer, Lock 1/4 Std. Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 51 Part Number: 091-988972 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 091-992602 Description: Washer, Flat 1/4 S A.E. Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: See Extra Work Height Assembly If Applicable Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 091-671016 Description: Door Interlock Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-068715 Description: Instruction Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-096528 Description: Label (Diameters/X-Section Area) Units Per Assembly: 1 Availability: In Stock Price: $3.81
Index No Ref.: Part Number: 091-700922 Description: Box of Extra Parts Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-041419 Description: Saw Guide Insert Pack (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-280819 Description: H.S. Upper Saw Guide Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-280827 Description: H.S. Lower Saw Guide Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-185000 Description: Upper Saw Guide Holding Screw Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-982462 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-3/4 (Lower Guide) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-108531 Description: Wrench (Table Tilt) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-995688 Description: Hex. Key 3/16" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 071-477913 Description: Instruction Manual Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 071-477921 Description: Parts Manual Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: **NOTE: Item #20 and #32 replaces #091-547802 Lower Handle Assembly, #105-021018 Door Latch, #091-545798 Upper Handle Assembly Before Serial #377-871310 Item #31 Use After Serial #377-971309. Units Per Assembly: Availability: Call For Info Price:
