Exploded View Parts Ordering: 2013-1_338

2013-1 338 Online Parts Manual

Serial No: 338-74101 End Date 338-78245

Return to manuals

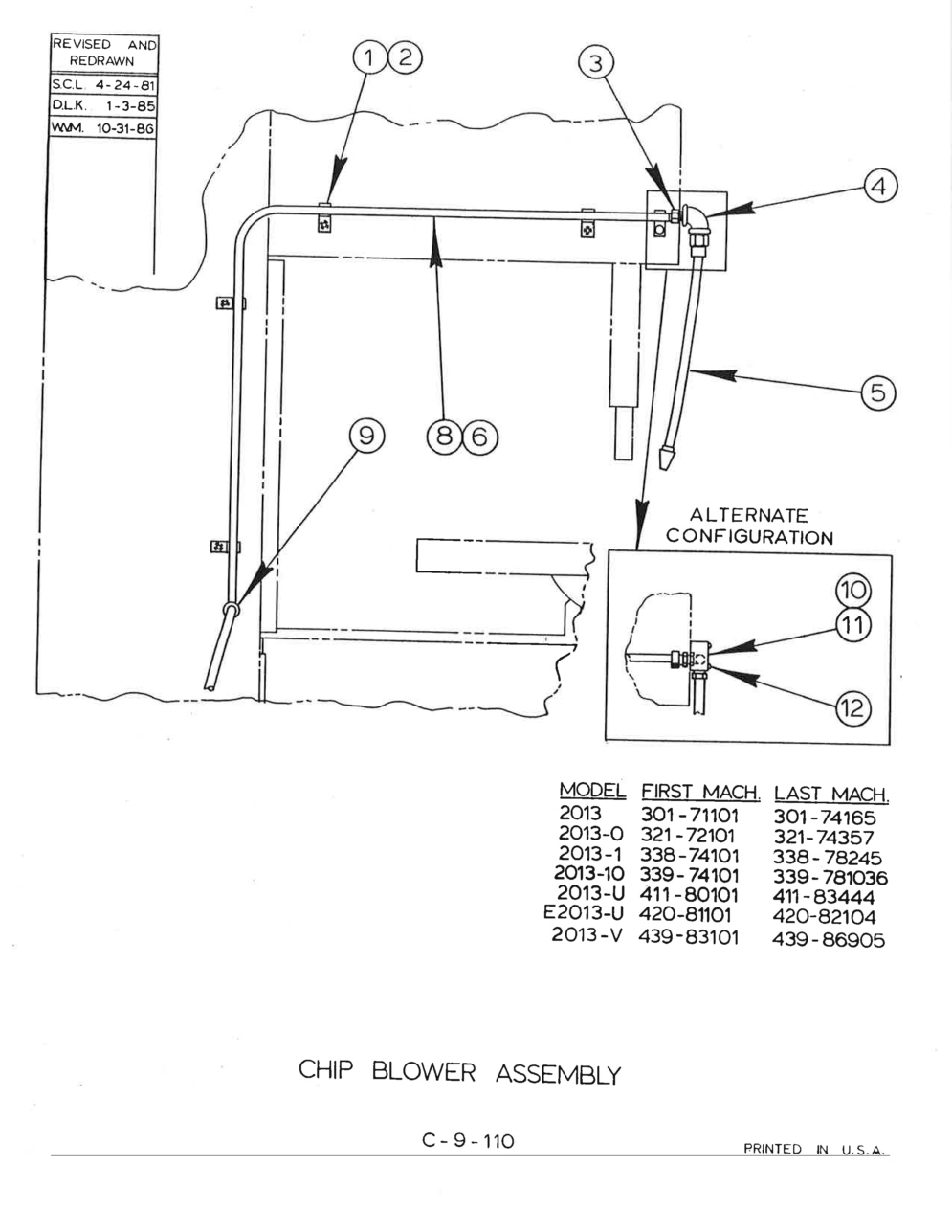

Page Code: C-9-110

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 095-017869 Description: Chip Blower Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-323758 Description: Conduit Strap Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-994848 Description: Screw, Rd. Hd. Self-Tap 1/4-20NC x 1/2 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-281790 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 135-036473 Description: 90 Degree Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-040973 Description: Air Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-970962 Description: Hose 6/8 O.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 135-068880 Description: Hose Clamp Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Alternate Configuration: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-058470 Description: Grommet Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-199109 Description: Manifold Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-203695 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-988782 Description: Screw, Rd. Hd. Mach. #10-24NC x 1-1/2 Units Per Assembly: 2 Availability: Call For Info Price:
