Exploded View Parts Ordering: 2013-1_338

2013-1 338 Online Parts Manual

Serial No: 338-74101 End Date 338-78245

Return to manuals

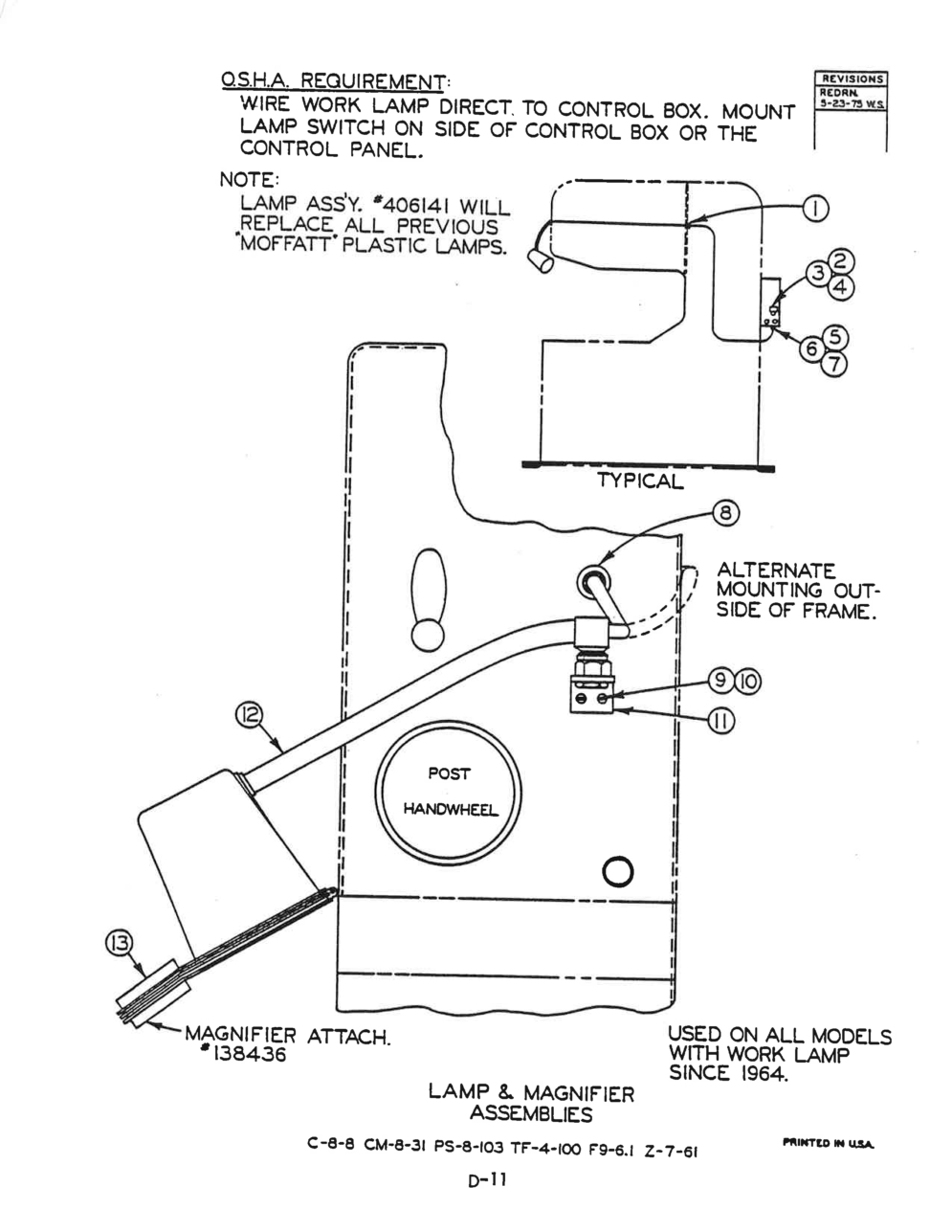

Page Code: C-8-8

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 094-061413 Description: Lamp Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-157454 Description: Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-152455 Description: Selector Switch, 2-Position Units Per Assembly: 1 Availability: In Stock Price: $329.89
Index No Ref.: 3 Part Number: 091-048207 Description: Contact Block Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: 4 Part Number: 091-333591 Description: Legend Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-145459 Description: Cord Grip Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 090-144114 Description: Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-145053 Description: "O"-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-151390 Description: Cord Grip Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-988659 Description: Screw, Rd. Hd. Mach. #10-24NC x 1/4" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-993196 Description: Washer, Lock #10 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-025049 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-384529 Description: Lamp Sub-Assembly, 19" Flexible Cable, 11'-1/2" Connecting Cord Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-384362 Description: Magnifier Attachment, Mounts to Lampshade on Lamp Part #091-384529 Units Per Assembly: 1 Availability: In Stock Price: $170.91
