Exploded View Parts Ordering: 2013-1_338

2013-1 338 Online Parts Manual

Serial No: 338-74101 End Date 338-78245

Return to manuals

Page Code: C-2-61

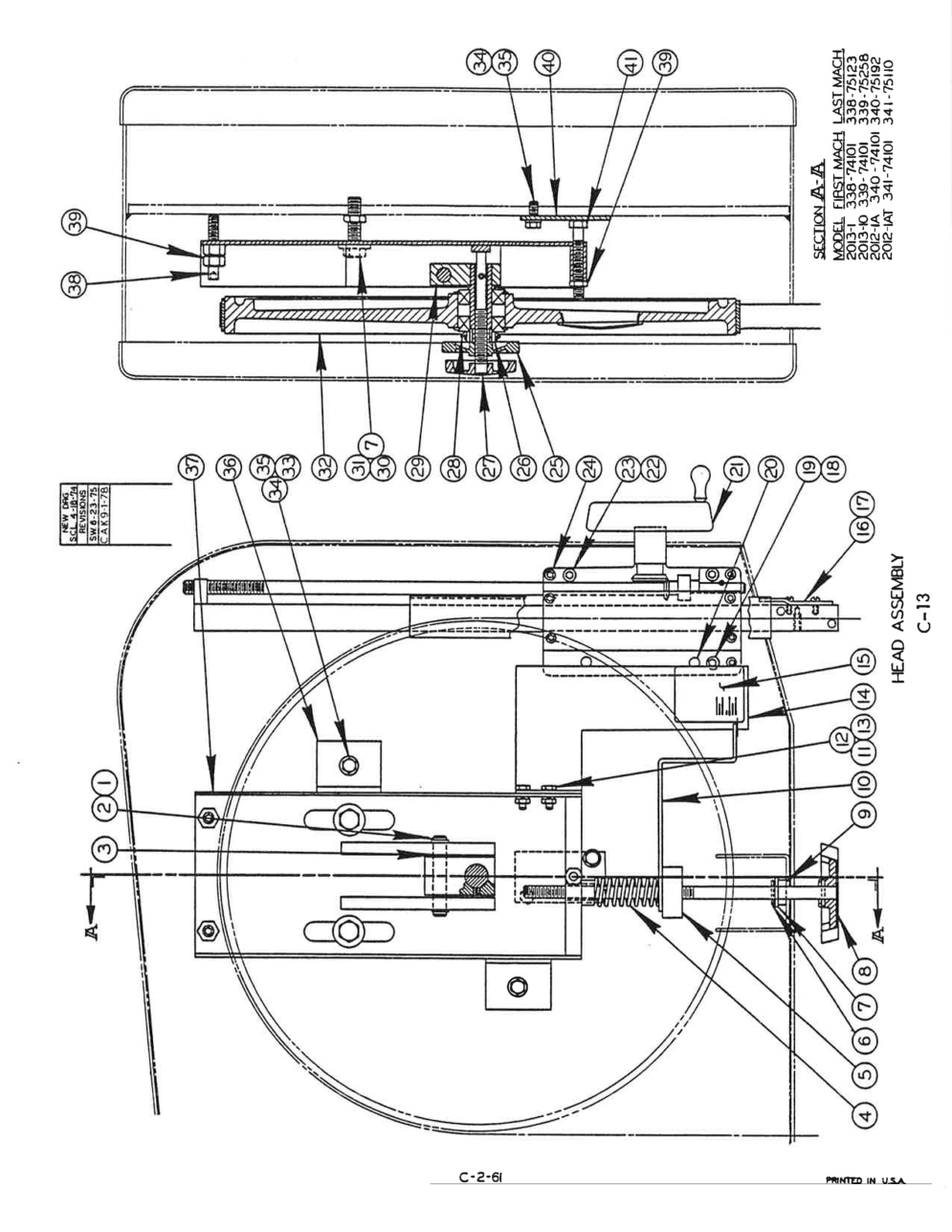

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 503372 Description: Head Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-130063 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 135-096139 Description: Retaining Ring Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 3 Part Number: 091-318139 Description: Shim Option List Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 135-087617 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-230193 Description: Adjuster Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 090-042599 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 7 Part Number: 091-992669 Description: Washer Units Per Assembly: 3 Availability: In Stock Price: $4.20
Index No Ref.: 8 Part Number: 093-020709 Description: Band Tension Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 135-028108 Description: Thrust Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 093-030328 Description: Pointer Weldment Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-980086 Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-991158 Description: Nuy, Hex. 1/4-20NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-993212 Description: Washer, Lock 1/4 Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 14 Part Number: 091-230490 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-230557 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 093-044568 Description: Post Guard Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-986984 Description: Screw, Fit. Hd. Cap #10-24NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-982819 Description: Screw, Soc. Hd. Cap 3/8-16NCx 1 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-993329 Description: Washer, Lock 3/8 Std Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 135-004455 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 094-049715 Description: Post Elevating Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-982876 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 090-051509 Description: Washer, Lock Hi-Collar 3/8 Std Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-218719 Description: Screw, Soc. Set (Self Locking) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 105-011092 Description: Upper Wheel Tilting Locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 105-015069 Description: Bearing Locknut Units Per Assembly: 1 Availability: In Stock Price: $5.17
Index No Ref.: 27 Part Number: 091-306761 Description: Tilting Screw Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 105-015077 Description: Bearing Lockwasher Units Per Assembly: 1 Availability: In Stock Price: $1.67
Index No Ref.: 29 Part Number: 093-023463 Description: Wheel Hinge Sub-Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-980698 Description: Screw, Hex. Hd. Cap 1/2-13NC x 2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-991323 Description: Nut, Hex. Jam 1/2-13NC Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 32 Part Number: 094-025988 Description: Upper Saw Wheel Assembly (See Detail) Units Per Assembly: 1 Availability: In Stock Price: $1,303.01
Index No Ref.: 33 Part Number: 091-992628 Description: Washer, Flat 5/16 Std Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-980276 Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 090-397084 Description: Bracket Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 094-051539 Description: Head Slide Weldment Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-984567 Description: Screw, Soc. Set 3/8-16NC x 2 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-991273 Description: Nut, Hex. Jam 3/8-16NC Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 091-326702 Description: Wear Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-245860 Description: Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 091-391771 Description: Stop Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 093-044659 Description: Guard Slide Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 091-388157 Description: Thumb Nut Units Per Assembly: 2 Availability: Call For Info Price:
