Exploded View Parts Ordering: 2013-1_338

2013-1 338 Online Parts Manual

Serial No: 338-74101 End Date 338-78245

Return to manuals

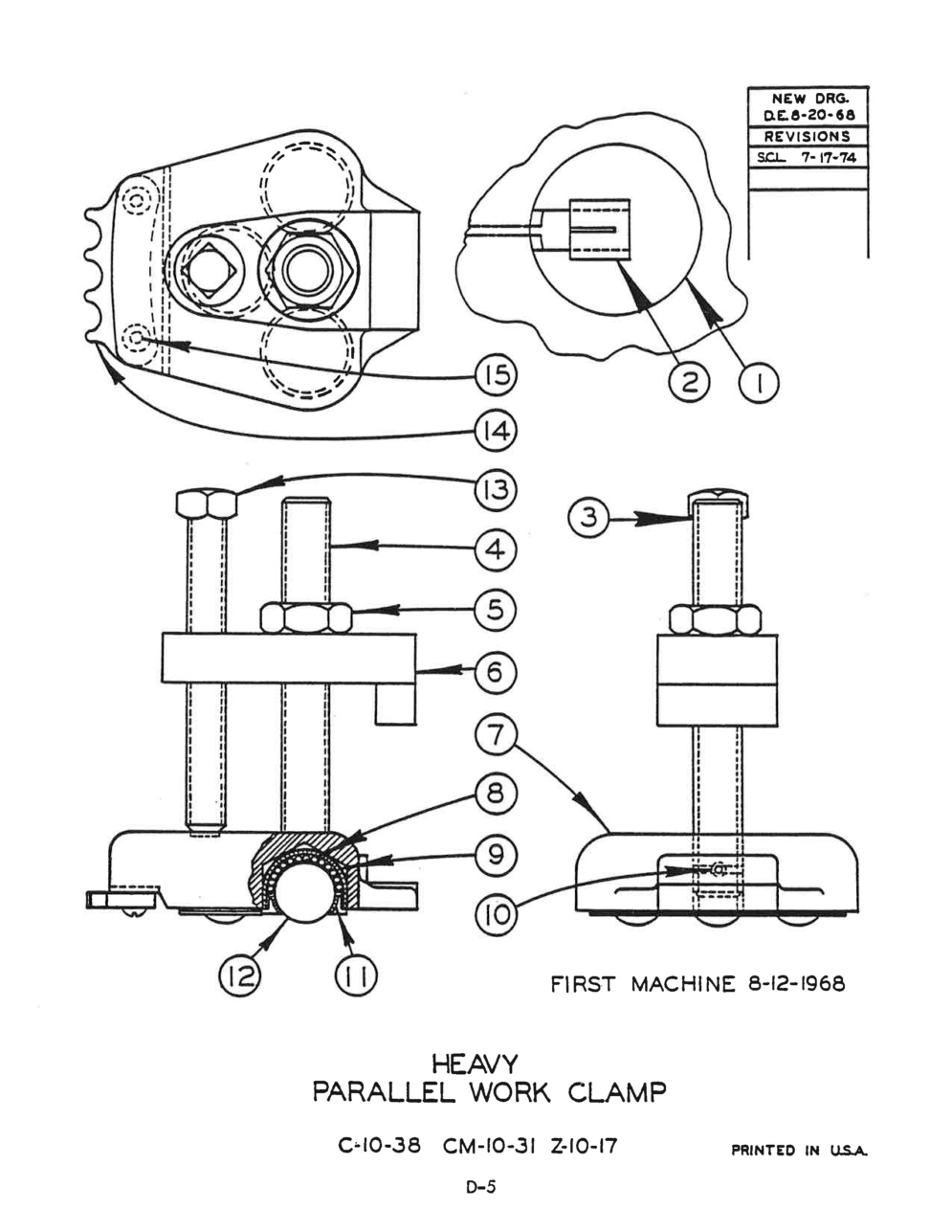

Page Code: C-10-38

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-450099 Description: Parallel Work Clamp Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-279506 Description: Center Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 106-244130 Description: Center Support Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-376294 Description: Parallel Work Clamp Sub-Assembly Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 106-244155 Description: Clamp Stud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-991356 Description: Nut, Hex. 5/8-11NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 106-243074 Description: Parallel Arm Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-376286 Description: Clamp Body Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 106-245053 Description: Steel Ball Units Per Assembly: 195 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 106-243062 Description: Ball Cup Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-984112 Description: Screw, Soc. Set #10-24NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 135-037976 Description: Ball Retainer Ring Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 106-245046 Description: Steel Ball Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 106-245087 Description: Set Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 105-133136 Description: Work Holding Jaw Sprocket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-986893 Description: Screw, Rd. Hd. Mach. #10-24NC x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
