Exploded View Parts Ordering: 2013-1_338

2013-1 338 Online Parts Manual

Serial No: 338-74101 End Date 338-78245

Return to manuals

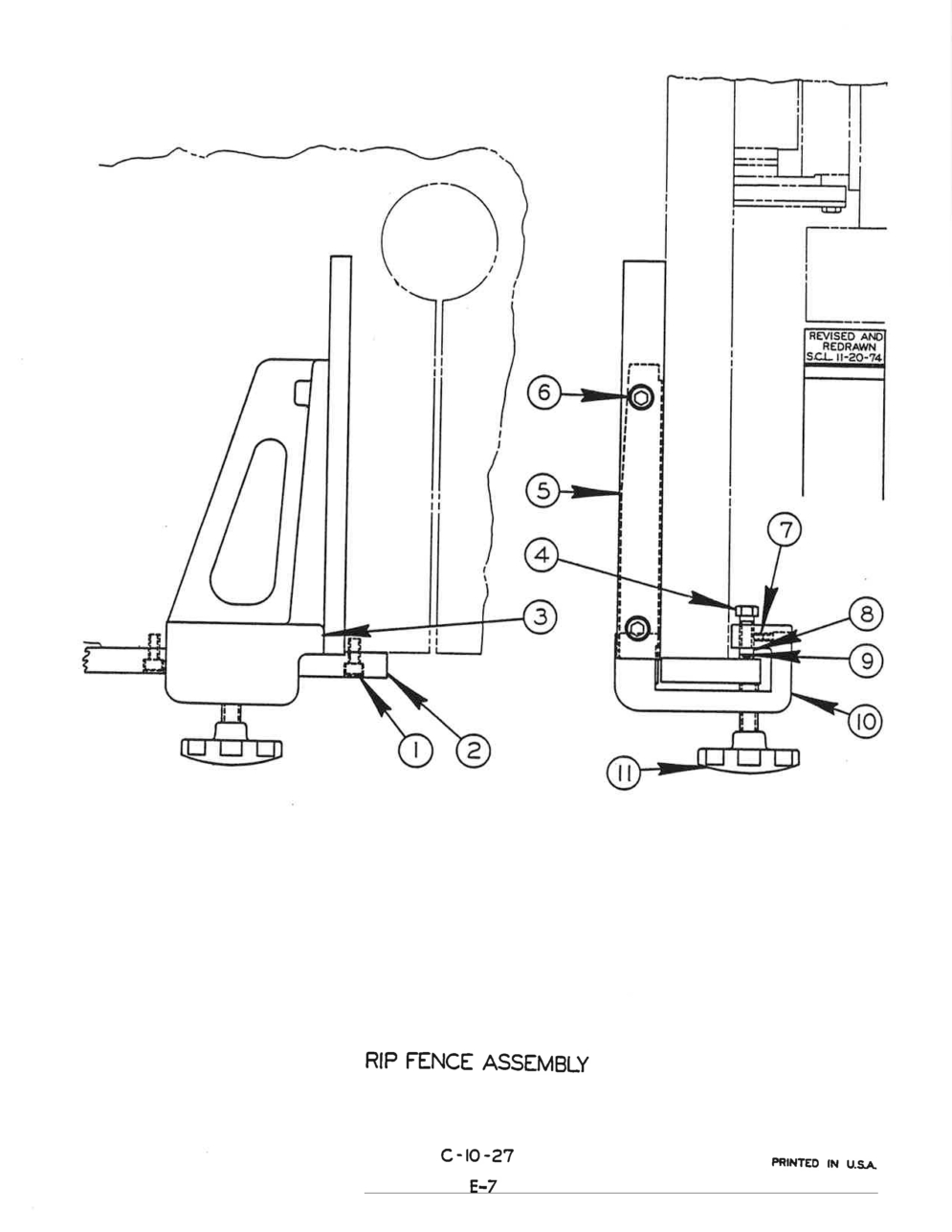

Page Code: C-10-27

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-468976 Description: Rip Fence Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-982785 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-314493 Description: Clamp Guide Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-314501 Description: Rip Fence Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 105-164032 Description: Clamp Bar Screw Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 135-005486 Description: Work Guide Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-982785 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-984252 Description: Screw, Soc. Hd. Set 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 105-163034 Description: Clamp Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 134-065044 Description: Spring Clip Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-468968 Description: Rip Fence Clamp Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 105-160048 Description: Handwheel Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
