Exploded View Parts Ordering: 2013-10_339

2013-10 339 Online Parts Manual

Serial No: 339-74101 End Date 339-781306

Return to manuals

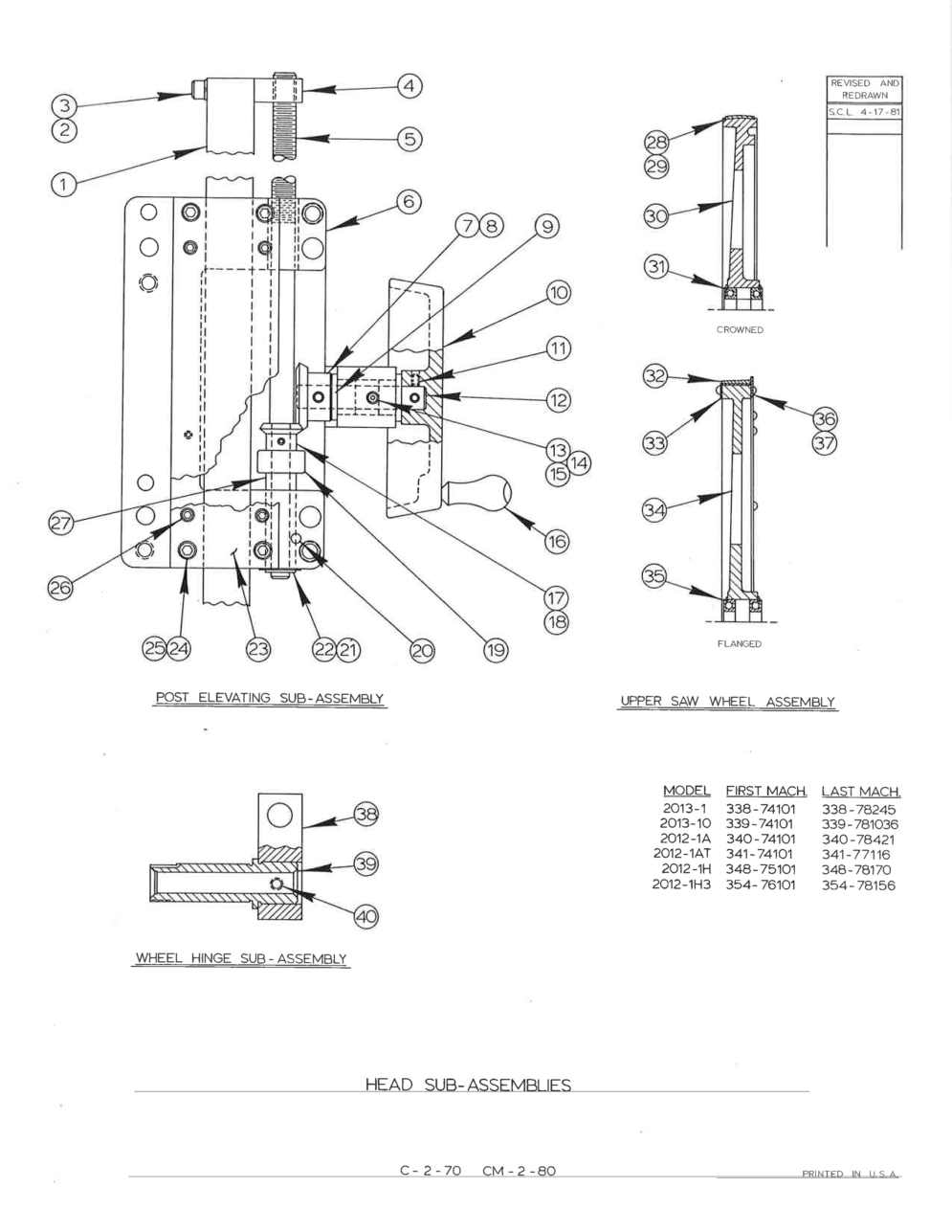

Page Code: C-2-70

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 094-049715 Description: Post Elevating Sub-Assembly (2013-1, 2013-10, 2012-1A, 2012-1H, 2012-1H3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 094-060480 Description: Post Elevating Sub-Assembly (2012-1AT) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 093-030294 Description: Post (Assembly # 094-049715) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-026805 Description: Post (Assembly # 094-060480) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-982454 Description: Screw, Soc. Hd. Cap 1/4 - 20 NC x 1-1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-993741 Description: Washer, Lock 1/4 Shakeproof Ext. (Assembly #094-049715) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-993212 Description: Washer, Lock 1/4 Std. (Assembly #094-060480) Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 4 Part Number: 091-326660 Description: Nut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-326678 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 094-049707 Description: Housing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-255679 Description: Bevel Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-042599 Description: Roll Pin Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 9 Part Number: 091-209221 Description: Bearing (Assembly #094-049715) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-331140 Description: Bushing (Assembly #094-060480) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-386434 Description: Handwheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-984104 Description: Screw, Soc. Set #10 - 24 NC x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-239012 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-984229 Description: Screw, Soc. Set 1/4 - 20 NC x 1/4 (Assembly #094-049715) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-407650 Description: Friction Plug (Assembly # 094-049715) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 090-039710 Description: Spring (Assembly # 094-049715) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-046904 Description: Handle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-255661 Description: Bevel Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-042409 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 19 Part Number: 090-160631 Description: Thrust Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-042631 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 21 Part Number: 091-307512 Description: Grip Ring(Assembly #094-049715) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-032764 Description: Retaining Ring (Assembly #094-060480) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 105-133094 Description: Pulley Spacer (Assembly #094-049715) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 106-043128 Description: Spacer (Assembly #094-060480) Units Per Assembly: 2 Availability: In Stock Price: $4.82
Index No Ref.: 23 Part Number: 093-030302 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-982421 Description: Screw, Soc. Hd. Cap 1/4 - 20 NC x 1 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 25 Part Number: 091-993741 Description: Washer, Lock 1/4 Shakeproof Ext. (Assembly #094-060480) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-985762 Description: Screw, Soc. Set 5/16 - 18 NC x 3/4 (Flat Pt.) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-331132 Description: Tubing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 094-025988 Description: UPPER SAW WHEEL ASSEMBLY (CROWNED) Units Per Assembly: Availability: In Stock Price: $1,303.01
Index No Ref.: 28 Part Number: 091-253575 Description: Tire Units Per Assembly: 1 Availability: In Stock Price: $102.00
Index No Ref.: 29 Part Number: 134-015031 Description: Wheel Tire Cement Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 094-025970 Description: Upper Saw Wheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 105-015085 Description: Wheel Bearing Units Per Assembly: 2 Availability: In Stock Price: $24.52
Index No Ref.: Ref. Part Number: 094-065588 Description: UPPER SAW WHEEL ASSEMBLY (FLANGED) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 093-050300 Description: Tire and Rim Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 090-046756 Description: Retainer Units Per Assembly: 2 Availability: In Stock Price: $17.45
Index No Ref.: 34 Part Number: 094-064581 Description: Upper Saw Wheel (Standard) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-067212 Description: Upper Saw Wheel (3/4" Metal Faced) (2012-2H, 2012-2H3 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-067196 Description: Upper Saw Wheel (1" Metal Faced) (2012-2H, 2012-2H3 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 105-015085 Description: Wheel Bearing Units Per Assembly: 2 Availability: In Stock Price: $24.52
Index No Ref.: 36 Part Number: 093-047322 Description: Flange Segment Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10 - 24 NC x 3/8 Units Per Assembly: 22 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 093-023463 Description: WHEEL HINGE SUB-ASSEMBLY Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-206243 Description: Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 105-014245 Description: Axis Stud Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 091-984237 Description: Screw, Soc. Set 1/4 - 20 NC x 5/16 Units Per Assembly: 1 Availability: Call For Info Price:
