Exploded View Parts Ordering: 2013-0_321

2013-0 321 Online Parts Manual

Serial No: 321-72101 End Date 321-74357

Return to manuals

Page Code: C-4-40

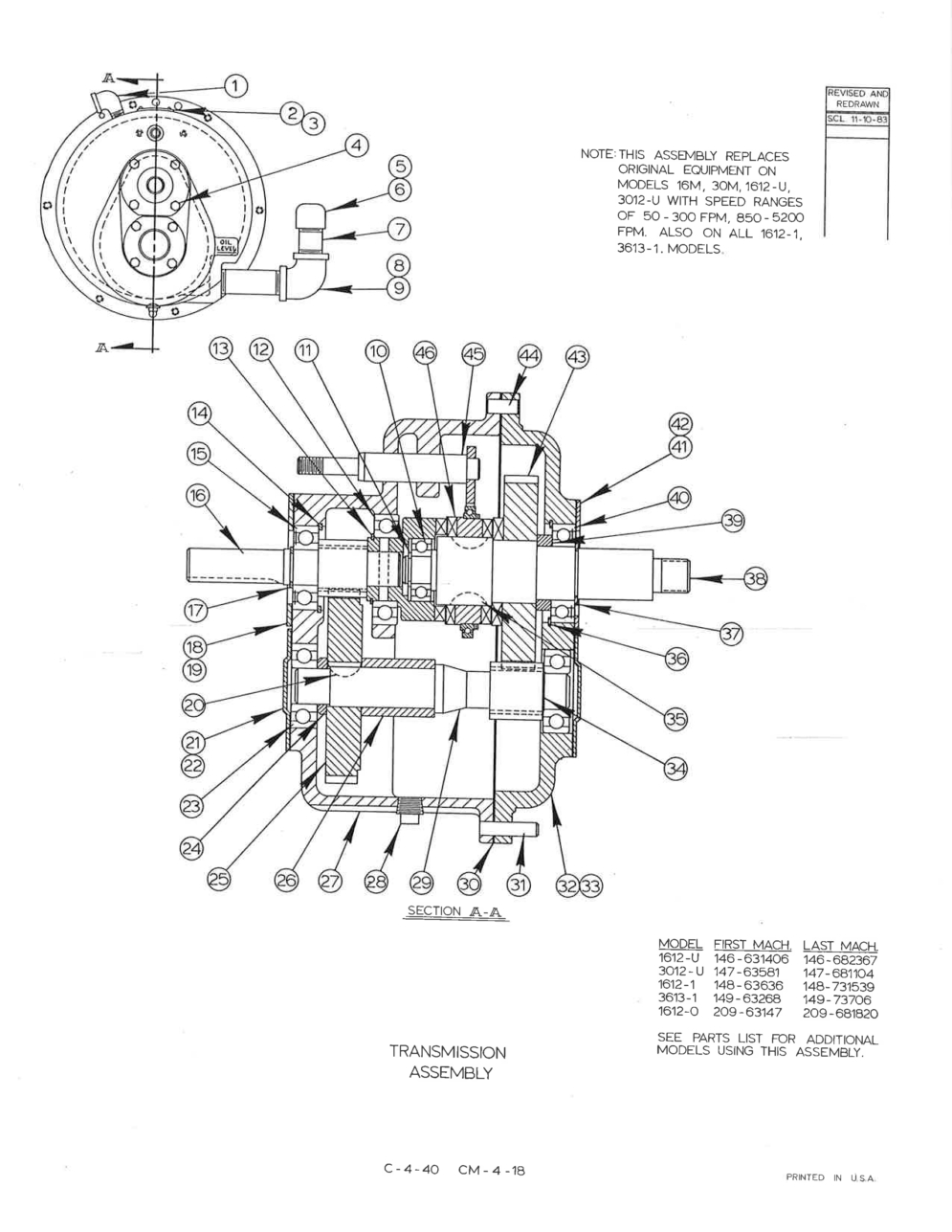

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-559972 Description: Transmission Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 117-135210 Description: 90 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-364455 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-993964 Description: Screw, Rd. Hd. Mach, #2 x 3/16 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-980052 Description: Screw, Hew. Hd. Cap 1/4-20NC x 3/8 Units Per Assembly: 16 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-110693 Description: Pipe Cap (3/4" NPT) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-060088 Description: Pipe Cap (1/2" NPT) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-384420 Description: Gear Oil (Not Shown) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-059056 Description: Pipe Nipple (3/4" NPT) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-052580 Description: Pipe Nipple (1/2" NPT) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 105-046171 Description: 90 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 114-003486 Description: 90 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-135277 Description: Pipe Nipple (3/4" NPT) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-052580 Description: Pipe Nipple (1/2" NPT) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-057497 Description: Ball Bearing Units Per Assembly: 1 Availability: In Stock Price: $25.50
Index No Ref.: 11 Part Number: 091-041640 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 12 Part Number: 090-022732 Description: Ball Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 135-075380 Description: Retaining Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 135-081891 Description: Retaining Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-001222 Description: Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-317389 Description: Input Shaft Assembly Units Per Assembly: 1 Availability: In Stock Price: $840.00
Index No Ref.: Part Number: 090-317371 Description: Input Shaft and Clutch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-042389 Description: Roll Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-317355 Description: Clutch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 135-086643 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 18 Part Number: 091-056887 Description: Cover Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-056895 Description: Gasket Units Per Assembly: 1 Availability: In Stock Price: $9.67
Index No Ref.: 20 Part Number: 105-046023 Description: Woodruff Key Units Per Assembly: 1 Availability: In Stock Price: $2.79
Index No Ref.: 21 Part Number: 105-043038 Description: Countershaft Bearing Cover Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 105-043095 Description: Gasket Units Per Assembly: 2 Availability: In Stock Price: $1.39
Index No Ref.: 23 Part Number: 091-085571 Description: Bearing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-032359 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 105-044242 Description: Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-027268 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 090-548710 Description: Transmission Case Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 105-046122 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 090-292699 Description: Countershaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 105-043111 Description: Gasket Units Per Assembly: 1 Availability: In Stock Price: $3.76
Index No Ref.: 31 Part Number: 105-044127 Description: Dowel Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *32 Part Number: 090-470469 Description: Transmission Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-987685 Description: Screw, Flat Hd Mach. 5/16-1BNC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-057000 Description: Shim (.005) Units Per Assembly: 2 Availability: In Stock Price: $12.09
Index No Ref.: 35 Part Number: 135-071926 Description: Woodruff Key Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 36 Part Number: 091-057091 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $3.73
Index No Ref.: 37 Part Number: 091-090662 Description: Retaining Ring Units Per Assembly: 1 Availability: In Stock Price: $1.48
Index No Ref.: 38 Part Number: 090-317330 Description: Output Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-056861 Description: Spacer Units Per Assembly: 1 Availability: In Stock Price: $67.37
Index No Ref.: 40 Part Number: 091-056994 Description: Ball Bearing Units Per Assembly: 1 Availability: In Stock Price: $151.42
Index No Ref.: 41 Part Number: 091-056903 Description: Cover Plate Units Per Assembly: 1 Availability: In Stock Price: $22.31
Index No Ref.: 42 Part Number: 091-056911 Description: Gasket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 106-044217 Description: Clutch Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 105-044150 Description: Dowel Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 091-114496 Description: Shifter Fork Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-114462 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-114488 Description: Yoke Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 091-114512 Description: Shifter Clutch Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-468218 Description: Shifter Clutch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-114504 Description: Ball Bearing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-042094 Description: Roll Pin Units Per Assembly: 3 Availability: In Stock Price: $1.28
Index No Ref.: Part Number: Description: *NOTE: When Ordering Transmission Cover, Order #5, #7, #8, #9 1/2" NPT Fittings Also If You Don't Have 3/4" NPT Fitting Already. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: This Assembly Used On Models: 1611-U, 1611-H, 1616, 1612-H, 1612-0, 2013, 2013-1, 2013-0, 2013-10, 2012-A, 2012-AT, 2012-1AT, 2012-1H, 3612-U, 3612, 3613-0, 3612-H, 3612-1, 3613-10, 3612-1H. Units Per Assembly: Availability: Call For Info Price:
