Exploded View Parts Ordering: 2013-0_321

2013-0 321 Online Parts Manual

Serial No: 321-72101 End Date 321-74357

Return to manuals

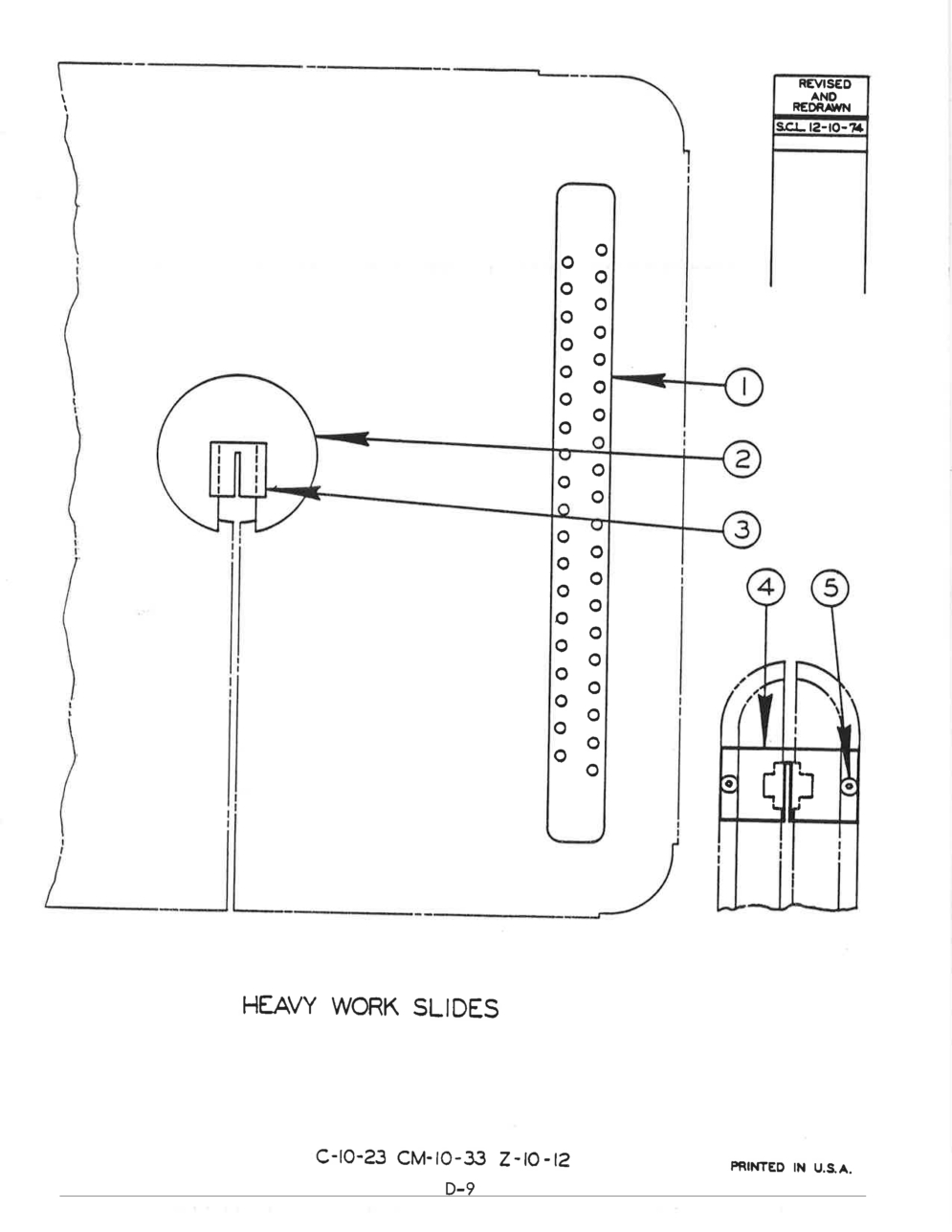

Page Code: C-10-23

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-450040 Description: Heavy Work Support Assembly (1612, 1612-0, 1612-1, 2013, 2013-0, 2013-10, 2612-1, 2614-1, 3612, 3612-1, 3613-0, 3613-10, 3613-1, 2013-1) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 135-052470 Description: Heavy Work Support Assembly (1613-2, 2613-2, 3613-2, 6013-2, ZS-3620, ZV-3620, ZW-3620) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 094-006921 Description: Heavy Work Slide Assembly (2612-2H) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 106-233190 Description: Work Transport Bar Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-279506 Description: Center Plate (Assembly #090-450040 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 106-234529 Description: Center Support (Assemblies #090-450040 & 135-052470) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-178145 Description: Center Support (Assembly #094-006921 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-983205 Description: Screw, El Hd. Soc. Cap 1/4-20NC x 3/4 (Assembly #094-006921 Only) Units Per Assembly: 2 Availability: Call For Info Price:
