Exploded View Parts Ordering: 2012-VH_544

2012-VH 544 Online Parts Manual

Serial No: 544-99101 End Date 544-03125

Return to manuals

Page Code: CM-6-39

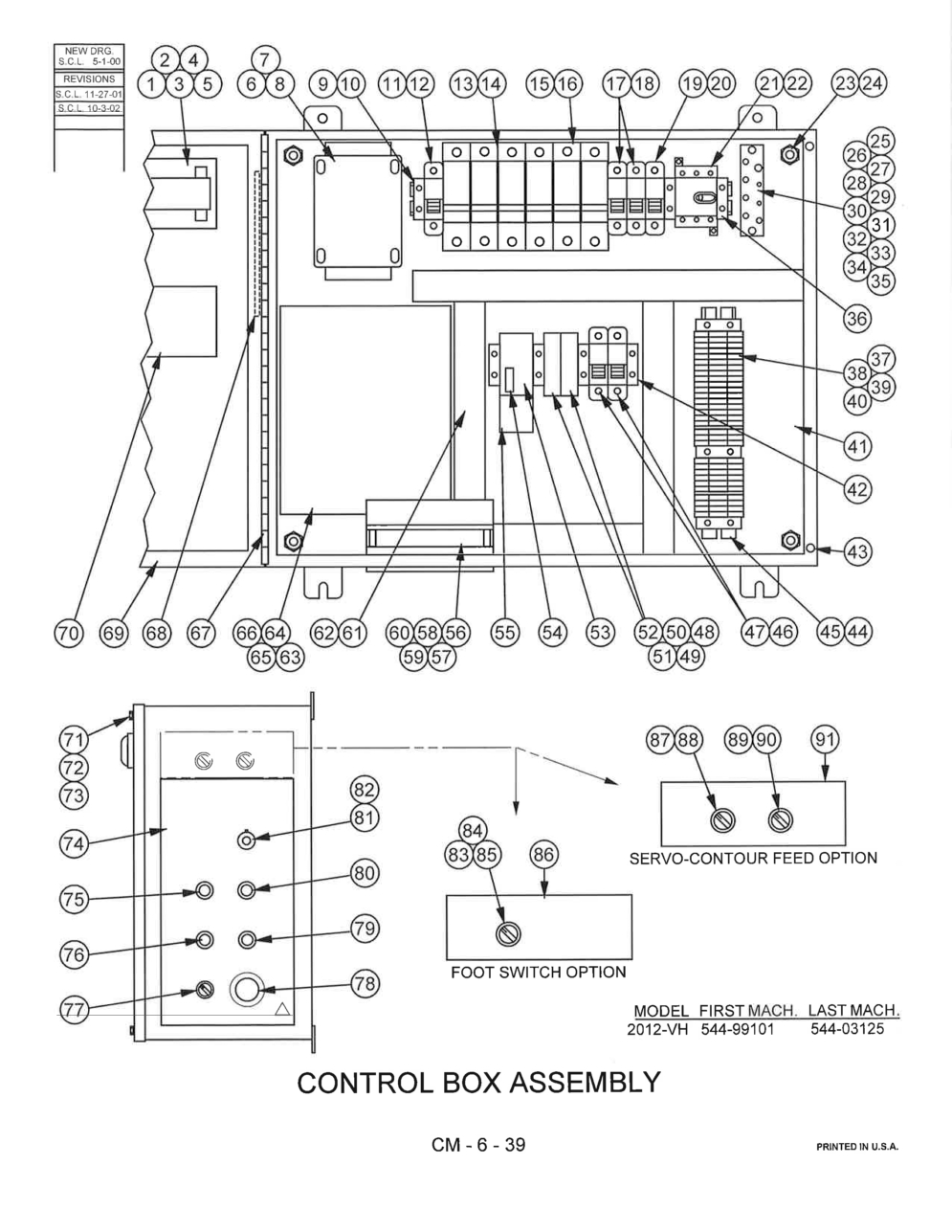

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Control Box Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 092-087287 Description: Mounting Bracket Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2* Part Number: 092-077864 Description: Resistor (40 Ohm) (208V, 230V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-193309 Description: Resistor (160 Ohm) (380V-415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 092-087196 Description: Resistor Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-991885 Description: Nut, Hex. M6 x 1.0 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-993477 Description: Washer, Lock M6 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 093-200798 Description: Transformer (208V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-200780 Description: Transformer (230V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-177534 Description: Transformer (380V-415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-992024 Description: Nut, Hex. M5 x 0.8 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 8 Part Number: 091-993485 Description: Washer, Lock M5 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-696740 Description: Mounting Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-999748 Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 Units Per Assembly: A.R. Availability: In Stock Price: $0.20
Index No Ref.: 11* Part Number: 092-152123 Description: Fuse Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12* Part Number: 092-031590 Description: Fuse (2.5 Amp) (208V, 230V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-031582 Description: Fuse (1 Amp) (380V-415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 092-152149 Description: Fuse Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-203932** Description: Circuit Breaker (380V-415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 092-075613 Description: Fuse (20 Amp) (208V, 575V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-075621 Description: Fuse (17.5 Amp) (230V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-128636 Description: Fuse (10 Amp) (380V-415V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-156264 Description: Fuse (9 Amp) (460V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 092-152149 Description: Fuse Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-203916** Description: Circuit Breaker (380V-415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 092-158351 Description: Fuse (12 Amp) (208V, 575V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-128636 Description: Fuse (10 Amp) (230V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-155423 Description: Fuse (6 Amp) (380V-415V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-125947 Description: Fuse (5 Amp) (460V) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 092-152123 Description: Fuse Block Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-203718** Description: Circuit Breaker (380V-415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 092-053263 Description: Fuse (3 Amp) (208V, 575V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-031590 Description: Fuse (2.5 Amp) (230V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-053271 Description: Fuse (1.5 Amp) (380V-415V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-034545 Description: Fuse (1.3 Amp) (460V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 092-152123 Description: Fuse Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-203569** Description: Circuit Breaker (380V-415V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 092-067032 Description: Fuse (1.8 Amp) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 092-144187 Description: Disconnect Switch Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-990549 Description: Screw, Pan Hd. Slotted M4 x 0.7 x 8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-993253 Description: Washer, Lock 3/8 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 093-207405 Description: Grounding Bus Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-989624 Description: Screw, Pan Hd. Slotted M6 x 1.0 x 16 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-391941 Description: Wire Terminal Lug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 092-152032 Description: Screw, Pan Hd. Slotted M6 x 1.0 x 8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 092-152016 Description: Screw, Pan Hd. Slotted M4 x 0.7 x 6 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-992487 Description: Washer, Flat M4 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 31 Part Number: 091-993659 Description: Washer, Lock #8 Shakeproof Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 092-152024 Description: Screw, Pan Hd. Slotted M5 x 0.8 x 6 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-992446 Description: Washer, Flat M5 Units Per Assembly: 5 Availability: In Stock Price: $4.20
Index No Ref.: 34 Part Number: 091-993113 Description: Washer, Lock M6 Shakeproof Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-993550 Description: Washer, Lock #10 Shakeproof Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 092-006188 Description: End Stop Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 092-006154 Description: Terminal Block Units Per Assembly: 30 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 092-006170 Description: End Section Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 092-006188 Description: End Stop Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 092-009943 Description: Terminal Block Marker Set Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 095-201414 Description: Control Panel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 092-006188 Description: End Stop Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 092-075258 Description: Nut, Rivet M6 x 1.0 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-696740 Description: Mounting Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 091-999748 Description: Screw, Button Hd. Soc. M5 x 0.8 x 10 Units Per Assembly: A.R. Availability: In Stock Price: $0.20
Index No Ref.: 46 Part Number: 092-152123 Description: Fuse Block (208V, 575V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-156272 Description: Fuse Block (230V, 380V-415V, 460V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 092-060342 Description: Fuse (12 Amp) (208V, 575V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-757674 Description: Fuse (12 Amp) (230V, 380V-415V, 460V) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 092-099373 Description: Control Relay Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 092-099399 Description: Relay Socket Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 092-099423 Description: Relay Retaining Clip Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 092-099415 Description: Relay LED Indicator Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 092-099431 Description: Relay Marking Tag Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 092-072075 Description: Contactor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 092-072198 Description: Auxilliary Contact Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 092-072933 Description: Overload Relay (208V, 575V) Units Per Assembly: 1 Availability: In Stock Price: $88.47
Index No Ref.: Part Number: 092-072925 Description: Overload Relay (230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-072917 Description: Overload Relay (380V-415V) Units Per Assembly: 1 Availability: In Stock Price: $87.10
Index No Ref.: Part Number: 092-072909 Description: Overload Relay (460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 092-087980 Description: Fan (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: 092-087998 Description: Fan Cover (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: 092-088004 Description: Fan Lead Wire (If Supplied) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 092-151810 Description: Screw, Flat Hd. Slotted M4 x 0.7 x 12 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 60 Part Number: 092-151828 Description: Screw, Flat Hd. Slotted M4 x 0.7 x 25 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 61 Part Number: 091-972083 Description: 1" Wiring Channel Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 62 Part Number: 091-972109 Description: 1" Wiring Channel Cover Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 63* Part Number: 092-191709 Description: Variable Speed Controller (208V, 230V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-191717 Description: Variable Speed Controller (380V-415V, 460V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 64 Part Number: 091-995571 Description: Screw, Pan Hd. Slotted M5 x 0.8 x 12 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 65 Part Number: 091-992446 Description: Washer, Flat M5 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 66 Part Number: 091-993550 Description: Washer, Lock #10 Shakeproof Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 67 Part Number: 095-201398 Description: Enclosure Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 68 Part Number: 092-087998 Description: Fan Cover (If Supplied) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 69 Part Number: 092-039254 Description: Gasket strip Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 70 Part Number: 093-241669 Description: Fuse/Overload Schedule Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 71 Part Number: 092-075233 Description: Screw, Hex. Hd. Slotted M6 x 1.0 x 20 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 72 Part Number: 092-041532 Description: Nylon Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 73 Part Number: 092-041516 Description: Retainer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 74 Part Number: 094-199866 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 75 Part Number: 092-114917 Description: Pushbutton Assembly (Green) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 76 Part Number: 092-118926 Description: Pushbutton Assembly (Red) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 77 Part Number: 092-111111 Description: Selector Switch (2 Position) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-351064 Description: Hole Seal (No Worklamp) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 78 Part Number: 092-077882 Description: Emergency Stop Pushbutton Ass'y Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 79 Part Number: 092-118926 Description: Pushbutton Assembly (Red) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 80 Part Number: 092-114917 Description: Pushbutton Assembly (Green) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 81 Part Number: 091-782755 Description: Potentiometer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 82 Part Number: 092-037324 Description: Potentiometer Operator Kit Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: For Foot Switch Option: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 83 Part Number: 092-071828 Description: Selector Switch (3 Position) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 84 Part Number: 092-071851 Description: Contact Block (1-NO) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 85 Part Number: 092-071869 Description: Contact Block (1-NC) Units Per Assembly: 2 Availability: In Stock Price: $24.99
Index No Ref.: 86 Part Number: 094-199882 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: For Servo-Contour FeedOption: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 87 Part Number: 092-071810 Description: Selector Switch (2 Position) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 88 Part Number: 092-071877 Description: Contact Block (1-NO, 1-NC) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 89 Part Number: 092-071810 Description: Selector Switch (2 Position) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 90 Part Number: 092-071869 Description: Contact Block (1-NC) Units Per Assembly: 1 Availability: In Stock Price: $24.99
Index No Ref.: 91 Part Number: 094-199874 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 091-973412 Description: Wire, #12 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971960 Description: Wire, #16 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-973255 Description: Wire, #16 White (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971978 Description: Wire, #16 White (19 Strand) Units Per Assembly: A.R. Availability: In Stock Price: $3.10
Index No Ref.: Part Number: 091-973438 Description: Wire, #16 Green/Yellow (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-972059 Description: Wire, #18 Blue (16 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-972794 Description: Wire, #18 White (16 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: For Altivar 18 Variable Speed Controller: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 092-149699 Description: Resistor (30 Ohm) (208V, 230V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-149707 Description: Resistor (120 Ohm) (380V-415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 63 Part Number: 092-128446 Description: Variable Speed Controller (208V, 230V, 575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-149426 Description: Variable Speed Controller (380V-415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: **NOTE: Before Serial #544-02120, 380V-415V Machines Used Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: The Fuses and Fuse Blocks Listed. Units Per Assembly: Availability: Call For Info Price:
