Exploded View Parts Ordering: 2012-VH_544

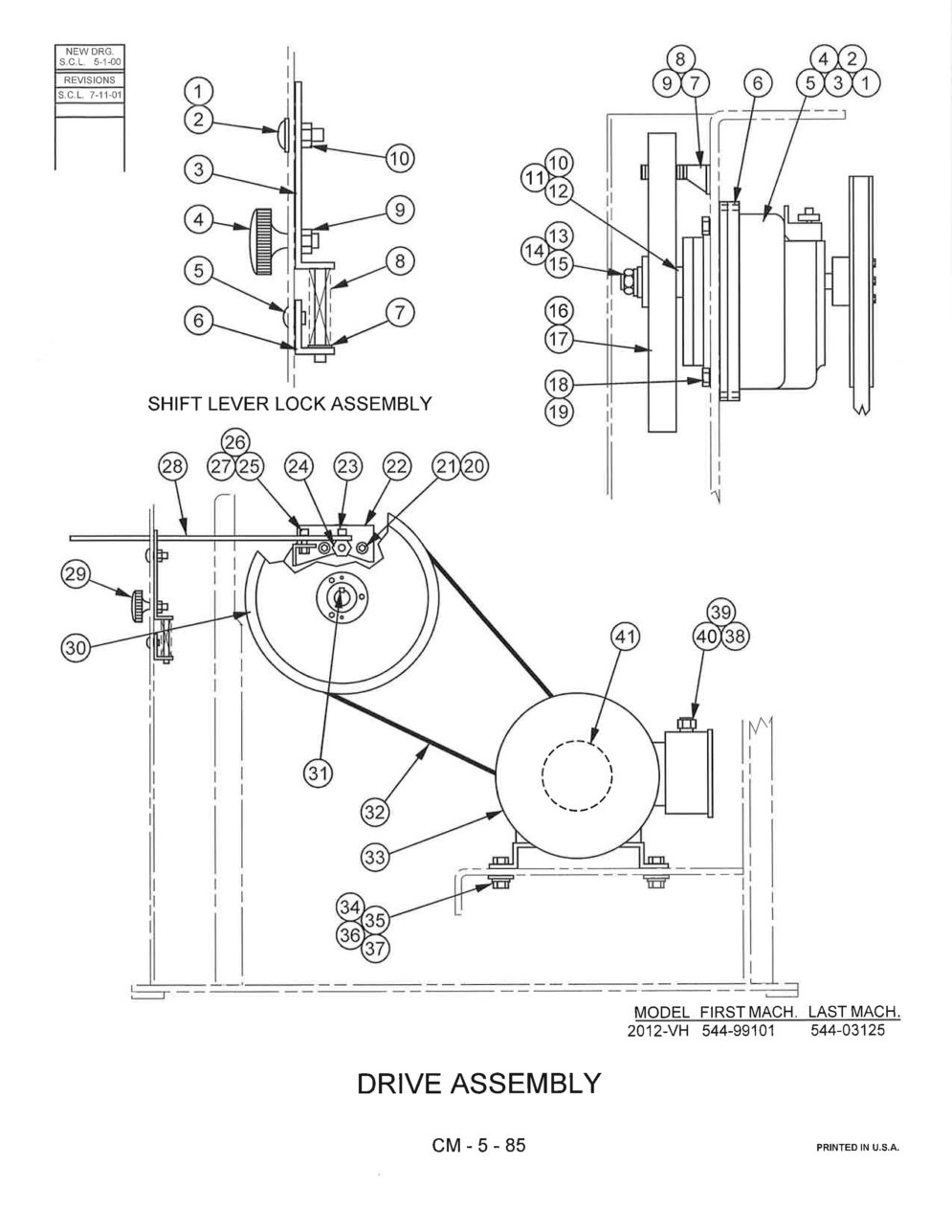

2012-VH 544 Online Parts Manual

Serial No: 544-99101 End Date 544-03125

Return to manuals

Page Code: CM-5-85

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 092-155753 Description: Drive Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 095-068276 Description: Transmission Assembly (See Detail) Units Per Assembly: 1 Availability: In Stock Price: $4,532.03
Index No Ref.: 2 Part Number: 091-335703 Description: Shim (.005) Units Per Assembly: A.R. Availability: In Stock Price: $4.20
Index No Ref.: 3 Part Number: 091-335711 Description: Shim (.008) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-335729 Description: Shim (.010) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-335737 Description: Shim (.020) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 135-066959 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-166646 Description: Brush Holder Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-166844 Description: Wheel Brush Units Per Assembly: 1 Availability: In Stock Price: $6.98
Index No Ref.: 9 Part Number: 091-990200 Description: Screw, Pan Hd. Mach. 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-333161 Description: Spacer (.014/.016) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-333179 Description: Spacer (.028/.032) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-333187 Description: Spacer (.127/.143) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-991406 Description: Nut, Hex. Jam 3/4-10NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 14 Part Number: 091-993782 Description: Washer, Lock 3/4 Shakeproof Ext. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-992685 Description: Washer, Flat 3/4 S.A.E. Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 094-089455 Description: Bandwheel Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 105-046049 Description: Woodruff Key Units Per Assembly: 1 Availability: In Stock Price: $2.35
Index No Ref.: 18 Part Number: 091-980318 Description: Screw, Hex. Hd. Cap 5/16-18NC x 1-1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-982363 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 21 Part Number: 091-993212 Description: Washer, Lock 1/4 Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 22 Part Number: 093-151793 Description: Shift Arm Mounting Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-740555 Description: Screw, Soc. Hd. Shoulder 1/4-20NC x 3/8 (5/16 Dia.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-723999 Description: Adaptor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-207969 Description: Screw, Soc. Hd. Shoulder 1/4-20NC x 3/8 (5/16 Dia.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-993212 Description: Washer, Lock 1/4 Std. Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 27 Part Number: 091-991760 Description: Nut, Hex. 1/4-20NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 093-146744 Description: Shift Lever Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 092-076843 Description: Shift Lever Lock Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 092-073600 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 107-013450 Description: Key Units Per Assembly: 1 Availability: In Stock Price: $1.49
Index No Ref.: 32 Part Number: 092-141332 Description: Timing Belt Units Per Assembly: 1 Availability: In Stock Price: $67.01
Index No Ref.: 33 Part Number: 092-096247 Description: Electric Motor (All Voltages) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-980466 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-993253 Description: Washer, Lock 3/8 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-992644 Description: Wahser, Flat 3/8 S.A.E. Std. Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 37 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 090-156191 Description: Cord Grip Connector (.500-.625) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 090-144809 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 090-156076 Description: Bond Nut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 092-114958 Description: Motor Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 092-076843 Description: Shift Lever Lock Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-983684 Description: Screw, Button Hd. Soc. 1/4-20NC x 3/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-992602 Description: Washer, Flat 1/4 S.A.E. Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 093-208353 Description: Slide Plate and Pin Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-149105 Description: Thumbscrew Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-983213 Description: Screw, Button Hd. Soc. #10-24NC x 3/8 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 6 Part Number: 092-076827 Description: Spring Support Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-992602 Description: Washer, Flat 1/4 S.A.E. Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-340240 Description: Compression Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-168097 Description: Self-Locking Nut 5/16-18NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-009027 Description: Self-Locking Nut 1/4-20NC Units Per Assembly: 1 Availability: Call For Info Price:
