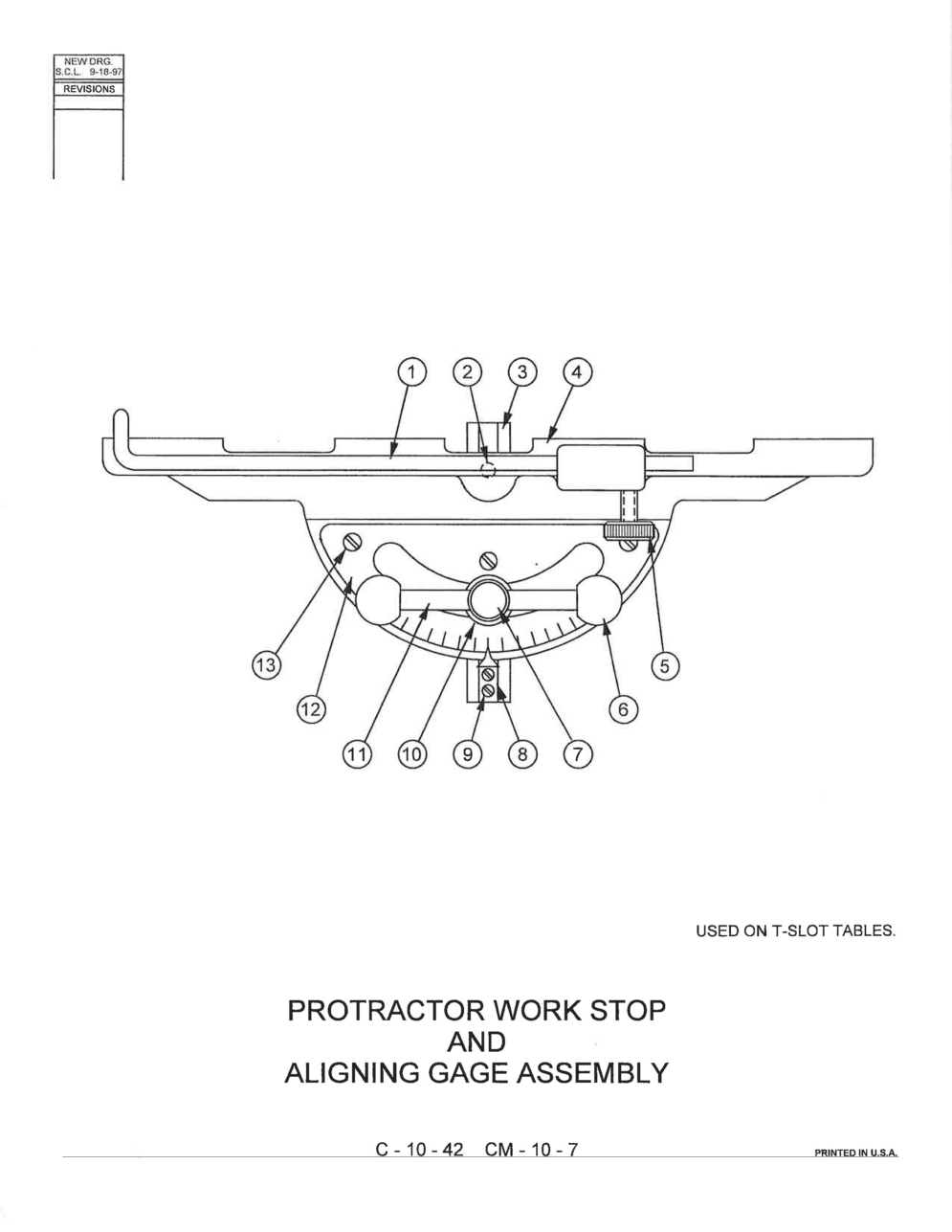

Exploded View Parts Ordering: 2012-VH_544
Page Code: CM-10-7
Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
Index No Ref.:
Ref.* |
Part Number:
080-514953 |
Description:
Protractor Work Stop And Aligning Gage Assembly |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
1 |
Part Number:
135-019768 |
Description:
Gage Rod |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
2 |
Part Number:
114-004732 |
Description:
Dowel Pin |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
3* |
Part Number:
090-253022 |
Description:
T-Nut |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
4 |
Part Number:
090-514969 |
Description:
Miter Head |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
5 |
Part Number:
134-174010 |
Description:
Thumbscrew |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
6 |
Part Number:
091-339713 |
Description:
Knob |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
7* |
Part Number:
090-116351 |
Description:
Stud |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
8 |
Part Number:
090-116336 |
Description:
Pointer |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
9 |
Part Number:
091-988675 |
Description:
Screw, Rd. Hd. Mach. #10-24NC x 3/8 |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
10 |
Part Number:
091-992651 |
Description:
Washer, Flat 7/16 S.A.E. Std. |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
11 |
Part Number:
090-116344 |
Description:
Shaft |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
12 |
Part Number:
135-016145 |
Description:
Protractor Plate |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
13 |
Part Number:
091-988675 |
Description:
Screw, Rd. Hd. Mach. #10-24NC x 3/8 |
Units Per Assembly:
3 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
|
Description:
*NOTE: For Model 26-HB2 |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
Ref. |
Part Number:
080-547581 |
Description:
Protractor Work Stop and Aligning Gage Assembly |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
3 |
Part Number:
090-291626 |
Description:
T-Nut |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
7 |
Part Number:
091-011189 |
Description:
Stud |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
