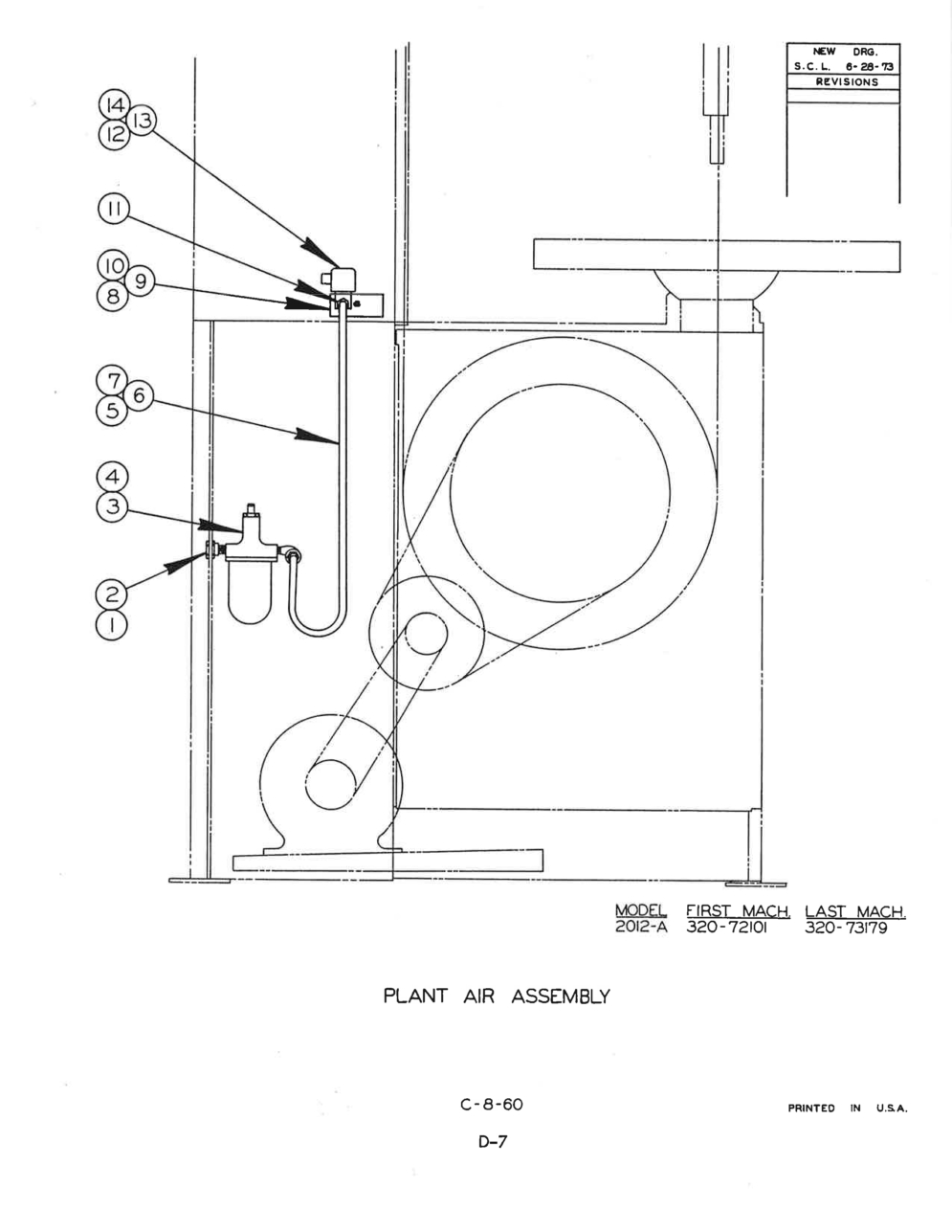

Exploded View Parts Ordering: 2012-A_320
Page Code: C-8-60
Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
Index No Ref.:
Ref. |
Part Number:
502221 |
Description:
Plant Air Assembly |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
1 |
Part Number:
091-256735 |
Description:
Bulkhead Adaptor |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
2 |
Part Number:
114-035074 |
Description:
Close Nipple1/4" |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
3 |
Part Number:
091-029488 |
Description:
Oil Mist Lubricator |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
4 |
Part Number:
117-135210 |
Description:
90 Degree Street Elbow |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
5 |
Part Number:
090-020041 |
Description:
Barbed Insert |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
6 |
Part Number:
135-068880 |
Description:
Hose Clamp |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
7 |
Part Number:
091-970962 |
Description:
Hose 3/8" I.D. x 5/8 O.D. |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
8 |
Part Number:
091-281485 |
Description:
Manifold |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
9 |
Part Number:
091-988956 |
Description:
Screw, Rd. Hd. Mach.1/4-20NC x 1/2 |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
10 |
Part Number:
091-993741 |
Description:
Washer, Lock Shakeproof 1/4" Ext. Std. |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
11 |
Part Number:
091-281790 |
Description:
Barbed Insert |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
12 |
Part Number:
135-024560 |
Description:
Reducer Bushing |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
13 |
Part Number:
114-145287 |
Description:
Close Nipple 1/8 |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
14 |
Part Number:
091-194019 |
Description:
Solenoid Valve 120V 60 HZ |
Units Per Assembly:
Use |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
091-194043 |
Description:
Solenoid Valve 240V 60 HZ |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
091-194084 |
Description:
Solenoid Valve 380V 60 HZ |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
091-194076 |
Description:
Solenoid Valve 480V 60 HZ |
Units Per Assembly:
One |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
|
Description:
NOTE: Following Item Not Shown: |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
091-253872 |
Description:
Actuator Rod |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
