Exploded View Parts Ordering: 2012-A_320

2012-A 320 Online Parts Manual

Serial No: 340-74101 End Date 340-78421

Return to manuals

Page Code: C-5-85

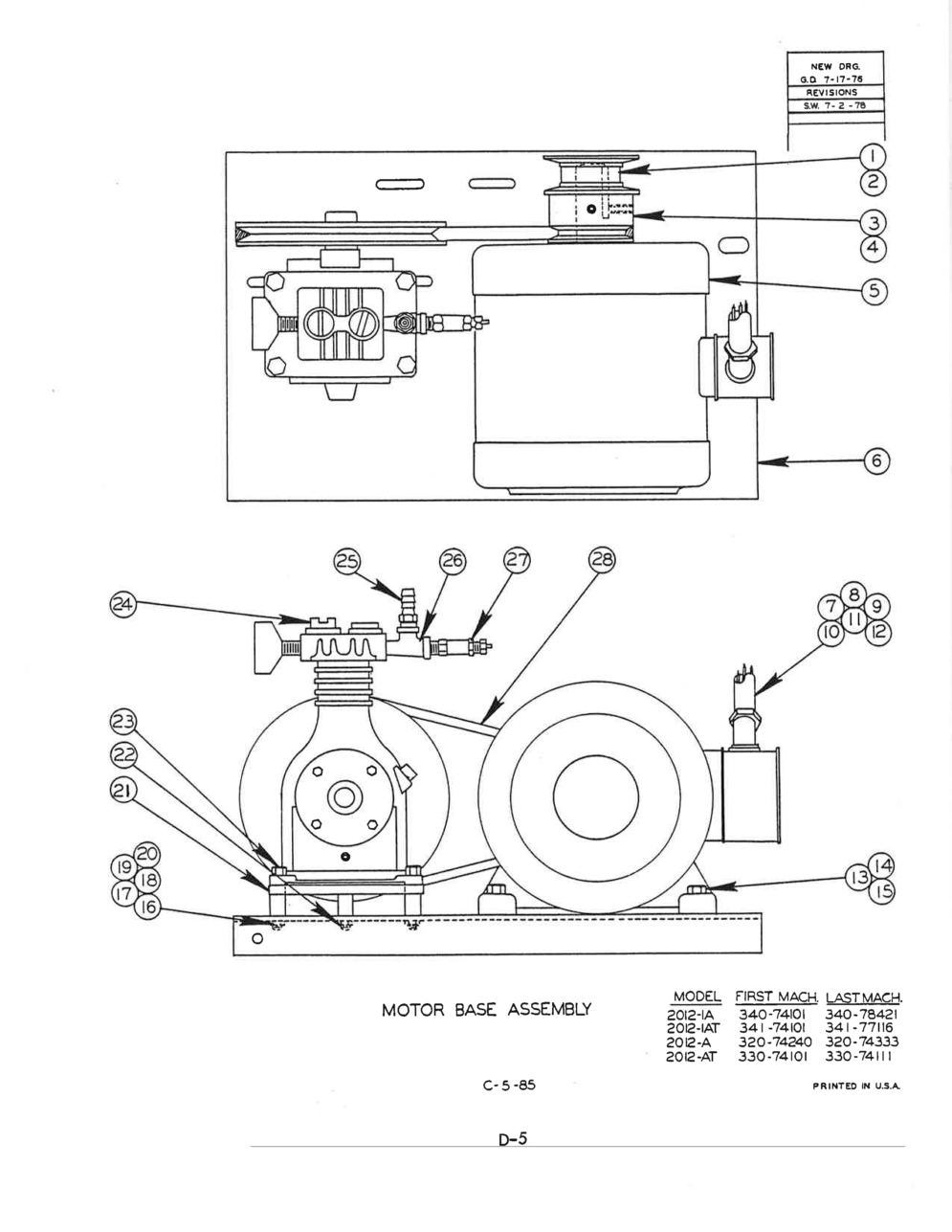

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 405255 Description: Motor Base Assembly (3 H.P., 60 HZ) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 405256 Description: Motor Base Assembly (3 H.P., 50 HZ) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 093-051928 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-984278 Description: Screw, Soc. Set. 1/4-20NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 094-045879 Description: Pulley (Used on 405255) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-024735 Description: Pulley (Used on 405256) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-984278 Description: Screw, Soc. Set 1/4-20NC x 3/4 (405255) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-984294 Description: Screw, Soc. Set1/4-20NC x 11/4 (405256) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-113548 Description: Electrical Motor 60HZ (Used on 405255) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-164699 Description: Electrical Motor 50HZ (Used on 405256) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 094-045895 Description: Motor Base Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-145053 Description: "O"-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-971853 Description: Wire Stranded #12 Black Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-971564 Description: Sealtite Conduit 1/2" Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 11 Part Number: 090-145079 Description: Conduit Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-350785 Description: Reducing Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-980474 Description: Screw, Hex. Hd. Cap 3/8-16NC x 11/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-993329 Description: Washer, Lock 3/8 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-991224 Description: Nut, Hex. 5/16-18NC Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-992628 Description: Washer, Flat 5/16 Std. Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-211607 Description: Spacer Units Per Assembly: 2 Availability: In Stock Price: $26.82
Index No Ref.: 20 Part Number: 091-980342 Description: Screw, Hex. Hd. Cap 5/16-18NC x 2 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-211631 Description: Plate Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-211615 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-980292 Description: Screw, Hex. Hd. Cap 5/16-18NC x 1 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 094-019577 Description: Air Compressor (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-020041 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 135-008472 Description: Service Tee Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-283796 Description: Safety Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 090-027723 Description: V-Belt (Used on 405255) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-028739 Description: V-Belt (Used on 405256) Units Per Assembly: 1 Availability: Call For Info Price:
