Exploded View Parts Ordering: 2012-A_320

2012-A 320 Online Parts Manual

Serial No: 340-74101 End Date 340-78421

Return to manuals

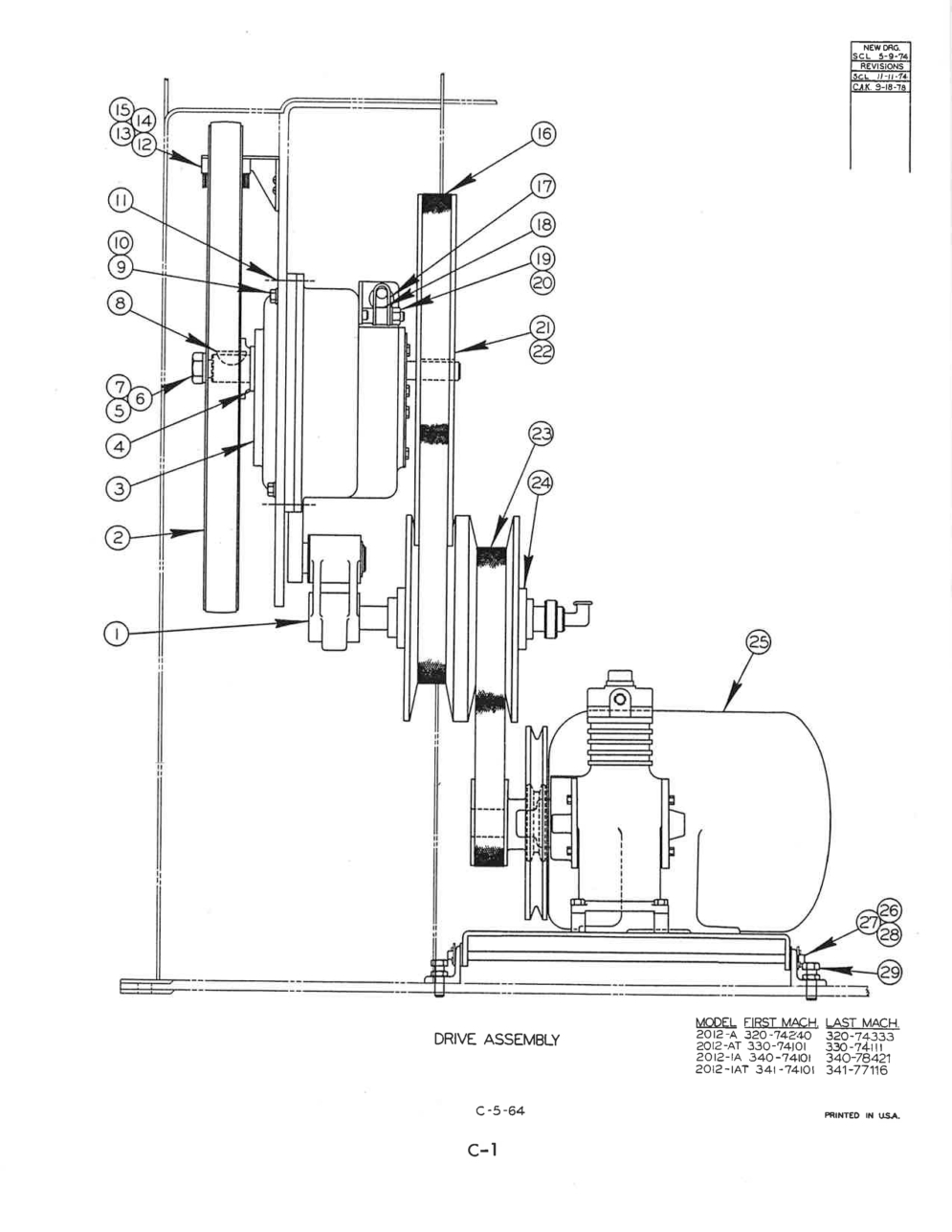

Page Code: C-5-64

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 503605 Description: Drive Assembly (60 Hz) (2012-A, 2012-AT) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 503606 Description: Drive Assembly (50 Hz) (2012-A, 2012-AT) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 504230 Description: Drive Assembly (2013-1, 2013-10, 2012-1A) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 504234 Description: Drive Assembly (60 Hz) (2012-1AT) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-984377 Description: Screw, Soc. Set 5/16-18NC x1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-397126 Description: Wheel Assembly Units Per Assembly: 1 Availability: In Stock Price: $1,399.65
Index No Ref.: Part Number: 091-253575 Description: Tire Units Per Assembly: 1 Availability: In Stock Price: $102.00
Index No Ref.: Part Number: 094-025996 Description: Lower Saw Wheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-559972 Description: Two Speed Transmission Sub-Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-318147 Description: Spacer Option List (Ass'y# 503605 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-333161 Description: Spacer, 20 Ga. (All other Assemblies) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-333179 Description: Spacer, 22 Ga. (All other Assemblies) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-333187 Description: Spacer, 10 Ga. (All other Assemblies) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-992685 Description: Washer, Flat 3/4" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-993782 Description: Washer, Lock 3/4" External Shakeproof Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-991406 Description: Nut, Hex. Jam 3/4-10NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 8 Part Number: 105-046049 Description: Woodruff Key Units Per Assembly: 1 Availability: In Stock Price: $2.35
Index No Ref.: 9 Part Number: 091-980300 Description: Screw, Hex. Hd. Cap 5/16-18NC x 11/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-993238 Description: Washer, Spring Lock 5/16" Med. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 135-066959 Description: Dowel Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-166844 Description: Wheel Brush Units Per Assembly: 1 Availability: In Stock Price: $6.98
Index No Ref.: 13 Part Number: 090-166646 Description: Brush Holder Weldment Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-988691 Description: Screw, Rd. Hd. Mach. #10-24NC x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-992586 Description: Washer, Flat #10 SAE. Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 16 Part Number: 090-028002 Description: Vari-Speed Belt (Ass'ys. #503605 & 503606) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 135-004695 Description: Vari-Speed Belt (Assy's #504230 & 504234) Units Per Assembly: 1 Availability: In Stock Price: $214.40
Index No Ref.: 17 Part Number: 135-065621 Description: Shifter Segment Units Per Assembly: 1 Availability: In Stock Price: $527.88
Index No Ref.: 18 Part Number: 135-065639 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-993766 Description: Washer, Lock 3/8" Ext. Shakeproof Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 094-050960 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 107-013450 Description: Square Key Units Per Assembly: 1 Availability: In Stock Price: $1.49
Index No Ref.: 23 Part Number: 135-004703 Description: Vari-Speed Belt (Not used on Ass'y#504230) Units Per Assembly: 1 Availability: In Stock Price: $146.41
Index No Ref.: 24 Part Number: 135-093359 Description: Variable Pulley Assembly(See Detail) Units Per Assembly: 1 Availability: In Stock Price: $2,473.33
Index No Ref.: 25 Part Number: 094-052552 Description: Motor Base Assembly (60 Hz) (Ass'ys #503605 & 504234) (See Detail) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: 094-052560 Description: Motor Base Assembly (50 Hz) (Ass'ys #503606 & 504230) (See Detail) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-304352 Description: Shaft (Ass'ys #503605 & 503606) Units Per Assembly: Use Availability: Call For Info Price:
Index No Ref.: Part Number: 093-039535 Description: Shaft (Ass'ys #504230 & 504234) Units Per Assembly: One Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-995167 Description: Cotter Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-992644 Description: Washer, Flat 3/8" SAE Units Per Assembly: 5 Availability: In Stock Price: $4.20
Index No Ref.: 29 Part Number: 091-980474 Description: Screw, Hex. Hd. Cap 3/8-16NC x 11/4 Units Per Assembly: 2 Availability: Call For Info Price:
