Exploded View Parts Ordering: 2012-A_320

2012-A 320 Online Parts Manual

Serial No: 340-74101 End Date 340-78421

Return to manuals

Page Code: C-3-79

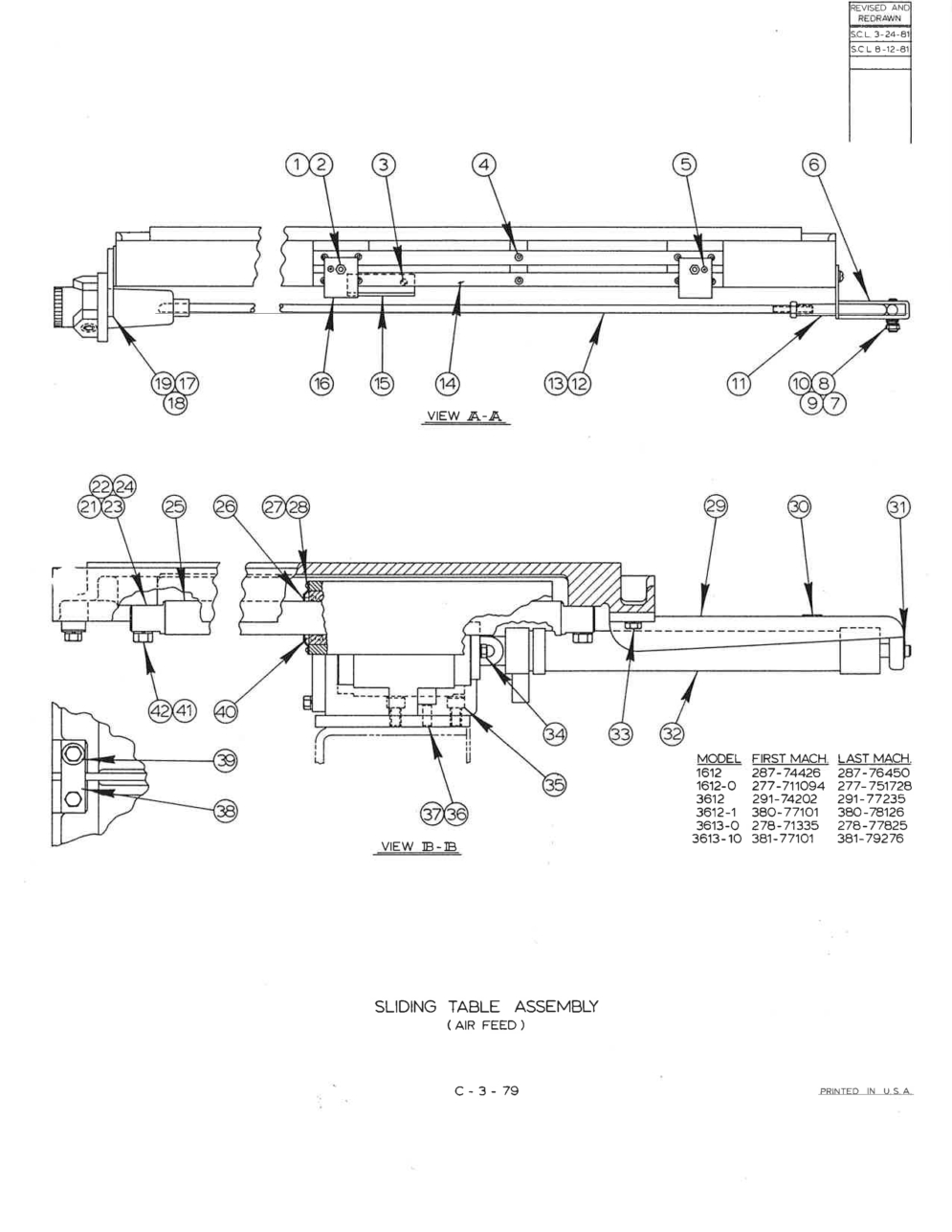

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 095-015327 Description: Sliding Table Ass'y (Air Feed) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-093923 Description: T-Bolt 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-991224 Description: Nut, Hex. 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-988956 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-982215 Description: Screw, Soc. Hd. Cap #10-24NC x 5/8 Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-982181 Description: Screw, Soc. Hd. Cap #10-24NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-253898 Description: Bracket Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-156604 Description: Locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-046326 Description: Belleville Washer Units Per Assembly: 6 Availability: In Stock Price: $1.28
Index No Ref.: 9 Part Number: 091-982520 Description: Screw, Soc. Hd. Cap 1/4-28NF x 1-1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-310110 Description: Handle Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-253880 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-253872 Description: Actuator Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-991273 Description: Nut, Hex. Jam 3/8-16NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 090-239674 Description: Slide Bar Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 090-095035 Description: Stop Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-095043 Description: Dog Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-256743 Description: Regulating Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-987107 Description: Screw, Fil. Hd. Mach. #12-24NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-980094 Description: Screw, Hex. Hd. Cap 1/4-20NC x 7/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-333104 Description: Shim (.035) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-333112 Description: Shim (.0149) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-333120 Description: Shim (.005) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-333138 Description: Shim (.003) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-216128 Description: Guide Rod Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 090-051764 Description: Retainer Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 16 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-993196 Description: Washer, Lock #10 Std Units Per Assembly: 16 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 090-410614 Description: Cylinder Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 090-062910 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-193649 Description: Grip Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 094-033206 Description: Table Cylinder Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-980441 Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-980276 Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-982918 Description: Screw, Soc. Hd. Cap 1/2-13NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 090-163510 Description: Dowel Pin (1" Long) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 135-004555 Description: Dowel Pin (1-1/2" Long) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 090-045998 Description: Clamp Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-992644 Description: Washer, Flat 3/8 S.A.E. Std. Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 40 Part Number: 091-65507o Description: Rod Wiper Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-980698 Description: Screw, Hex. Hd. Cap 1/2-13NC x 2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 091-993279 Description: Washer, Lock 1/2 Std. Units Per Assembly: 4 Availability: Call For Info Price:
