Exploded View Parts Ordering: 2012-A_320

2012-A 320 Online Parts Manual

Serial No: 340-74101 End Date 340-78421

Return to manuals

Page Code: C-3-77

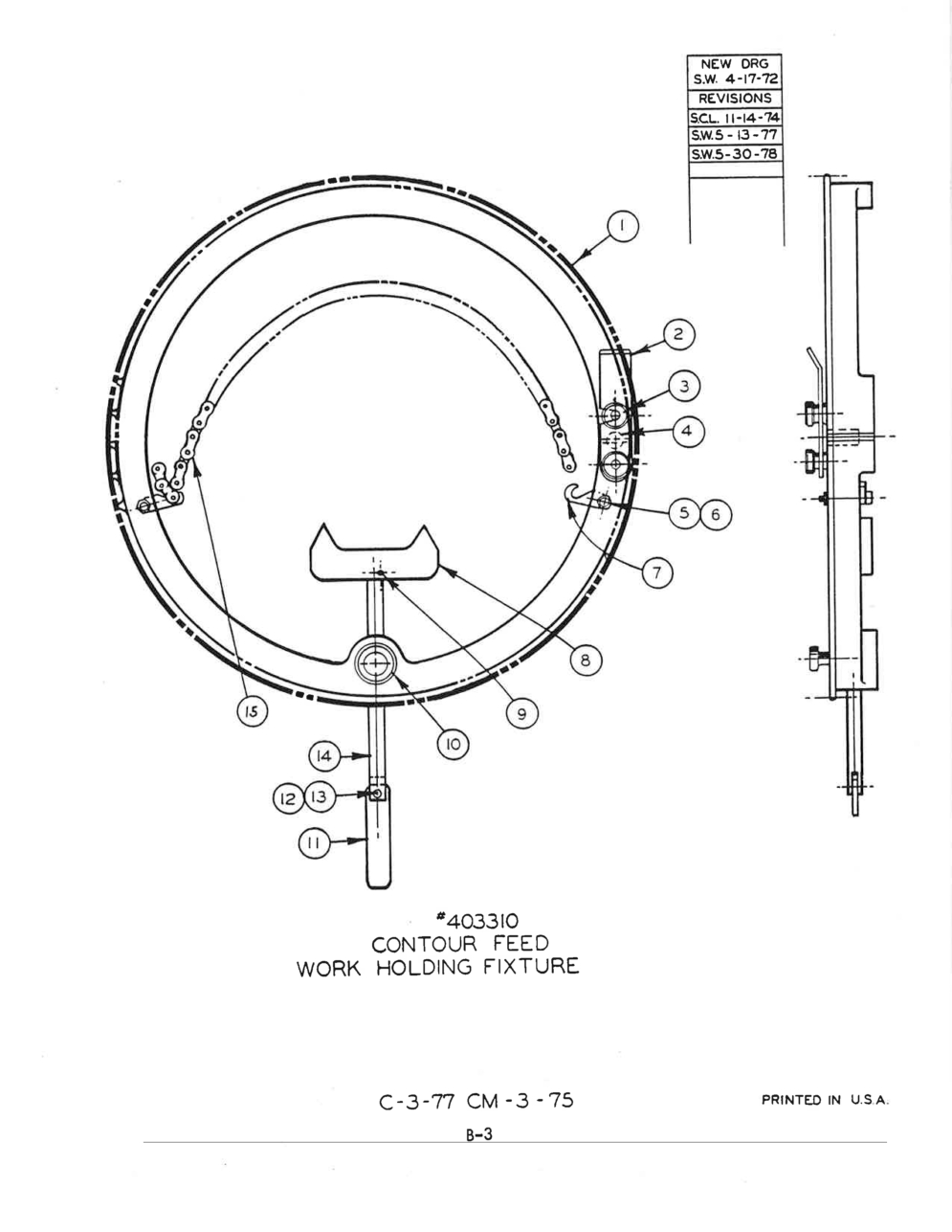

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 094-033107 Description: Contour Feed Work Holding Fixture Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 095-015160 Description: Clamping Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-253328 Description: Clamp Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-339705 Description: Clamp Screw Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-130428 Description: Dowel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-991117 Description: Nut, Hex. #10-24NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-982272 Description: Screw, Soc. Hd. Cap #10-24NC x 11/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 135-003291 Description: Chain Connector Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-253351 Description: Jaw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-042557 Description: Roll Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-253377 Description: Screw Feed Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-253385 Description: Handle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-052639 Description: Belleville Washer Units Per Assembly: 1 Availability: In Stock Price: $3.44
Index No Ref.: 13 Part Number: 090-042516 Description: Roll Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-253344 Description: Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-253336 Description: Chain Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-253401 Description: Chain Assembly (Not Shown) Units Per Assembly: 1 Availability: Call For Info Price:
