Exploded View Parts Ordering: 2012-AT_330

2012-AT_330 Online Parts Manual

Serial No: 330-74101 End Date 330-74111

Return to manuals

Page Code: C-3-84

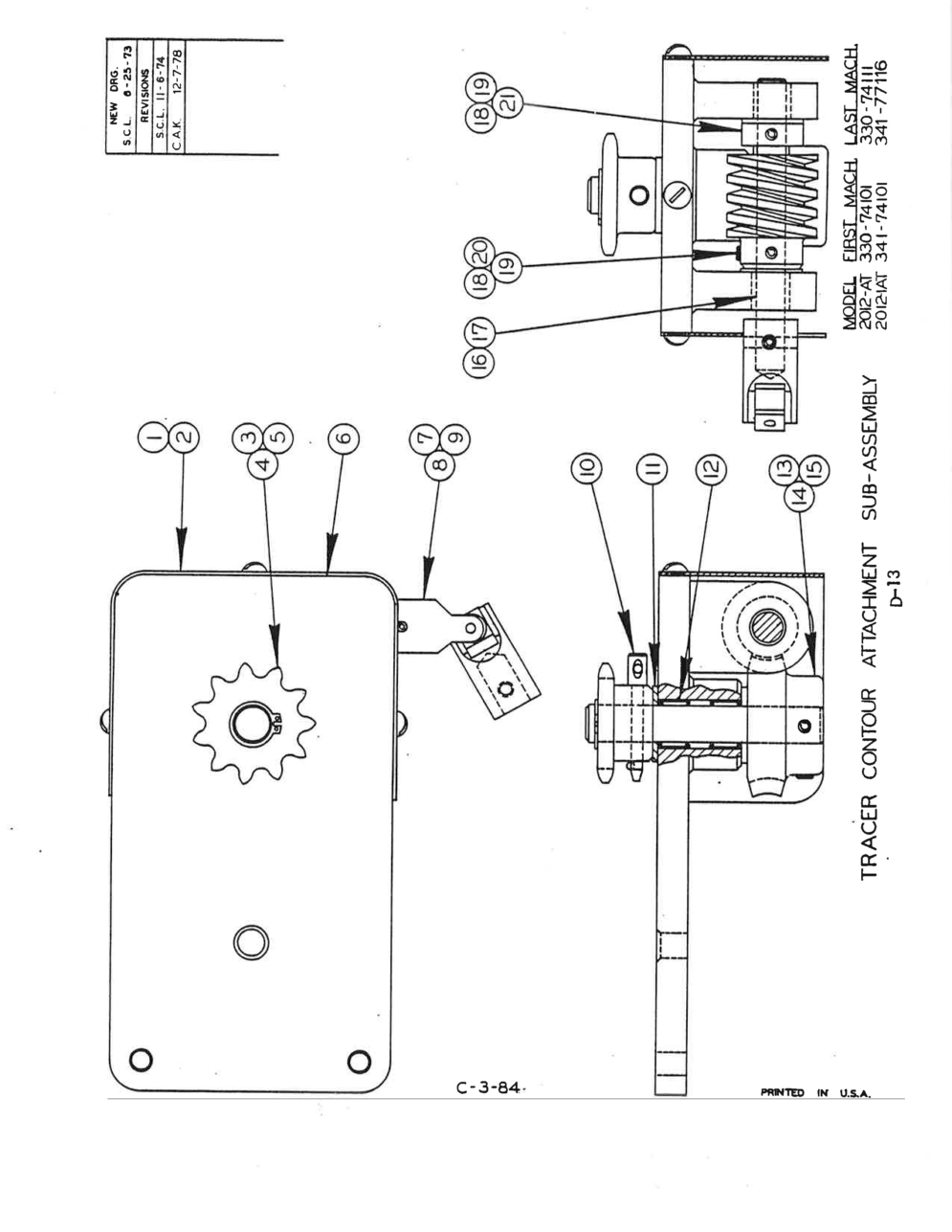

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 094-046836 Description: Contour Attachment Sub-Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 093-038149 Description: Guard Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-990150 Description: Screw, Truss. Hd. Mach. 10-24NC x 3/8 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-085357 Description: Sprocket Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 135-064269 Description: Snap Ring Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 5 Part Number: 091-314559 Description: Axle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 090-333295 Description: Bracket Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 134-055243 Description: Universal Joint Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-042573 Description: Roll Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-984229 Description: Screw, Soc. Hd. Set 1/4-20NC x 1/4 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-085365 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-061606 Description: Thrust Bearing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-314427 Description: Needle Bearing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-085266 Description: Worm Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 090-042631 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 15 Part Number: 091-984245 Description: Screw, Soc. Hd. Set 1/4-20NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-081463 Description: Oilite Bearing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-087577 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-042599 Description: Roll Pin Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 19 Part Number: 091-083923 Description: Oilite Bearing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-085274 Description: Worm Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 134-054105 Description: Collar Units Per Assembly: 1 Availability: Call For Info Price:
