Exploded View Parts Ordering: 2012-AT_330

2012-AT_330 Online Parts Manual

Serial No: 330-74101 End Date 330-74111

Return to manuals

Page Code: C-3-82

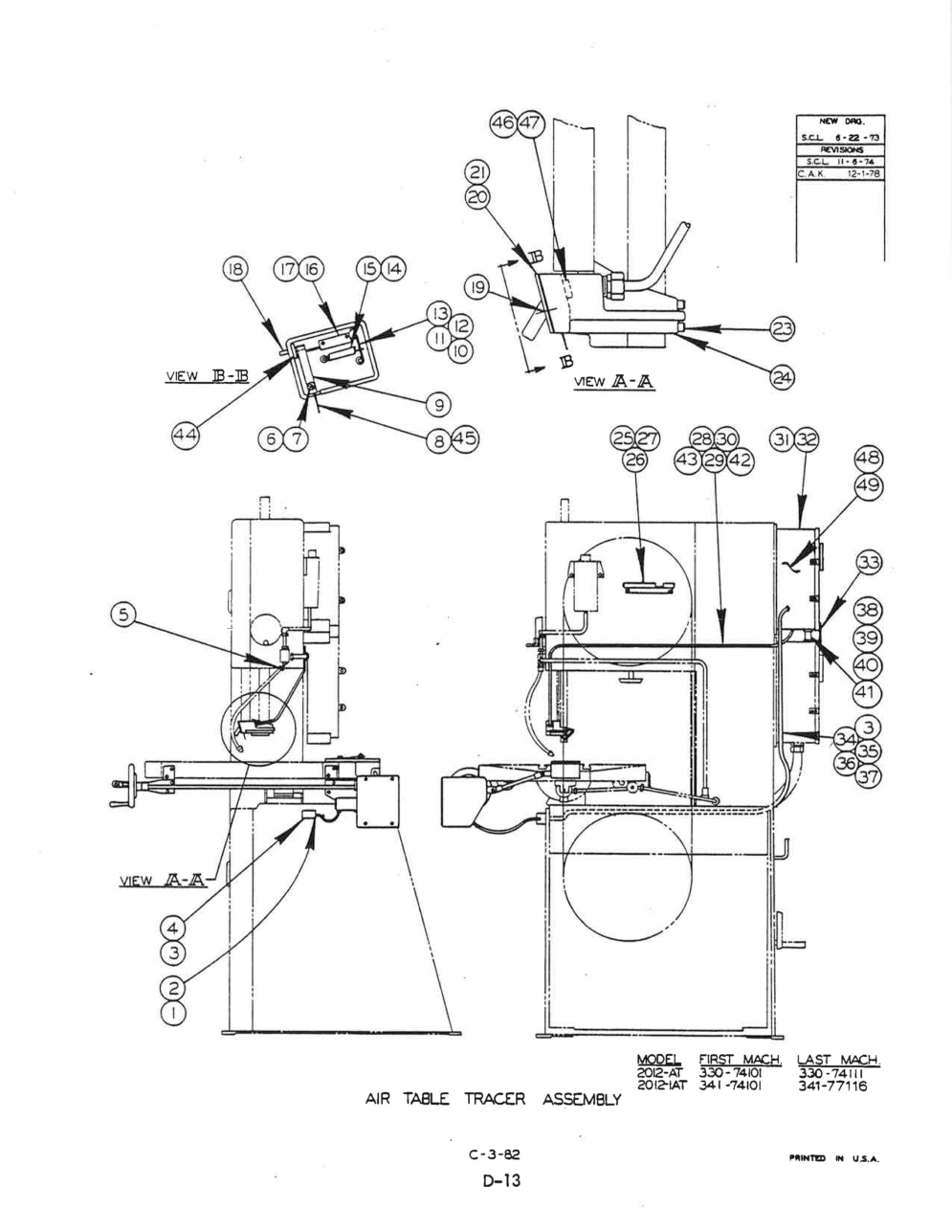

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 503006 Description: Air Table Tracer Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-328112 Description: Cord Grip Connector Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-195439 Description: Bond Nut Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. 10-24NC x 3/8 Units Per Assembly: 16 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-029927 Description: Wiring Box Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-122358 Description: 45 Degree Elbow Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-311415 Description: Shoulder Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-322891 Description: Shim Option List Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-082636 Description: Probe Head Tip Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-311407 Description: Probe Pivot Arm Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-314674 Description: Tension Arm Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-314666 Description: Pivot Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-014358 Description: Copper Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-046178 Description: Retaining Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-319384 Description: Extension Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 114-006067 Description: Dowel Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-313635 Description: Linear Potentiometer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-989186 Description: Screw, Rd. Hd. Mach. 2-56NC x 5/16 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-003582 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-988592 Description: Screw, Rd. Hd. Mach. #8-32NC x 1 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-311423 Description: Cover Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-311431 Description: Gasket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-982421 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 24 Part Number: 094-046711 Description: Probe Housing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 094-046869 Description: Storage Box Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-988956 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-993212 Description: Washer, Lock 1/4" Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 28 Part Number: 090-151416 Description: Cord Grip Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 090-182817 Description: Conduit Hanger Clamp Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-988535 Description: Screw, Rd. Hd. Mach. #8-32NC x 3/8 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 095-031456 Description: Control Box Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-988956 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-313767 Description: Lock Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 134-015031 Description: Glue Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-971564 Description: Conduit, Sealtite 1/2" Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 36 Part Number: 090-145046 Description: Connector, Sealtite 1/2" Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 090-165606 Description: Cable Hanger Clamp Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 090-195439 Description: Bond Nut Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 090-145053 Description: "O"-Ring Units Per Assembly: 7 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 090-144114 Description: Washer Units Per Assembly: 7 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-371674 Description: Conduit Pipe Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 091-972141 Description: Shielded Cable, #20-4, Conductor Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 090-079237 Description: Grommet Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-318246 Description: Seal Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 091-318253 Description: Seal Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 091-987487 Description: Screw, Flat Hd. Mach. #10-24NC x 3/8" Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 47 Part Number: 091-319376 Description: Carbide Shim Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 091-972323 Description: Shrinkable Sleeving 1/16" Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 091-972331 Description: Shrinkable Sleeving 1/4" Units Per Assembly: A.R. Availability: Call For Info Price:
