Exploded View Parts Ordering: 2012-AT_330

2012-AT_330 Online Parts Manual

Serial No: 330-74101 End Date 330-74111

Return to manuals

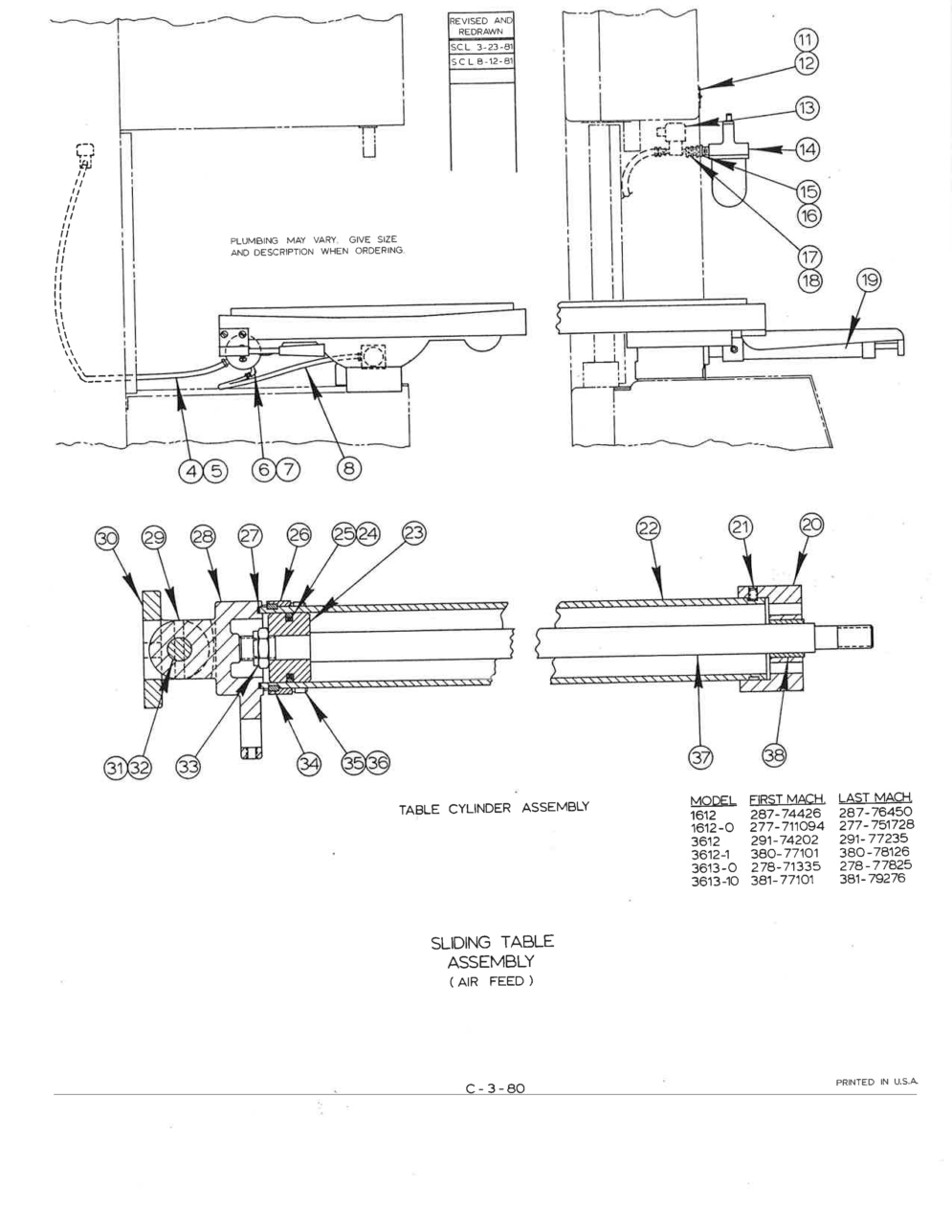

Page Code: C-3-80

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: REF. Part Number: 095-015327 Description: Sliding Table Assembly (Air Feed) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-970947 Description: Hose, Black Neoprene 11/16 O.D. Units Per Assembly: A.R. Availability: In Stock Price: $3.44
Index No Ref.: 5 Part Number: 091-044784 Description: Hose Clamp Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 117-135210 Description: 90 Degree Street Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-020041 Description: Barbed Insert Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-970947 Description: Hose, Black Neoprene 11/16 O.D. Units Per Assembly: A.R. Availability: In Stock Price: $3.44
Index No Ref.: 11 Part Number: 091-434991 Description: Escutcheon (Plant Air) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-490110 Description: Escutcheon (Plant Air) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-993964 Description: Screw, Rd. Hd. Drive #2 x 3/16 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-194019 Description: Solenoid Valve (60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-487348 Description: Solenoid Valve (220/240 - 50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-487355 Description: Solenoid Valve (120/110 - 50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-458836 Description: Oil - Fog Lubricator Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-256735 Description: Bulkhead Adaptor Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 114-035074 Description: Close Nipple Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-038183 Description: Reducer Coupling Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 114-145287 Description: Close Nipple Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 094-033206 Description: Table Cylinder Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 093-004687 Description: End Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-154278 Description: Screw, Soc. Set #10 - 24 NC x 1/4 (Self-Locking) Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-278218 Description: Cylinder Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-256859 Description: Piston Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-277749 Description: Seal Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-128066 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 135-004653 Description: Cylinder Collar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 135-004638 Description: Gasket Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 28 Part Number: 090-256553 Description: Rear Cylinder Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 090-042615 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 30 Part Number: 090-215948 Description: Swivel Base Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 090-051301 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 135-008910 Description: Shim Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 090-127762 Description: Locknut 1/2 - 20 NF Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 135-004661 Description: Snap Ring Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-982421 Description: Screw, Soc. Hd. Cap 1/4 - 20 NC x 1 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 36 Part Number: 090-035593 Description: Washer Lock 1/4 Hi-Collar Units Per Assembly: 4 Availability: In Stock Price: $1.28
Index No Ref.: 37 Part Number: 093-023273 Description: Piston Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 090-051236 Description: Bearing Units Per Assembly: 1 Availability: In Stock Price: $5.74
