Exploded View Parts Ordering: 2012-AT_330

2012-AT_330 Online Parts Manual

Serial No: 330-74101 End Date 330-74111

Return to manuals

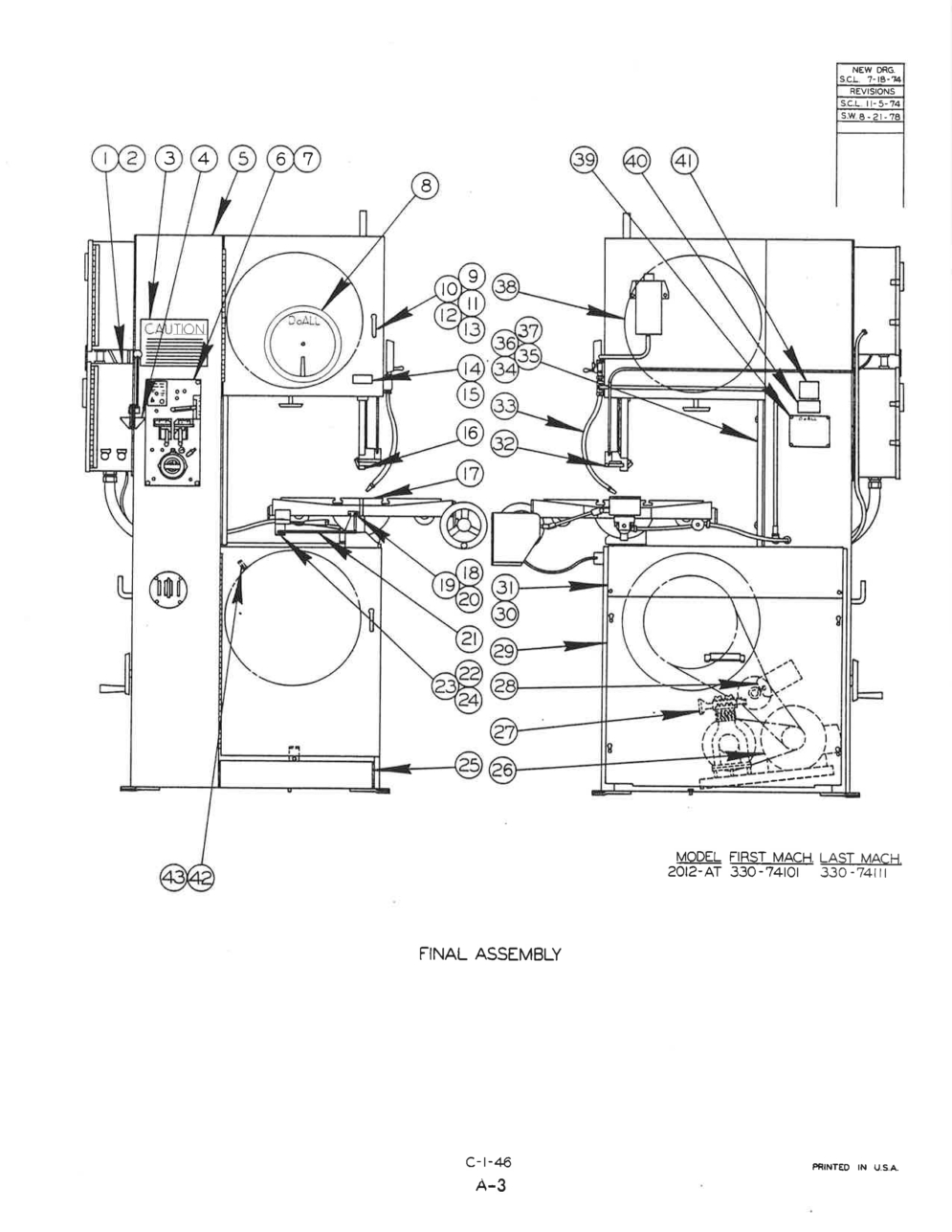

Page Code: C-1-46

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 503603 Description: Final Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 133182 Description: Electrical Assembly (J.I.C.-G.P.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-349036 Description: Electrical Schematic (J.I.C -G.P.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 094-044765 Description: Escutcheon (Caution) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-318071 Description: Blade Shear Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 095-008421 Description: Frame Weldment Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-322727 Description: DBW-15 Butt Welder Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-990192 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-468174 Description: Job Selector Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 134-011048 Description: Door Handle Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-230664 Description: Shaft Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 105-021018 Description: Door Latch Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-984229 Description: Screw, Soc. Set 1/4-20NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-042292 Description: Roll Pin Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 14 Part Number: 091-310334 Description: Escutcheon (Warning) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-993972 Description: Screw, Drive #2 x1/4 Type "U" Units Per Assembly: 12 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 094-049996 Description: Post Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 095-038261 Description: Sliding Table Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-157301 Description: Support Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-988477 Description: Screw, Rd. Hd. Mach. #6-32NC x 11/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-993170 Description: Washer, Lock #6 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 093-036010 Description: Guard Bar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-357418 Description: Support Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-988501 Description: Screw, Rd. Hd. Mach. #6-32NC x 13/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-991083 Description: Nut, Hex. #6-32NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 094-044674 Description: Chip Box Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 503605 Description: Drive Assembly (60Hz) (See Detail) Units Per Assembly: Use Availability: Call For Info Price:
Index No Ref.: Part Number: 503606 Description: Drive Assembly (50Hz) (See Detail) Units Per Assembly: One Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 095-017588 Description: Air Compressor Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-317891 Description: Tag INST-208 (Variable Pulley Reassembly) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 095-030201 Description: Bottom Drive Cover Weldment Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 095-030219 Description: Top Drive Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-980052 Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 095-030060 Description: Air Table Tracer Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 095-017760 Description: Mist Coolant Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 094-044682 Description: Guard Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-988972 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-993741 Description: Washer, Lock 1/4 Shakeproof Ext Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-992602 Description: Washer, Flat 1/4 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 500894 Description: Head Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 093-020568 Description: Escutcheon (Machine Specifications) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 091-165522 Description: Escutcheon (Data Plate) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-292730 Description: Escutcheon (Patent Numbers) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 090-166646 Description: Brush Holder Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 090-166844 Description: Chip Brush Units Per Assembly: 1 Availability: In Stock Price: $6.98
