Exploded View Parts Ordering: 2012-2H_383

2012-2H 383 Online Parts Manual

Serial No: 383-78101 End Date 383-00452

Return to manuals

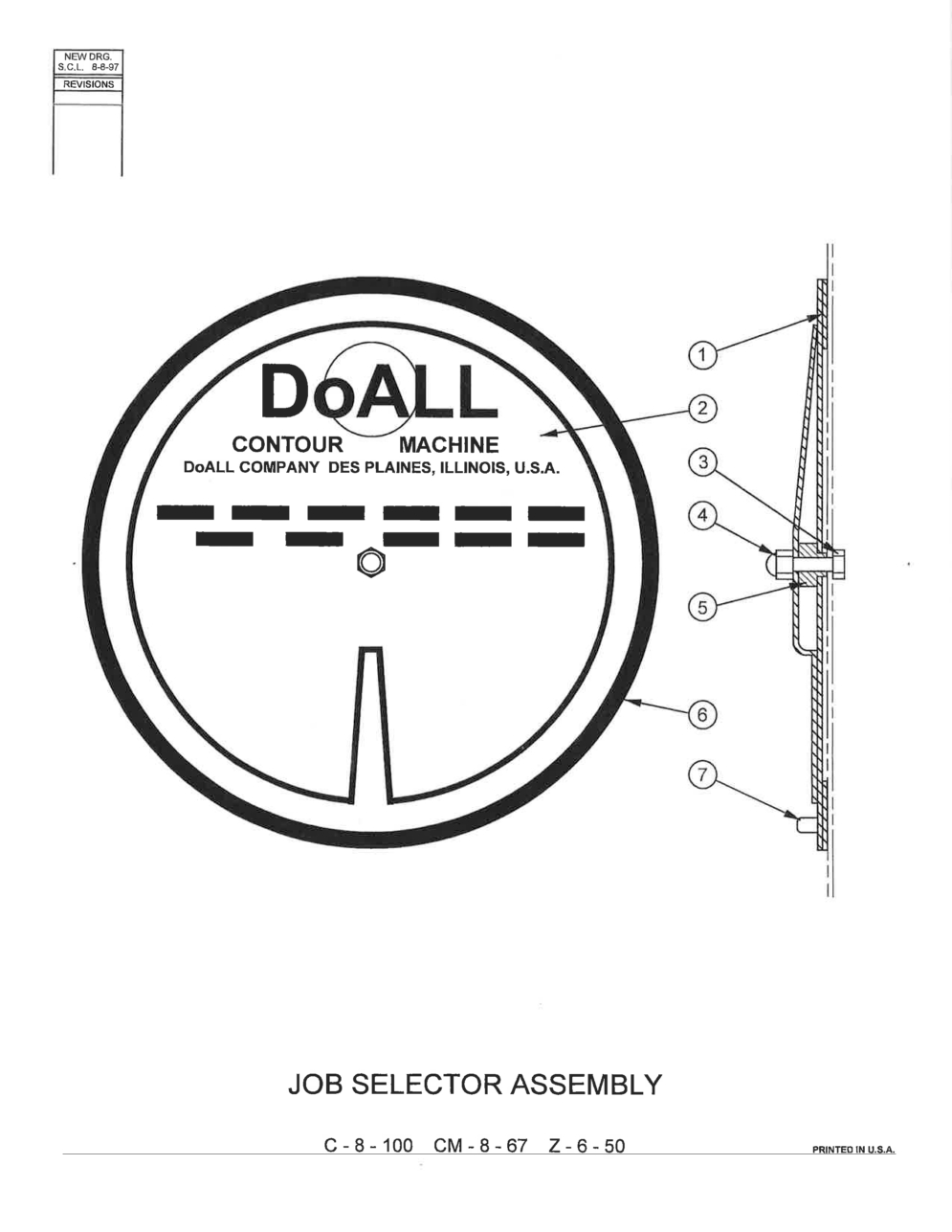

Page Code: CM-8-67

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-468174 Description: Job Selector Assembly (Inch/English) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 094-060829 Description: Job Selector Assembly (Metric/International) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 106-143043 Description: Outer Edge Felt Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 094-008380 Description: Job Selector Plate (Inch/English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-009370 Description: Job Selector Plate (Metric/International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-980276 Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-044499 Description: Acorn Nut 5/16-18NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 106-144017 Description: Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 094-008398 Description: Job Selector Dial (Inch/English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-009388 Description: Job Selector Dial (Metric/International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 134-144039 Description: Knob Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: For Machines to Europa: Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: 095-159075 Description: Job Selector Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
