Exploded View Parts Ordering: 2012-2H_383

2012-2H 383 Online Parts Manual

Serial No: 383-78101 End Date 383-00452

Return to manuals

Page Code: CM-6-50

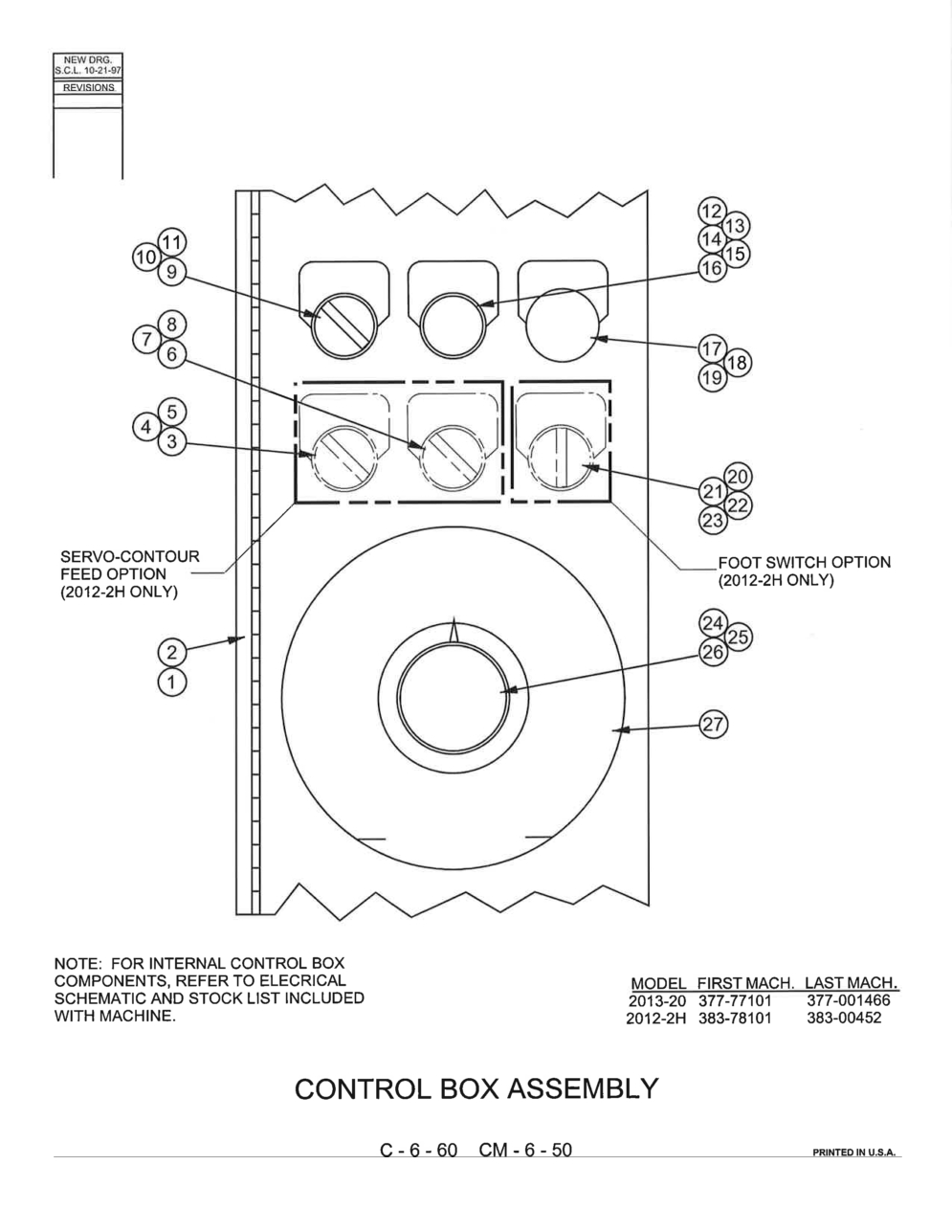

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Control Box Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 095-070512 Description: Control Box Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 092-039254 Description: Gasket Strip Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 3* Part Number: 090-152455 Description: Selector Switch (2 Position) Units Per Assembly: 1 Availability: In Stock Price: $329.89
Index No Ref.: 4* Part Number: 090-149626 Description: Contact Block (1-NO, 1-NC) Units Per Assembly: 1 Availability: In Stock Price: $228.54
Index No Ref.: 5* Part Number: 091-137166 Description: Legend Plate (Manual-Foot Switch) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: * Part Number: 091-399063 Description: Legend Plate (Manual-Foot Switch) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6* Part Number: 090-152455 Description: Selector Switch (2 Position) Units Per Assembly: 1 Availability: In Stock Price: $329.89
Index No Ref.: 7* Part Number: 091-048215 Description: Contact Block (1-NC) Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: 8* Part Number: 091-163121 Description: Legend Plate (Straight-Contour) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: * Part Number: 091-399055 Description: Legend Plate (Straight-Contour) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-152455 Description: Selector Switch (2 Position) Units Per Assembly: 1 Availability: In Stock Price: $329.89
Index No Ref.: 10 Part Number: 091-048207 Description: Contact Block (1-NO) Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: 11 Part Number: 091-333591 Description: Legend Plate (Worklight) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-369134 Description: Legend Plate (Worklight) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-356741 Description: Pushbutton Operator (Illuminated) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-354472 Description: Lens Cap (Green) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-391136 Description: Pushbutton Guard Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-048207 Description: Contact Block (1-NO) Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: 16 Part Number: 091-080036 Description: Legend Plate (Drive Start) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-312017 Description: Legend Plate (Drive Start) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-149618 Description: Pushbutton Operator (Red Mushroom) Units Per Assembly: 1 Availability: In Stock Price: $384.47
Index No Ref.: 18 Part Number: 091-048215 Description: Contact Block (1-NC) Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: 19 Part Number: 091-090028 Description: Legend Plate (Drive Stop) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-315135 Description: Legend Plate (Drive Stop) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20* Part Number: 090-152414 Description: Selector Switch (3 Position) Units Per Assembly: 1 Availability: In Stock Price: $329.89
Index No Ref.: 21* Part Number: 090-149626 Description: Contact Block (1-NO, 1-NC) Units Per Assembly: 1 Availability: In Stock Price: $228.54
Index No Ref.: 22* Part Number: 091-048215 Description: Contact Block (1-NC) Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: 23* Part Number: 091-289975 Description: Legend Plate (Man.-Prod.-Cont.) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: * Part Number: 091-421180 Description: Legend Plate (Man.-Prod.-Cont.) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 092-000454 Description: Potentiometer Units Per Assembly: 1 Availability: In Stock Price: $104.53
Index No Ref.: 25 Part Number: 092-000447 Description: Hex. Seal Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-454843 Description: Knob Units Per Assembly: 1 Availability: In Stock Price: $12.00
Index No Ref.: 27 Part Number: 093-087864 Description: Speed Dial (Inch/English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-087898 Description: Speed Dial (Metric/International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: These Items Are Used On 2012-2H Only Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 090-055385 Description: Pushbutton Hole Closing Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-615431 Description: Hour Meter (60 Hz) (Optional) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-067008 Description: Hour Meter (50 Hz) (Optional) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-973412 Description: Wire, #12 Black (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-974121 Description: Wire, #14 White (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-974147 Description: Wire, #14 Red (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971952 Description: Wire, #14 Green/Yellow (19 Strand) Units Per Assembly: A.R. Availability: In Stock Price: $1.28
Index No Ref.: Part Number: 091-974436 Description: Wire, #10 Blue (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971846 Description: Wire, #12 Red (Plastic) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971929 Description: Wire, #14 Blue (Flamenal) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-971713 Description: Wire Marker Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: 091-765289 Description: Escutcheon (Electrical Hazard) Units Per Assembly: 1 Availability: Call For Info Price:
