Exploded View Parts Ordering: 2012-2H_383

2012-2H 383 Online Parts Manual

Serial No: 383-78101 End Date 383-00452

Return to manuals

Page Code: CM-5-81

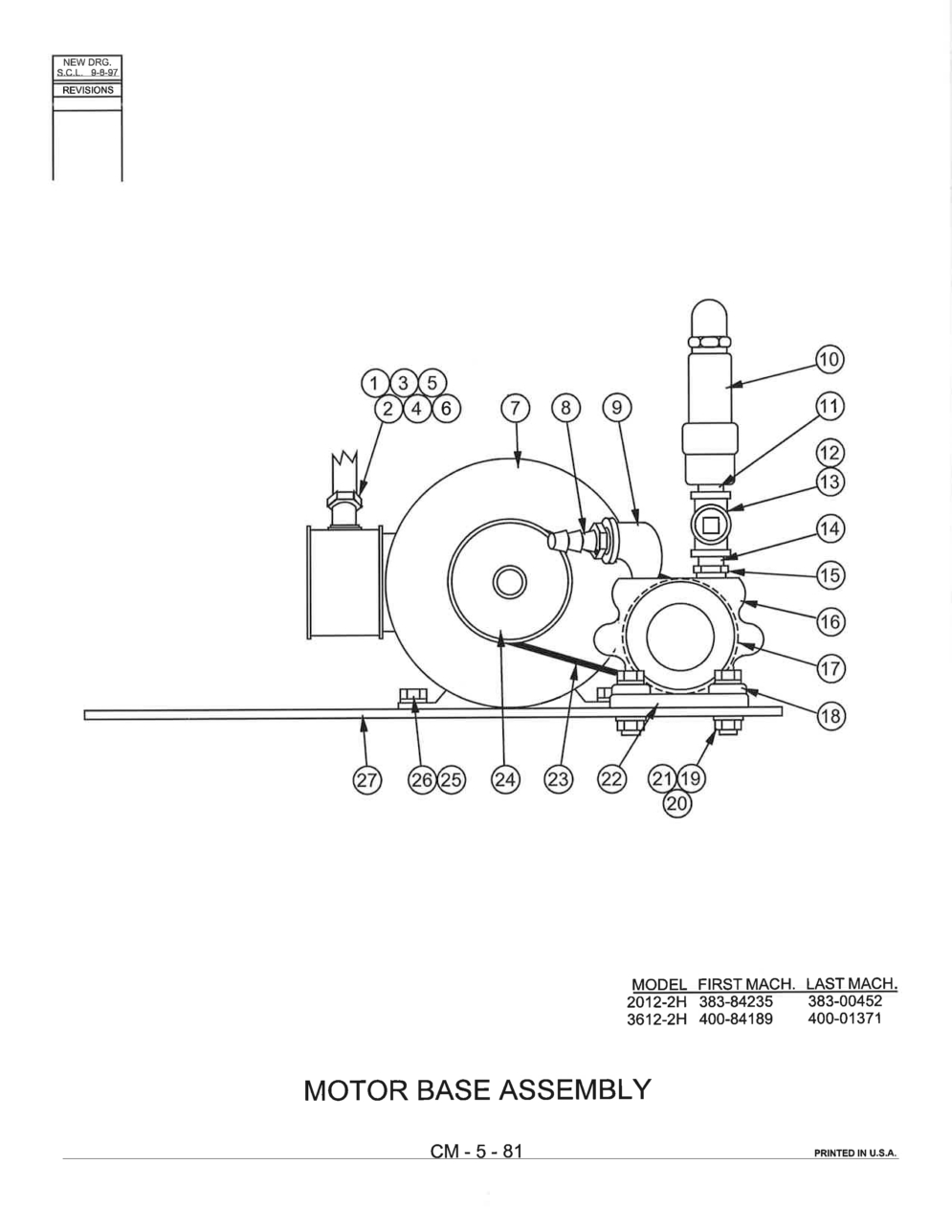

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: Description: Motor Base Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-145079 Description: 45 Degree Sealtite Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-156076 Description: Bond Nut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-492637 Description: Bushing Reducer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-144809 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-971564 Description: Sealtite Conduit 1/2 I.D. Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 7* Part Number: 092-096205 Description: Motor (208V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-096213 Description: Motor (220V, 230V, 380V, 400V, 415V, 460V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 092-096221 Description: Motor (575V) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-209049 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 114-003478 Description: 90 Degree Street Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-237834 Description: Relief Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 135-011278 Description: Close Nipple Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-020280 Description: Pipe Cross Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 106-335185 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 135-011278 Description: Close Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-148783 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-061136 Description: Hydraulic Pump Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-020520 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-087841 Description: Mounting Foot Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-980318 Description: Screw, Hex. Hd. Cap 5/16-18NC x 1-1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-991224 Description: Nut, Hex. 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-993014 Description: Washer, Flat 5/16 Wrought Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 090-052101 Description: Spacer Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 090-052093 Description: V-Belt (60 Hz) Units Per Assembly: 1 Availability: In Stock Price: $11.09
Index No Ref.: Part Number: 090-096801 Description: V-Belt (50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24* Part Number: 093-220127 Description: Pulley (60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-220135 Description: Pulley (50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-980250 Description: Screw, Hex. Hd. Cap 5/16-18NC x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-993014 Description: Washer, Flat 5/16 Wrought Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 27* Part Number: 094-189214 Description: Motor Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-980300 Description: Screw, Hex. Hd. Cap 5/16-18NC x 1-1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-992628 Description: Washer, Flat 5/16 S.A.E. Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-726562 Description: Fabreeka Washer Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Before Serial #383-97427 on 2012-2H and #400-98362 on 3612-2H, For Item #7 order #090-854639 Replacement Kit for Motor; Item #24 was #090-117268 Units Per Assembly: Availability: Call For Info Price:
