Exploded View Parts Ordering: 2012-2H_383

2012-2H 383 Online Parts Manual

Serial No: 383-78101 End Date 383-00452

Return to manuals

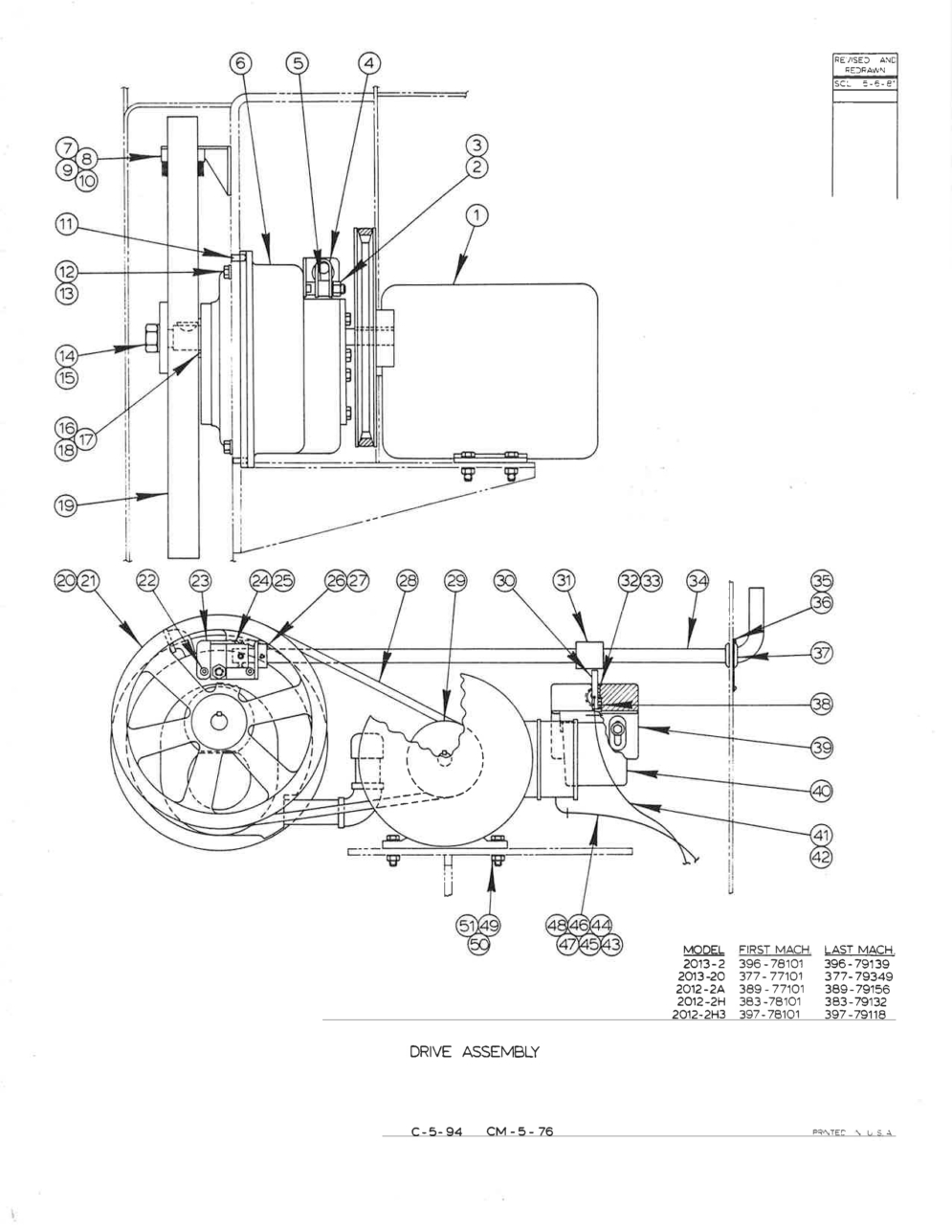

Page Code: CM-5-76

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: REF. Part Number: 095-078408 Description: Drive Assembly (2013-2,2013-20,2012-2A) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: REF. Part Number: 095-078416 Description: Drive Assembly (2012-2H,2012-2H3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-433763 Description: Electric Motor (1-1/2 H.P., 3000 RPM) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-991265 Description: Nut, Hex., 3/8-16NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-993766 Description: Washer, Lock 3/8 Shakeproof Ext Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 135-065621 Description: Shifter Segment Units Per Assembly: 1 Availability: In Stock Price: $527.88
Index No Ref.: 5 Part Number: 135-065639 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 095-068276 Description: Transmission Assembly (2 Speed) (See Detail) Units Per Assembly: 1 Availability: In Stock Price: $4,532.03
Index No Ref.: 7 Part Number: 090-166844 Description: Wheel Brush Units Per Assembly: 1 Availability: In Stock Price: $6.98
Index No Ref.: 8 Part Number: 090-166646 Description: Brush Holder Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-988691 Description: Screw, Rd. Hd. Mach. #10-24NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-992386 Description: Washer, Flat #10 S.A.E. Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 135-066959 Description: Dowel Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-980318 Description: Screw, Hex. Hd. Cap 5/16-18NC x 1-1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-991406 Description: Nut, Hex. Jam 3/4 - 10NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 15 Part Number: 091-993782 Description: Washer, Lock 3/4 Shakeproof Ext Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-333161 Description: Spacer (20 GA) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-333179 Description: Spacer (22 GA) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-333187 Description: Spacer (10 GA) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-397126 Description: Bandwheel Assembly(2013-2,2013-20,2012-2A) (See Detail) Units Per Assembly: 1 Availability: In Stock Price: $1,399.65
Index No Ref.: Part Number: 094-089455 Description: Bandwheel Assembly (2012-2H,2012-2H3) (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-444950 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 107-013458 Description: Key Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-982363 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 23 Part Number: 090-040338 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 106-044043 Description: Eccentric Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-042599 Description: Roll Pin Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 26 Part Number: 106-044159 Description: Shift Lever Collar Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-984229 Description: Screw, Soc. Set 1/4-20NC x 1/4 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 135-070811 Description: Belt Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-609792 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-473074 Description: Locking Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-473066 Description: Shifter Lever Sleeve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-473090 Description: Bearing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 090-015124 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-230581 Description: Shift Lever Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-647867 Description: Escutcheon (Caution High-Low) (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-647875 Description: Escutcheon (Caution High-Low) (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-993972 Description: Screw, Rd. Hd. Drive #2 x 1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 090-075060 Description: Grommet Units Per Assembly: 1 Availability: In Stock Price: $9.91
Index No Ref.: 38 Part Number: 091-473082 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 094-084100 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 094-003167 Description: "B" Solenoid Assembly (60 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-003282 Description: "B" Solenoid Assembly (50 Hz) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-003209 Description: "B" Solenoid Assembly (575v, 60 Hz, Mist Coolant)(2012-2H, 2012-2H3 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-971903 Description: Wire, #14 Red (Nylon Jacket) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 091-971879 Description: Wire, #14 White (Nylon Jacket) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 090-145046 Description: 90 Degree Sealtite Connector Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-971564 Description: Sealtite Conduit 1/2" Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 45 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 090-145053 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 091-972448 Description: Wire, #12 Blue (Stranded) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 091-971861 Description: Wire, #12 Flamenal Green w/yellow Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 091-980292 Description: Screw, Hex. Hd. Cap 5/16-18NC x l Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 091-992636 Description: Washer, Flat 5/16 S.A.E. Std. Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 091-991224 Description: Nut, Hex. 5/16-18NC Units Per Assembly: 4 Availability: Call For Info Price:
