Exploded View Parts Ordering: 2012-2H_383

2012-2H 383 Online Parts Manual

Serial No: 383-78101 End Date 383-00452

Return to manuals

Page Code: CM-4-92

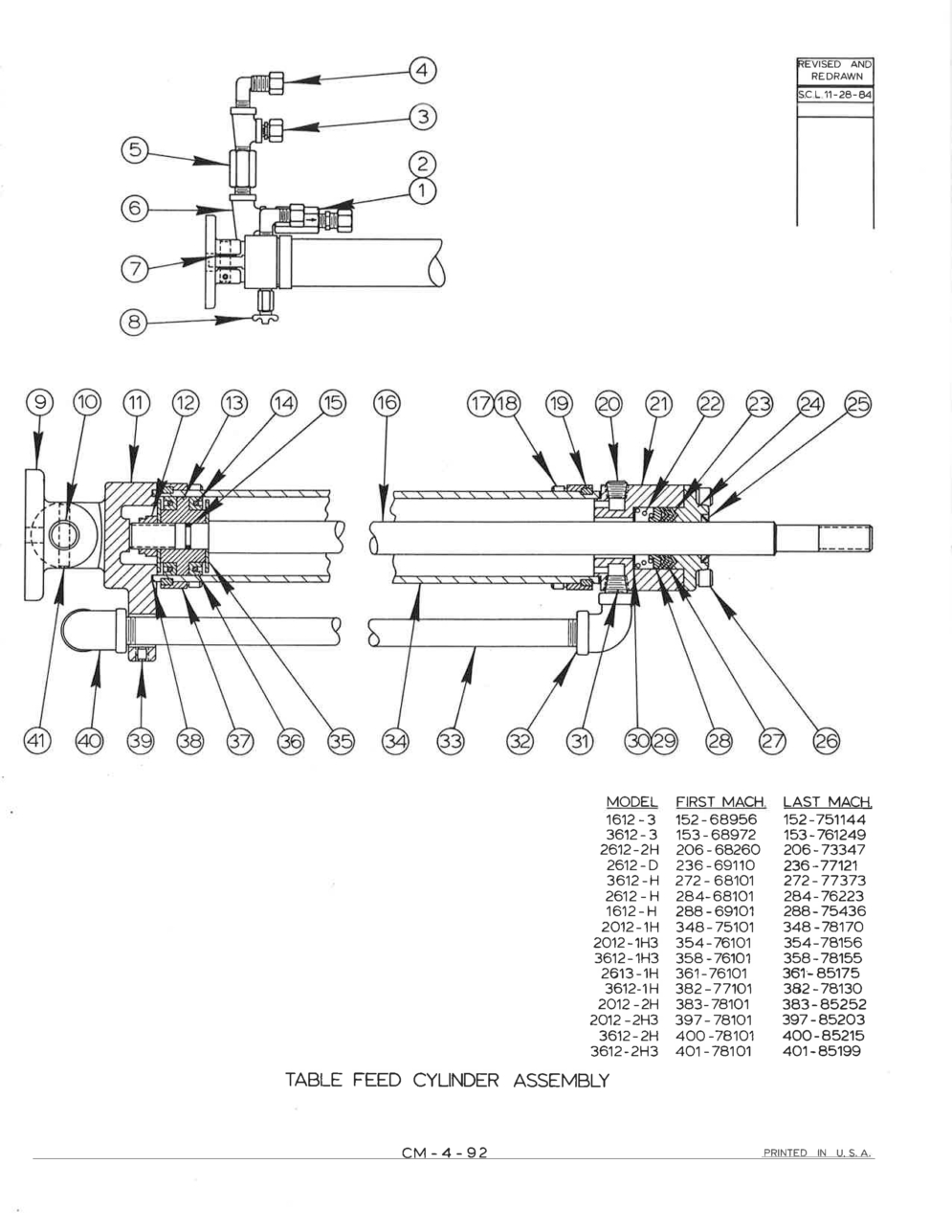

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-410606 Description: Table Feed Cylinder Assembly(Standard) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-481391 Description: Table Feed Cylinder Assembly(Servo-contour Feed) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 090-485178 Description: Table Feed Cylinder Assembly(2612-D Only) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-022459 Description: Check Valve(Servo-contour Feed Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 114-035074 Description: Close Nipple(Servo-contour Feed Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 093-090108 Description: Male Connector(Servo-contour Feed Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 093-090579 Description: 90 Degree Male Elbow(Servo-contour Feed Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 093-034106 Description: Orifice(.033 Dia.)(Servo-contour Feed Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 135-008472 Description: Service Tee(Servo-contour Feed Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 135-008910 Description: Shim(1/32) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-100636 Description: Drain Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-215948 Description: Swivel Base Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-051301 Description: Swivel Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 090-256553 Description: Rear Cylinder Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-127762 Description: Self-locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-076463 Description: Piston Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 090-104357 Description: O-Ring Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 135-091767 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-127721 Description: Piston Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-982421 Description: Screw, Soc. Hd. Cap1/4-20NC x 1 Units Per Assembly: 8 Availability: In Stock Price: $4.20
Index No Ref.: 18 Part Number: 090-035593 Description: Washer, Lock1/4 Hi-collar Units Per Assembly: 12 Availability: In Stock Price: $1.28
Index No Ref.: 19 Part Number: 135-004661 Description: Snap Ring Segment Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-203695 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-256561 Description: Front Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-340753 Description: Front Block(2612-D Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-031732 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-098848 Description: Homo. Chevron Packing Ring Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-031757 Description: End Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-070699 Description: Scraper Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-982397 Description: Screw, Soc. Hd. Cap1/4-20NC x3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-098830 Description: Fab. Chevron Packing Ring Units Per Assembly: 1 Availability: In Stock Price: $3.68
Index No Ref.: 28 Part Number: 090-174541 Description: Back-up Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-333328 Description: Shim(1/64) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-333336 Description: Shim(1/32) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 114-145287 Description: Close Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-203695 Description: Pipe Plug(2612-D Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *32 Part Number: 090-152224 Description: 90 Degree Reducing Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *33 Part Number: 091-165548 Description: Pipe Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-076513 Description: Cylinder Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-025247 Description: Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-101238 Description: U-Cup Units Per Assembly: 2 Availability: In Stock Price: $3.26
Index No Ref.: 37 Part Number: 135-004653 Description: Cylinder Collar Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 135-004638 Description: Gasket Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: *39 Part Number: 091-984245 Description: Screw, Soc. Set1/4-20NC x3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *40 Part Number: 135-005197 Description: 90 Degree Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 090-042615 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: Part Number: Description: *Note: These Items Do Not Apply To Model2612-D Units Per Assembly: Availability: Call For Info Price:
