Exploded View Parts Ordering: 2012-2H_383

2012-2H 383 Online Parts Manual

Serial No: 383-78101 End Date 383-00452

Return to manuals

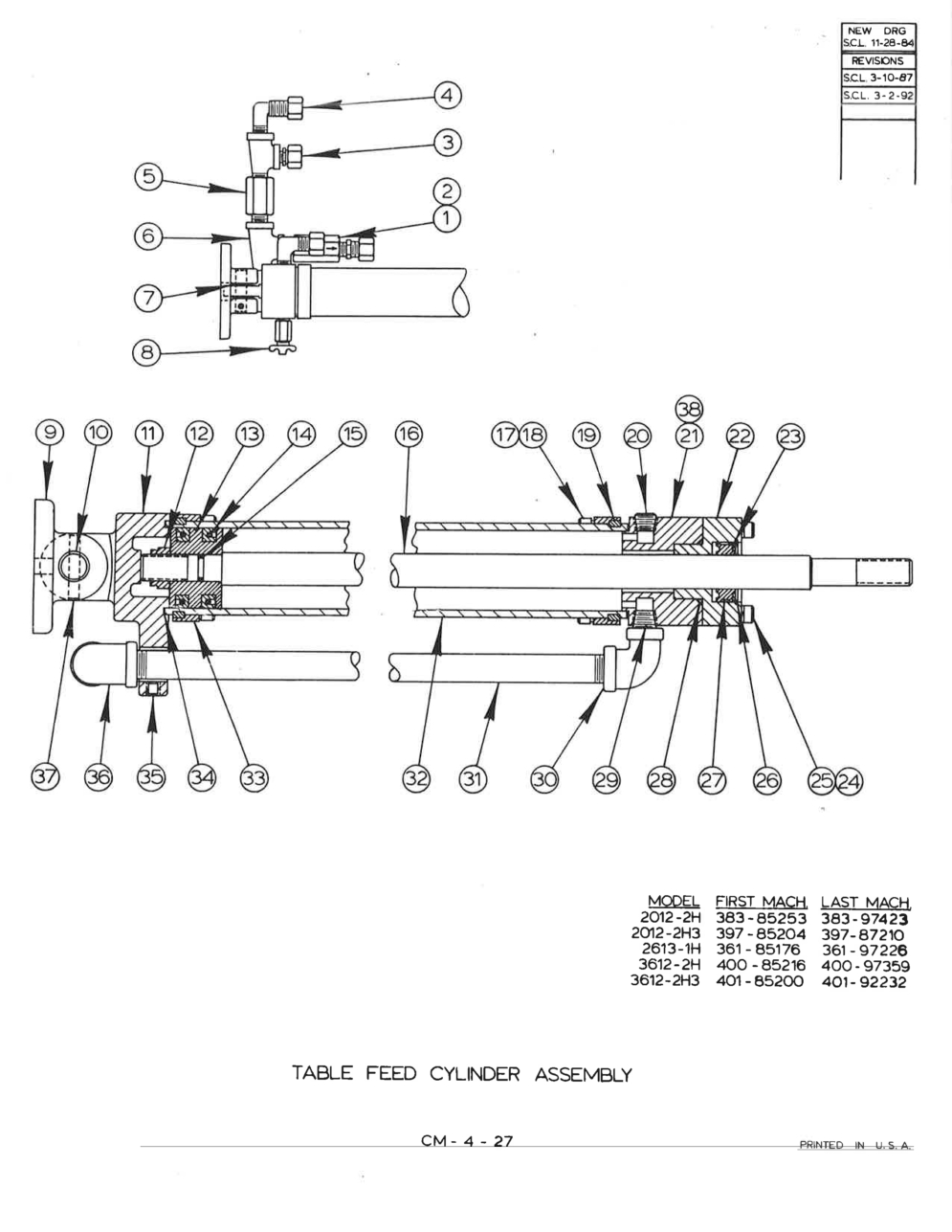

Page Code: CM-4-27

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 094-132503 Description: Table Feed Cylinder Assembly (Standard) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 094-132495 Description: Table Feed Cylinder Assembly (Servo-Contour Feed) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-022459 Description: Check Valve (Servo-Contour Feed Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 114-035074 Description: Close Nipple (Servo-Contour Feed Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 093-090108 Description: Male Connector (Servo-Contour Feed Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 093-090579 Description: 90 Degree Male Elbow (Servo-Contour Feed Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 093-034106 Description: Orifice (.033 Dia.) (Servo-Contour Feed Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 135-008472 Description: Service Tee (Servo-Contour Feed Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 135-008910 Description: Shim (1/32) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-100636 Description: Drain Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-215948 Description: Swivel Base Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-051301 Description: Swivel Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 090-256553 Description: Rear Cylinder Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-127762 Description: Self-locknut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 093-138675 Description: Piston Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-693739 Description: Piston Seal Units Per Assembly: 2 Availability: In Stock Price: $17.22
Index No Ref.: 15 Part Number: 135-091767 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-127721 Description: Piston Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-982421 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1 Units Per Assembly: 8 Availability: In Stock Price: $4.20
Index No Ref.: 18 Part Number: 090-035593 Description: Washer, Lock 1/4 Hi-collar Units Per Assembly: 8 Availability: In Stock Price: $1.28
Index No Ref.: 19 Part Number: 135-004661 Description: Snap Ring Segment Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-203695 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 093-138683 Description: Cylinder Head Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 093-129054 Description: Seal Retainer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-592220 Description: Back-up Washer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-982256 Description: Screw, Soc. Hd. Cap 5/16-18NC x 1 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-019936 Description: Washer, Lock 5/16 Hi-collar Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-000620 Description: Retaining Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-592238 Description: Seal Wiper Units Per Assembly: 1 Availability: In Stock Price: $31.14
Index No Ref.: 28 Part Number: 091-157875 Description: O-Ring Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 29 Part Number: 114-145287 Description: Close Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 090-152224 Description: 90 Degree Reducing Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-165548 Description: Pipe Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 093-138667 Description: Cylinder Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 135-004653 Description: Cylinder Collar Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 135-004638 Description: Gasket Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 35 Part Number: 091-984245 Description: Screw, Soc. Set 1/4-20NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 135-005197 Description: 90 Degree Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 090-042615 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
