Exploded View Parts Ordering: 2012-2H3_397

2012-2H3 397 Online Parts Manual

Serial No: 397-78101 End Date 397-87210

Return to manuals

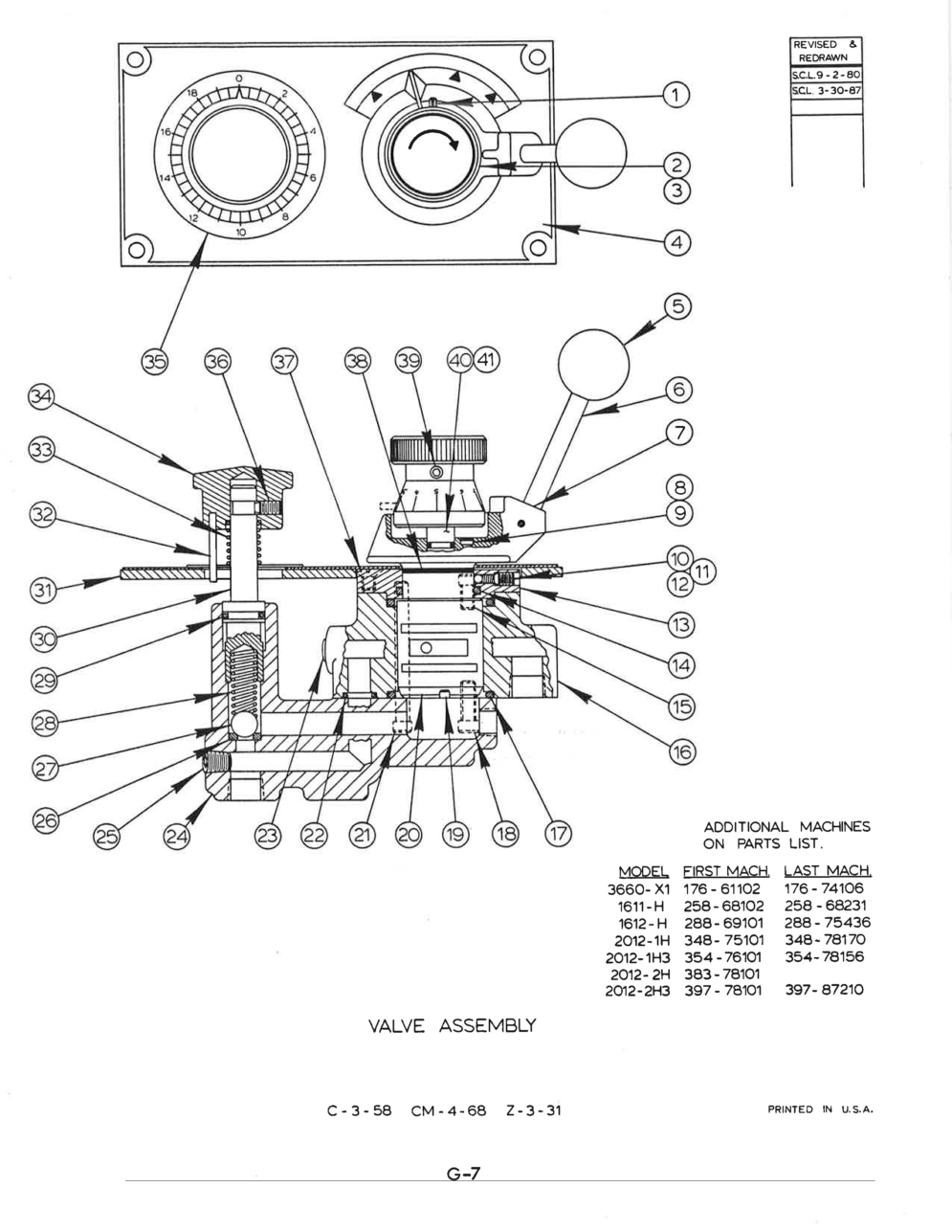

Page Code: CM-4-68

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 090-433236 Description: Valve Assembly (Standard) (English) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 094-099710 Description: Valve Assembly (Standard) (International) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-042292 Description: Roll Pin Units Per Assembly: 2 Availability: In Stock Price: $4.20
Index No Ref.: 2 Part Number: 090-106527 Description: Knob Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-106626 Description: Knob Escutcheon (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-004499 Description: Knob Escutcheon (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-251869 Description: Dial Plate (English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-356973 Description: Dial Plate (International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 135-135086 Description: Knob Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 090-113788 Description: Lever Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-247578 Description: Knob Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-982140 Description: Screw, Soc. Hd. Cap #8-32NC x 3/4 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 090-022385 Description: Washer, Lock #8 Hi-Collar Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 135-015189 Description: Steel Ball Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 114-002504 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-144659 Description: Screw, Soc. Set 1/4-20NC x 3/8 (Nyloc) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-251794 Description: Valve Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 135-098598 Description: O-Ring Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-982363 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1/2 Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 16 Part Number: 090-433095 Description: Valve Housing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-015082 Description: O-Ring Units Per Assembly: 2 Availability: In Stock Price: $1.28
Index No Ref.: 18 Part Number: 091-982397 Description: Screw, Soc. Hd. Cap 1/4-20 NC x 3/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-042516 Description: Roll Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-247552 Description: Valve Spool Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-982504 Description: Screw, Soc. Hd. Cap 1/4-20NC x 2-3/4 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 090-033705 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-203695 Description: Pipe Plug Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 090-523044 Description: Pressure Valve Housing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-227488 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-147470 Description: Ball Seat Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 135-056570 Description: Steel Ball Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 135-091734 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 135-085413 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 090-098849 Description: Valve Screw Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 090-251851 Description: Valve Panel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 090-042367 Description: Roll Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 090-051939 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 090-071549 Description: Knob Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 090-051913 Description: Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-984254 Description: Screw, Soc. Set 1/4-20NC x 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-987586 Description: Screw, Flat Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 090-103755 Description: Gasket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-984245 Description: Screw, Soc. Set 1/4-20NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 090-247511 Description: Vernier Spool Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 135-091767 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: NOTE: Also used on models with portable control units and HB. tables: Zephyrs 31-541420 thru 31-682516, 2612-1H3, 2613-3, 3613-2, 3612-3, 6013-3, 6013-H3, ZS-3620, ZV-3620, ZW-3620 Units Per Assembly: Availability: Call For Info Price:
