Exploded View Parts Ordering: 2012-2H3_397

2012-2H3 397 Online Parts Manual

Serial No: 397-78101 End Date 397-87210

Return to manuals

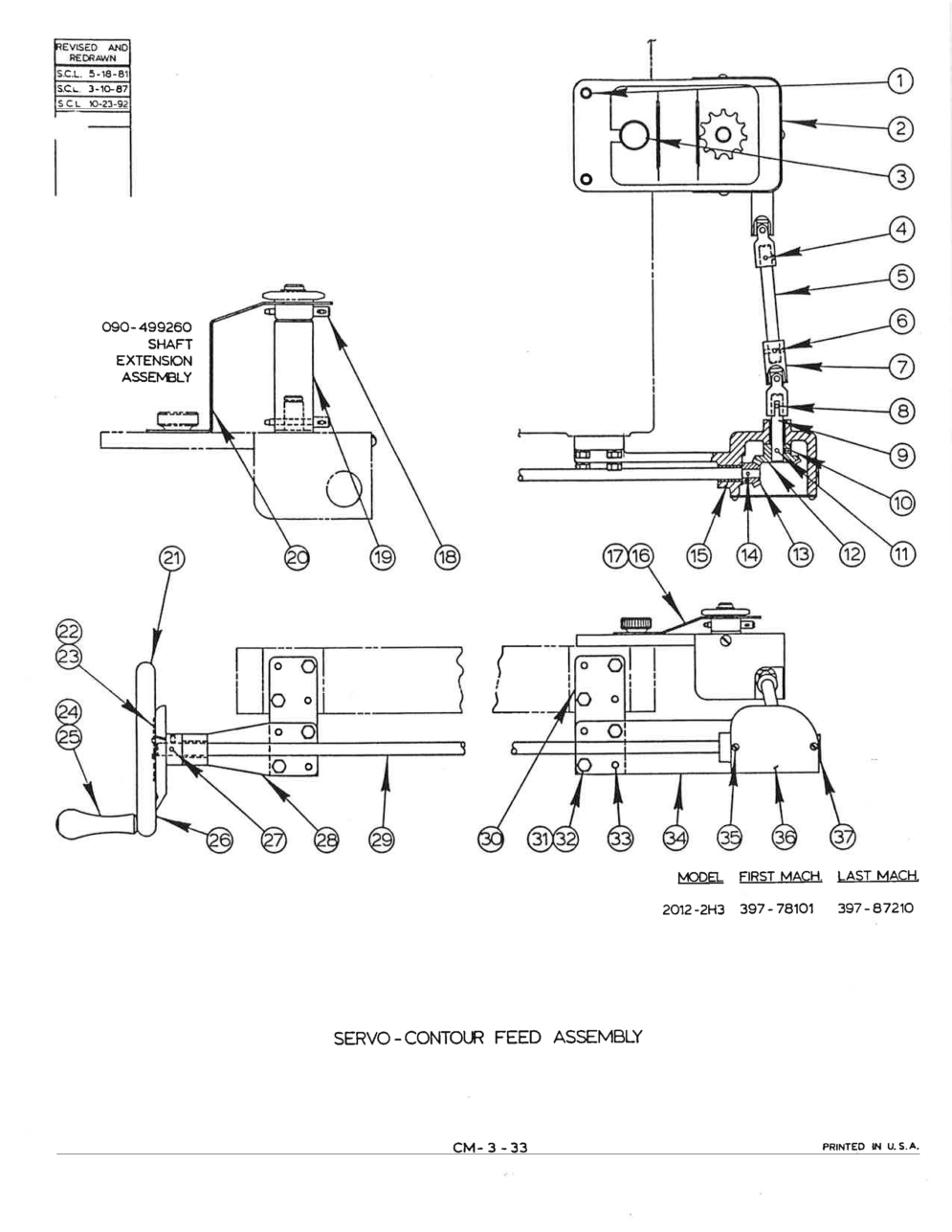

Page Code: CM-3-33

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 081-532988 Description: Servo-Contour Feed Assembly (2012-2H3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-107269 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-479312 Description: Contour Attachemnt Sub-Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-597732 Description: Thumb Screw Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-982819 Description: Screw, Soc. Hd. Cap 3/8-16NC x1-1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-597724 Description: Knob Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-042573 Description: Roll Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-087601 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-984229 Description: Screw, Soc. Set 1/4-20NC x 1/4 Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-396911 Description: Universal Joint Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-042441 Description: Roll Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-095257 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-984104 Description: Screw, Soc. Set #10-24NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 090-042607 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 12 Part Number: 090-144353 Description: Bevel Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-144346 Description: Bevel Gear Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 090-042433 Description: Roll Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 135-006476 Description: Oilite Bearing Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-499138 Description: Chain Guide Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-499260 Description: Shaft Extension Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 091-085365 Description: Pin Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-362385 Description: Shaft Extension Units Per Assembly: i Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-499187 Description: Chain Guide Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-486440 Description: Servo Handwheel Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-114280 Description: Name Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-993972 Description: Screw, Rd. Hd. Drive #2 x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-181164 Description: Handle Units Per Assembly: 1 Availability: In Stock Price: $50.38
Index No Ref.: 25 Part Number: 091-181172 Description: Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 090-486432 Description: Handwheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 090-042615 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 28 Part Number: 090-202052 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-086223 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-086231 Description: Adaptor Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-980300 Description: Screw, Hex. Hd. Cap 5/16-18NC x 1-1/4 Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-993238 Description: Washer, Lock 5/16 Std Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-338756 Description: Dowel Pin Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 090-202045 Description: Gear Box Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-988386 Description: Screw, Rd. Hd. Mach. #6-32NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 090-016965 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 090-033259 Description: Plug Button Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: Part Number: Description: FOLLOWING NOT SHOWN: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 135-050136 Description: Chain Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
