Exploded View Parts Ordering: 2012-2H3_397

2012-2H3 397 Online Parts Manual

Serial No: 397-78101 End Date 397-87210

Return to manuals

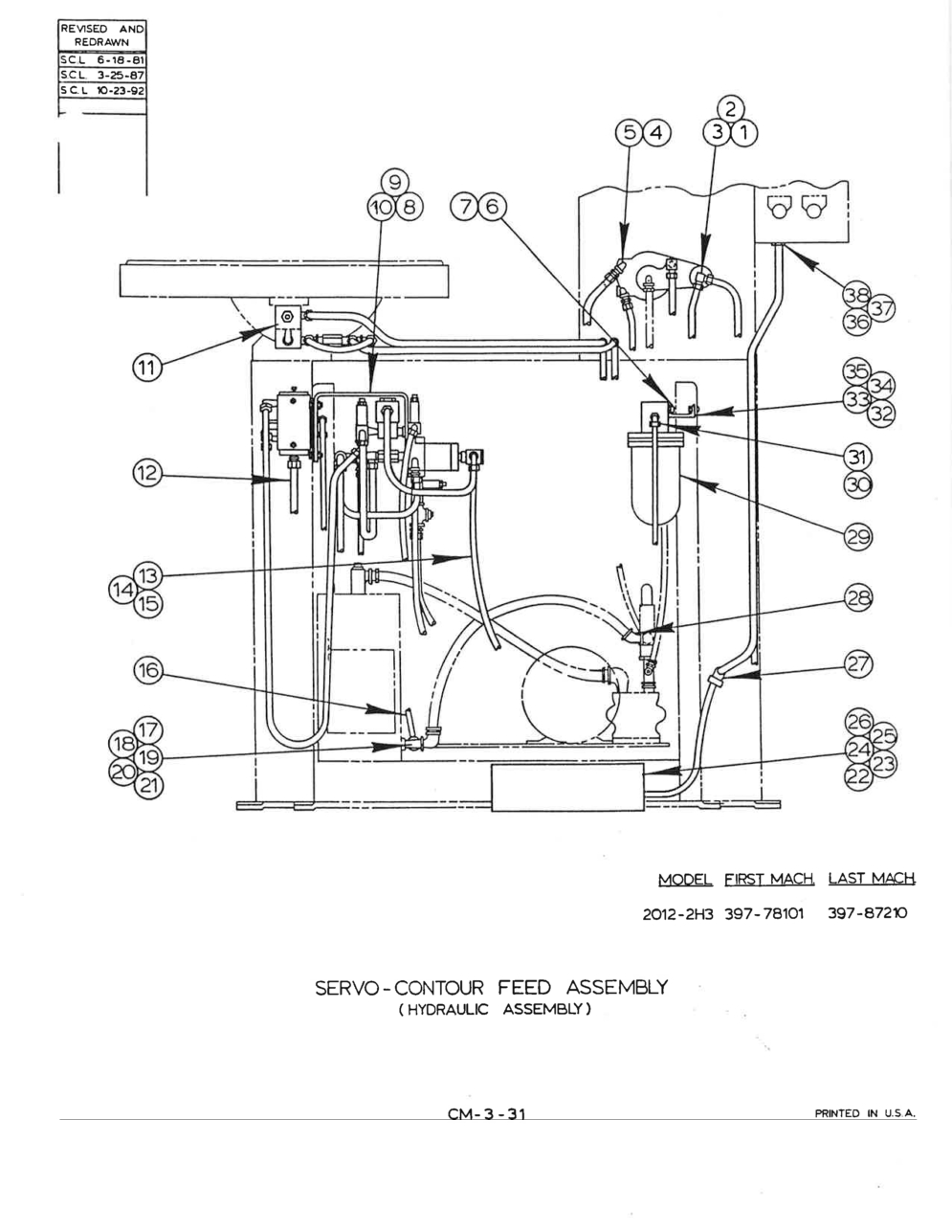

Page Code: CM-3-31

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 085-097988 Description: Servo-Contour Feed Assembly (Hydraulic Assembly) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 135-008472 Description: Service Tee Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 093-090108 Description: Male Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 093-090579 Description: 90 Degrees Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 105-115133 Description: 90 Degrees Street Elbow Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 093-090124 Description: Male Connector Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-982785 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-993329 Description: Washer, Lock 3/8 Std Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 095-052015 Description: Valve Manifold Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-980086 Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/4 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-993212 Description: Washer, Lock 1/5 Std. Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 11* Part Number: 094-132495 Description: Table Feed Cylinder Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-972653 Description: Nylon Tubing 3/8 O.D. Units Per Assembly: A.R. Availability: In Stock Price: $3.64
Index No Ref.: 13 Part Number: 091-971564 Description: Sealtite Conduit 1/2 I.D Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 14 Part Number: 091-974147 Description: Wire, #14 Red (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-974121 Description: Wire, #14 White (19 Strand) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-972646 Description: Nylon Tubing 1/4 O.D. Units Per Assembly: A.R. Availability: In Stock Price: $1.34
Index No Ref.: 17 Part Number: 105-115174 Description: Hex. Reducer Bushing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 135-009827 Description: Service Tee Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 114-035074 Description: Close Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 093-034106 Description: Orifice (.033 Dia.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 093-090058 Description: Male Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-329276 Description: Foot Switch Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-329268 Description: Foot Switch Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-298885 Description: Escutcheon (Reverse) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-298877 Description: Escutcheon (Forward) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-993964 Description: Screw, Rd. Hd. Drive #2 x 3/16 Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 090-151424 Description: 90 Degrees Cord Grip Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 090-022318 Description: 45 Degrees Street Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-211128 Description: Oil Filter (Schroeder Bros) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-211136 Description: Filter Element Units Per Assembly: 1 Availability: In Stock Price: $60.34
Index No Ref.: 30 Part Number: 093-090595 Description: 90 Degrees Male Elbow Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-223685 Description: Hex. Reducer Bushing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-211193 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-990283 Description: Screw, Truss Hd. Mach. 5/16-18NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-991224 Description: Nut, Hex. 5/16-18NC Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 090-107897 Description: Cord Grip Connector (Far Side) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-145053 Description: O-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Item #11 was 090-481391 before serial #383-85253 on 2012-2H and serial #397-85203 on 2012-2H3.1 Units Per Assembly: Availability: Call For Info Price:
