Exploded View Parts Ordering: 2012-2H3_397

2012-2H3 397 Online Parts Manual

Serial No: 397-78101 End Date 397-87210

Return to manuals

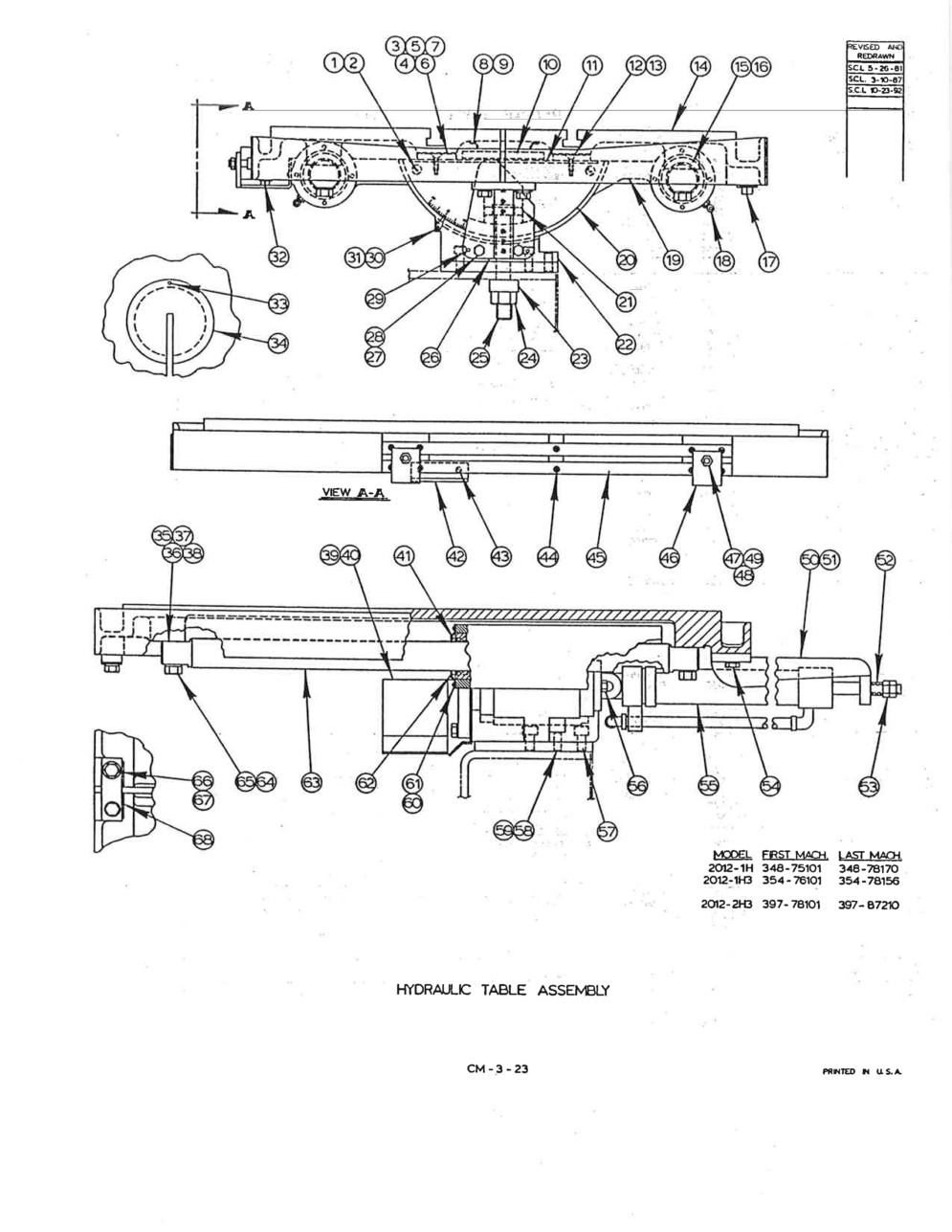

Page Code: CM-3-23

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 095-045175 Description: Hydraulic Table AssemblY (2012-1H, 2012-2H) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 095-032231 Description: Hydraulic Table Assembly (2012-1H3, 2012-2H3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-988931 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-993568 Description: Washer, Lock 1/4 Shakeproot Int. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-115527 Description: Shim (.003) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-115535 Description: Shim (.005) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-115543 Description: Shim (.008) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-115550 Description: Shim (.0149) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-115568 Description: Shim (.002) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-202797 Description: Drip Strip (2012-1H3, 2012-2H3 Only) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-993998 Description: Screw, Rd. Hd. Drive #4 x 1/4 (2012-1H3, 2012-2H3 Only) Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 090-410721 Description: Pan Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 090-342122 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-342296 Description: Way Bar Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-983205 Description: Screw, Flat Hd. Soc. 1/4-20NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 095-013801 Description: Table Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 090-036478 Description: Ball Bushing Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-782714 Description: Spacer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 135-065803 Description: Pipe Plug (2012-1H, 2012-2H Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-087909 Description: 90 Degrees Lube Fitting Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 090-507914 Description: Trunnion Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-216219 Description: Trunnion Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-394644 Description: Head Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 090-409038 Description: Cradle Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 090-105016 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-991414 Description: Nut, Hex. 3/4-16NF Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-981068 Description: Screw. Hex. Hd. Cap 3/4-16NF x 5 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 090-242413 Description: Keeper Block Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-980474 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1-1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-993329 Description: Washer, Lock 3/8 Std. Units Per Assembly: 9 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-338756 Description: Dowel Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 134-033158 Description: Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-988386 Description: Screw, Rd. Hd. Mach. #6-32NC x 1/4 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 106-335185 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 090-042094 Description: Roll Pin Units Per Assembly: 1 Availability: In Stock Price: $1.28
Index No Ref.: 34 Part Number: 090-104902 Description: Center Plate Units Per Assembly: 1 Availability: In Stock Price: $108.83
Index No Ref.: 35 Part Number: 091-333104 Description: Shim (.035) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-333112 Description: Shim (.0149) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-333120 Description: Shim (.005) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-333138 Description: Shim (.003) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 090-410937 Description: Chip Guard Assembly (2012-1H3, 2012-2H3 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 090-450800 Description: Chip Guard Assembly (w/Handle) (2012-1H3, 2012-2H3 Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-655076 Description: Rod Wiper Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 090-095035 Description: Stop Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 091-988956 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-982215 Description: Screw, Soc. Hd. Cap #10-24NC x 5/8 Units Per Assembly: 10 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 090-239674 Description: Slide Bar Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 090-095043 Description: Dog Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 090-093923 Description: T-Bolt 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 49 Part Number: 091-991224 Description: Nut, Hex, 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 50 Part Number: 090-410614 Description: Cylinder Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 51 Part Number: 090-062910 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 52 Part Number: 090-119520 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 53 Part Number: 091-991349 Description: Nut, Hex. Jam 1/2-20NF Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 54 Part Number: 091-980441 Description: Screw, Hex. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 55 Part Number: 094-132503 Description: Table Feed Cylinder Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 56 Part Number: 091-980276 Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 57 Part Number: 091-982918 Description: Screw, Soc. Hd. Cap 1/2-13NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 58 Part Number: 135-004455 Description: Dowel Pin (1-1/2" Long) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 59 Part Number: 090-163510 Description: Dowel Pin (1" Long) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 60 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 20 Availability: Call For Info Price:
Index No Ref.: 61 Part Number: 091-993196 Description: Washer, Lock #10 Std. Units Per Assembly: 16 Availability: Call For Info Price:
Index No Ref.: 62 Part Number: 090-051764 Description: Retainer Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 63 Part Number: 090-216128 Description: Guide Rod Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 64 Part Number: 091-980698 Description: Screw, Hex. Hd. Cap 1/2-13NC x 2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 65 Part Number: 091-993279 Description: Washer, Lock 1/2 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 66 Part Number: 091-980466 Description: Screw, Hex. Hd. Cap 3/8-16NC x 1 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 67 Part Number: 091-992644 Description: Washer, Flat 3/8 S.A.E. Std. Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: Part Number: Description: *NOTE: #55 was #090-410606 Before Serial #383-85253 On 2012-2H and #397-85204 On 2012-2H3 and All 2012-1H, 2012-1H3 Models. Units Per Assembly: Availability: Call For Info Price:
