Exploded View Parts Ordering: 2012-2H3_397

2012-2H3 397 Online Parts Manual

Serial No: 397-78101 End Date 397-87210

Return to manuals

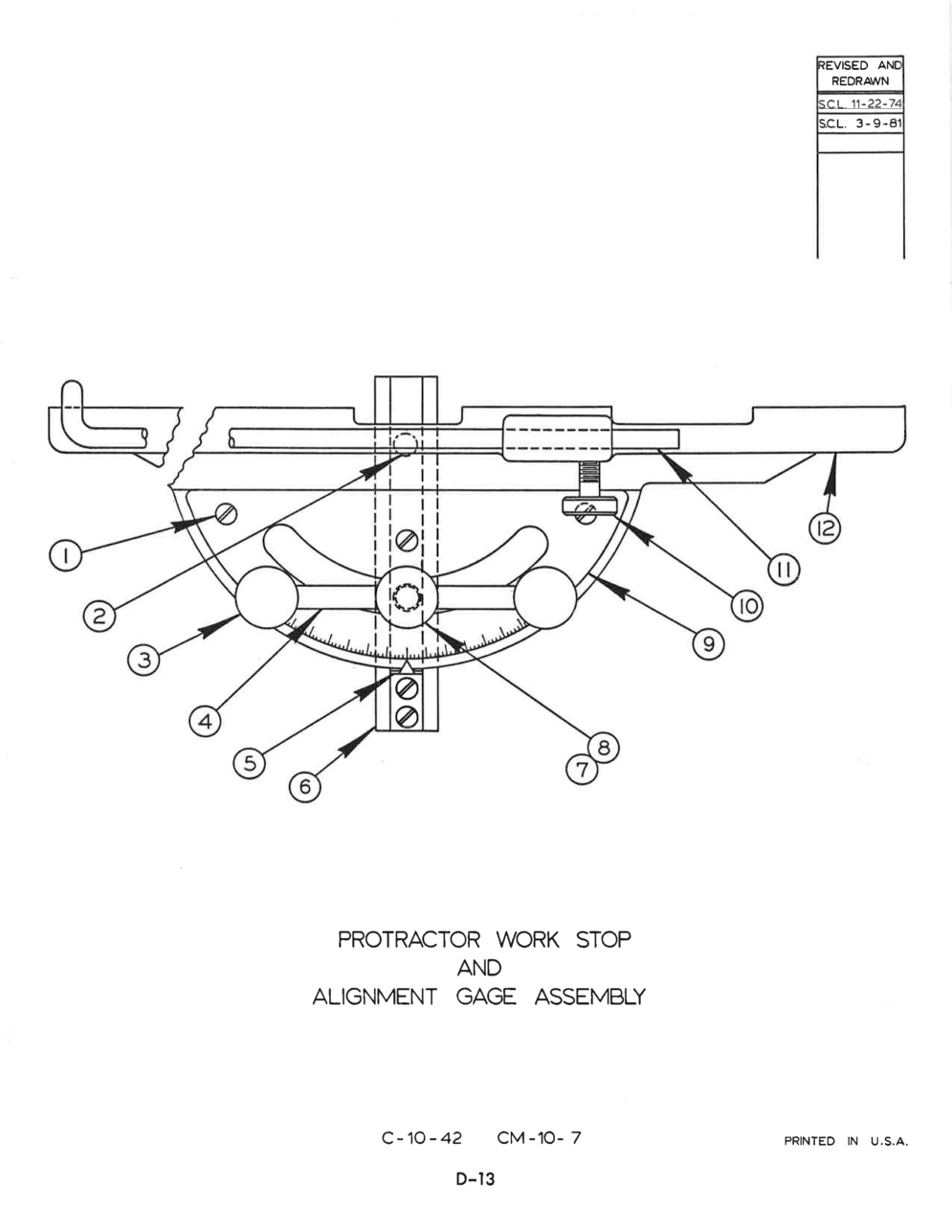

Page Code: CM-10-7

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 080-514953 Description: Protractor Work Stop & Alignment Gage Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 080-547581 Description: Protractor Work Stop & Alignment Gage Assembly (26-HB2 Only) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-988675 Description: Screw, Rd. Hd. Mach. #10-24NC x 3/8 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 114-004732 Description: Dowel Pin Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-339713 Description: Knob Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-116344 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-116336 Description: Pointer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 090-253022 Description: Tee Nut (Assembly 080-514953) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-291626 Description: Tee Nut (Assembly 080-547581) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-116351 Description: Stud (Assembly 080-514953) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-011189 Description: Stud (Assembly 080-547581) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-992651 Description: Washer, Flat 7/16 S.A.E. Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 135-016145 Description: Protractor Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 134-174010 Description: Thumbscrew Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 135-019768 Description: Gage Rod Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-514969 Description: Mitre Head Units Per Assembly: 1 Availability: Call For Info Price:
