Exploded View Parts Ordering: 2012-2H3_397

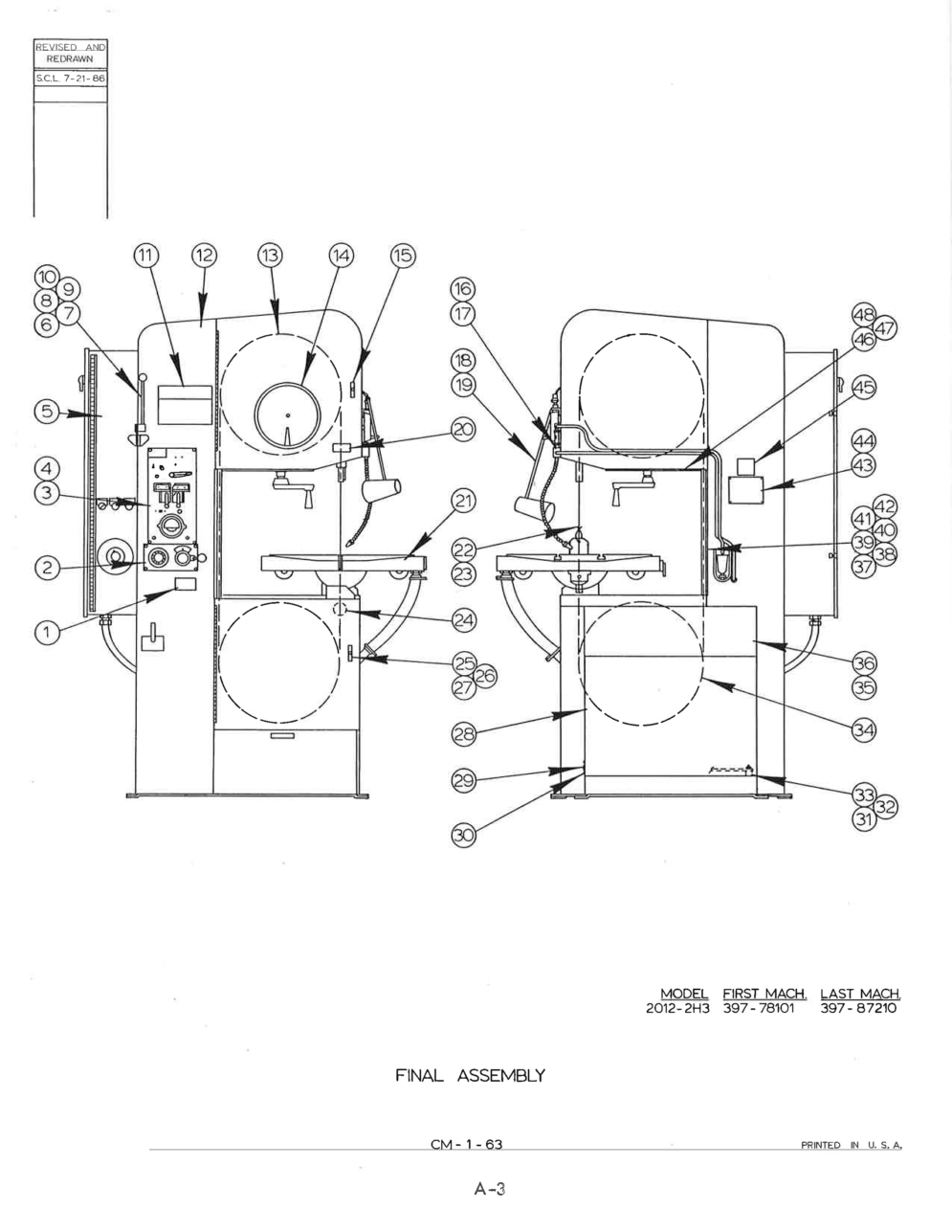

2012-2H3 397 Online Parts Manual

Serial No: 397-78101 End Date 397-87210

Return to manuals

Page Code: CM-1-63

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 390065 Description: Final Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-458828 Description: Escutcheon (Caution)(English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-496679 Description: Escutcheon (Caution)(International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 095-061834 Description: Hydraulic Assembly (Standard)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 085-097988 Description: Hydraulic Assembly (Servo-Contour Feed)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: Description: Buttwelder Assembly (See Welder Manual) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-990192 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 8 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: Description: Electrical Assembly (Control Box Assembly)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-318071 Description: Blade Shear Assembly (See Welder Manual) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-467209 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-211276 Description: Nutsert 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-980276 Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 094-044765 Description: Escutcheon (Warning) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *12 Part Number: 095-083309 Description: Frame Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 095-049953 Description: Head Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 090-468178 Description: Job Selector Assembly (Inch/English)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-060829 Description: Job Selector Assembly (Metric/International)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-545798 Description: Handle Assembly Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-081166 Description: 90 Degrees Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 095-062709 Description: Recirculating Mist Coolant Assemby (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 094-061413 Description: Worklamp Mounting Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *19 Part Number: 091-688424 Description: Lamp Assembly Units Per Assembly: 1 Availability: In Stock Price: $225.00
Index No Ref.: 20 Part Number: 091-310334 Description: Escutcheon (Warning)(English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-314088 Description: Escutcheon (Warning)(International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 095-032231 Description: Hydraulic Table Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *22 Part Number: 091-715086 Description: Saw Band (Imperial Bi-Metal Super Silencer) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 093-045250 Description: Saw Band Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-086017 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-547802 Description: Handle Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 105-021018 Description: Door Latch Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-984229 Description: Screw, Soc. Set 1/4-20NC x 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 094-111440 Description: Bottom Drive Cover Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 090-123373 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 090-031154 Description: Plug Button Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-426353 Description: Cylinder Mount Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-991224 Description: Nut, Hex. 5/16-18NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 095-083812 Description: Drive Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 095-088530 Description: Top Drive Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-980052 Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: *37 Part Number: 094-064011 Description: Saw Band Guard (Column) Units Per Assembly: 1 Availability: In Stock Price: $466.59
Index No Ref.: 38 Part Number: 091-092940 Description: Shim (.065) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-980052 Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 091-993212 Description: Washer, Lock 1/4 Std. Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 41 Part Number: 091-988972 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 091-993741 Description: Washer, Lock 1/4 Shakeproof Ext Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 093-065910 Description: Escutcheon (Machine Spec's.)(English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-078186 Description: Escutcheon (Machine Spec's.)(International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-993972 Description: Screw, Rd. Hd. Drive #2 x 1/4 Units Per Assembly: 12 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 091-292730 Description: Escutcheon (Patent No.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 46 Part Number: 094-073863 Description: Pan Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 47 Part Number: 091-988519 Description: Screw, Rd. Hd. Mach. #8-32NC x 1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 48 Part Number: 091-993386 Description: Washer, Lock #8 Std. (Cad. Pltd.) Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *Note: See Extra Work Height Assembly If Applicable. Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 094-068715 Description: Instruction Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-406934 Description: Saw Guide Insert Pack (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-048430 Description: Upper Saw Guide Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-048445 Description: Lower Saw Guide Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-185000 Description: Upper Saw Guide Holding Screw Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-982462 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-3/4 (Lower Guide) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-108531 Description: Wrench (Table Tilt) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-995688 Description: Hex. Key 3/16" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 071-521363 Description: Instruction Manual Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 071-521371 Description: Parts Manual Units Per Assembly: 1 Availability: Call For Info Price:
