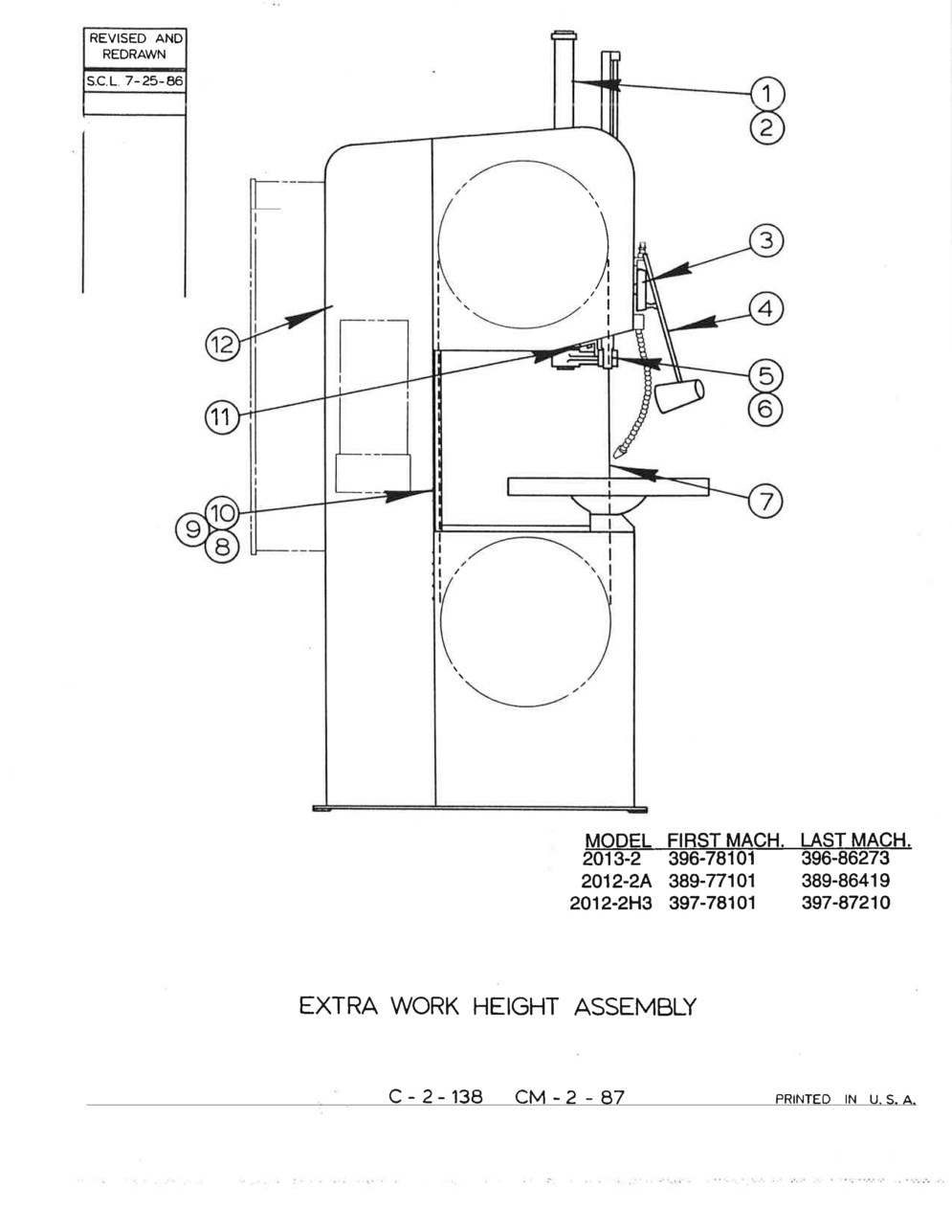

Exploded View Parts Ordering: 2012-2A_389

2012-2A 389 Online Parts Manual

Serial No: 389-77101 End Date 389-86419

Page Code: C-2-138

Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 081-533010 Description: 6" Extra Work Height Assembly(2019-2,2019-20,2018-2A,2018-2H) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 081-533028 Description: 12" Extra Work Height Assembly(2025-2,2025-20,2024-2A,2024-2H) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 081-533044 Description: 18" Extra Work Height Assembly(2031-2,2031-20,2030-2A,2030-2H) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 081-529547 Description: 6" Extra Work Height Assembly(2018-2H3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 081-533036 Description: 12" Extra Work Height Assembly(2024-2H3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Ref. Part Number: 081-533069 Description: 18" Extra Work Height Assembly(2030-2H3) Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 095-061495 Description: Auxiliary Post Support Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 093-056588 Description: Auxiliary Post (6" Extra Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-056596 Description: Auxiliary Post (12" Extra Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-056604 Description: Auxiliary Post (18" Extra Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 094-078607 Description: Post Elevating Assembly (6" Extra Work Height)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-077294 Description: Post Elevating Assembly (12" Extra Work-Height)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-076189 Description: Post Elevating Assembly (18" Extra Work Height)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-688432 Description: Lamp Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 093-064368 Description: Saw Band Guard Assembly (6" Extra Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-063121 Description: Saw Band Guard Assembly (12" Extra Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-055085 Description: Saw Band Guard Assembly (18" Extra Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-053041 Description: Roll Pin(12" and18" Extra Work. Heights Only) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-715094 Description: Saw Band(Super Silencer)(6" Extra Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-715102 Description: Saw Band(Super Silencer)(12" Extra Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-715110 Description: Saw Band(Super Silencer)( Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 094-071420 Description: Saw Band Guard (Column)(6" Extra Work Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-071438 Description: Saw Band Guard (Column)(12" Extra Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-071446 Description: Saw Band Guard (Column)(18" Extra Work Height) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-980052 Description: Screw, Hex. Hd. Cap1/4-20NC x3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-993212 Description: Washer, Lock1/4 Std Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: *11 Part Number: 093-055184 Description: Guard Slide(Post)(8-5/8") Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: * Part Number: 093-055192 Description: Guard Slide(Post)(14-5/8") Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: * Part Number: 093-055200 Description: Guard Slide(Post)(20-5/8") Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 095-074704 Description: Frame Weldment(2019-2,2019-20,2018-2A,2018-2H) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 095-074720 Description: Frame Weldment(2025-2,2025-20,2024.-2A,2024-2H) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 095-074746 Description: Frame Weldment(2031-2,2031-20,2030-2A,2030-2H) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 095-074712 Description: Frame Weldment(2018-2H3) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 095-074738 Description: Frame Weldment(2024-2H3) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 095-074753 Description: Frame Weldment(2030-2H3) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: Use These Interchangeable Guard Slides When Applicable Be Sure To Use The Guard Slide That Will Cover Exposed Saw Band Completely. Units Per Assembly: Availability: Call For Info Price:
