Exploded View Parts Ordering: 2012-2A_389

2012-2A 389 Online Parts Manual

Serial No: 389-77101 End Date 389-86419

Return to manuals

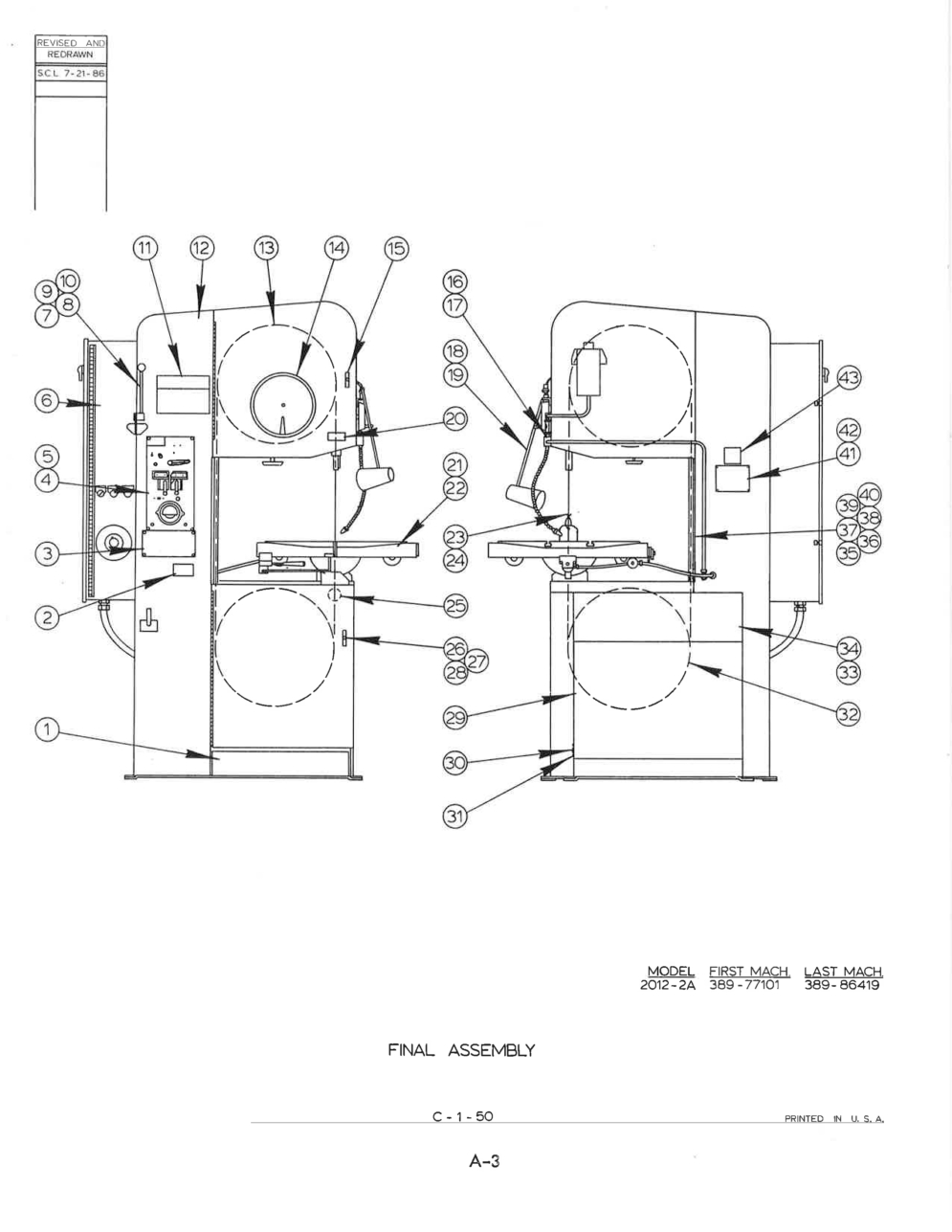

Page Code: C-1-50

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 290107 Description: Final Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 094-044674 Description: Chip Box Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-458828 Description: Escutcheon(Caution)(English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-496679 Description: Escutcheon(Caution)(International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-187039 Description: Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: Description: Buttwelder Assembly(See Welder Manual) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-990192 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 12 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: Description: Electrical Assembly(Control Box Assembly)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-318071 Description: Blade Shear Assembly(See Welder Manual) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-467209 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-211276 Description: Nutsert 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-980276 Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 094-044765 Description: Escutcheon(Warning) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *12 Part Number: 095-083291 Description: Frame Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 095-046306 Description: Head Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 090-468178 Description: Job Selector Assembly(Inch/English)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 094-060829 Description: Job Selector Assembly(Metric/International)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-545798 Description: Handle Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-081166 Description: 90 Degree Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 095-058749 Description: Mist Coolant Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 094-061413 Description: Worklamp Mounting Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *19 Part Number: 091-688424 Description: Lamp Assembly Units Per Assembly: 1 Availability: In Stock Price: $225.00
Index No Ref.: 20 Part Number: 091-310334 Description: Escutcheon(Warning)(English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-314088 Description: Escutcheon(Warning)(International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 095-038261 Description: Sliding Table Assembly(Air Feed)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 093-066322 Description: Guard Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-715086 Description: Saw Band(Imperial Bi-Metal Super Silencer) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 093-045250 Description: Saw Band Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-086017 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-547802 Description: Handle Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 105-021018 Description: Door Latch Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-984229 Description: Screw, Soc. Set 1/4-20NC x1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 094-111440 Description: Bottom Drive Cover Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 090-123373 Description: Plug Button Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 090-031154 Description: Plug Button Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 095-083820 Description: Drive Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 095-088530 Description: Top Drive Cover Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-980052 Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: *35 Part Number: 094-064011 Description: Saw Band Guard (Column) Units Per Assembly: 1 Availability: In Stock Price: $466.59
Index No Ref.: 36 Part Number: 091-092940 Description: Shim (0.065) Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-980052 Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 091-993212 Description: Washer, Lock 1/4 Std Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 39 Part Number: 091-988972 Description: Screw, Rd. Hd. Mach. 1/4-20NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 091-993741 Description: Washer, Lock 1/4 Shakeproof Ext Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 093-065910 Description: Escutcheon(Machine Spec's.)(English) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 093-078186 Description: Escutcheon(Machine Spec's.)(International) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 091-993972 Description: Screw, Rd. Hd. Drive #2 x 1/4 Units Per Assembly: 12 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 091-292730 Description: Escutcheon (Patent No.) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *Note: See Extra Work Height Assembly If Applicable Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 094-068715 Description: Instruction Tag Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-993238 Description: Washer, Lock 5/16 Std Units Per Assembly: 14 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-041419 Description: Saw Guide Insert Pack(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-280819 Description: H.S. Upper Saw Guide Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-280827 Description: H.S. Lower Saw Guide Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-185000 Description: Upper Saw Guide Holding Screw Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-982462 Description: Screw, Soc. Hd. Cap 1/4-20NC x 1-3/4 (Lower Guide) Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-108531 Description: Wrench (Table Tilt) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-995688 Description: Hex. Key 3/16" Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 071-477939 Description: Instruction Manual Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 071-477947 Description: Parts Manual Units Per Assembly: 1 Availability: Call For Info Price:
