Exploded View Parts Ordering: 2012-1H_348

2012-1H 348 Online Parts Manual

Serial No: 348-75101 End Date 348-78170

Return to manuals

Page Code: CM-5-58

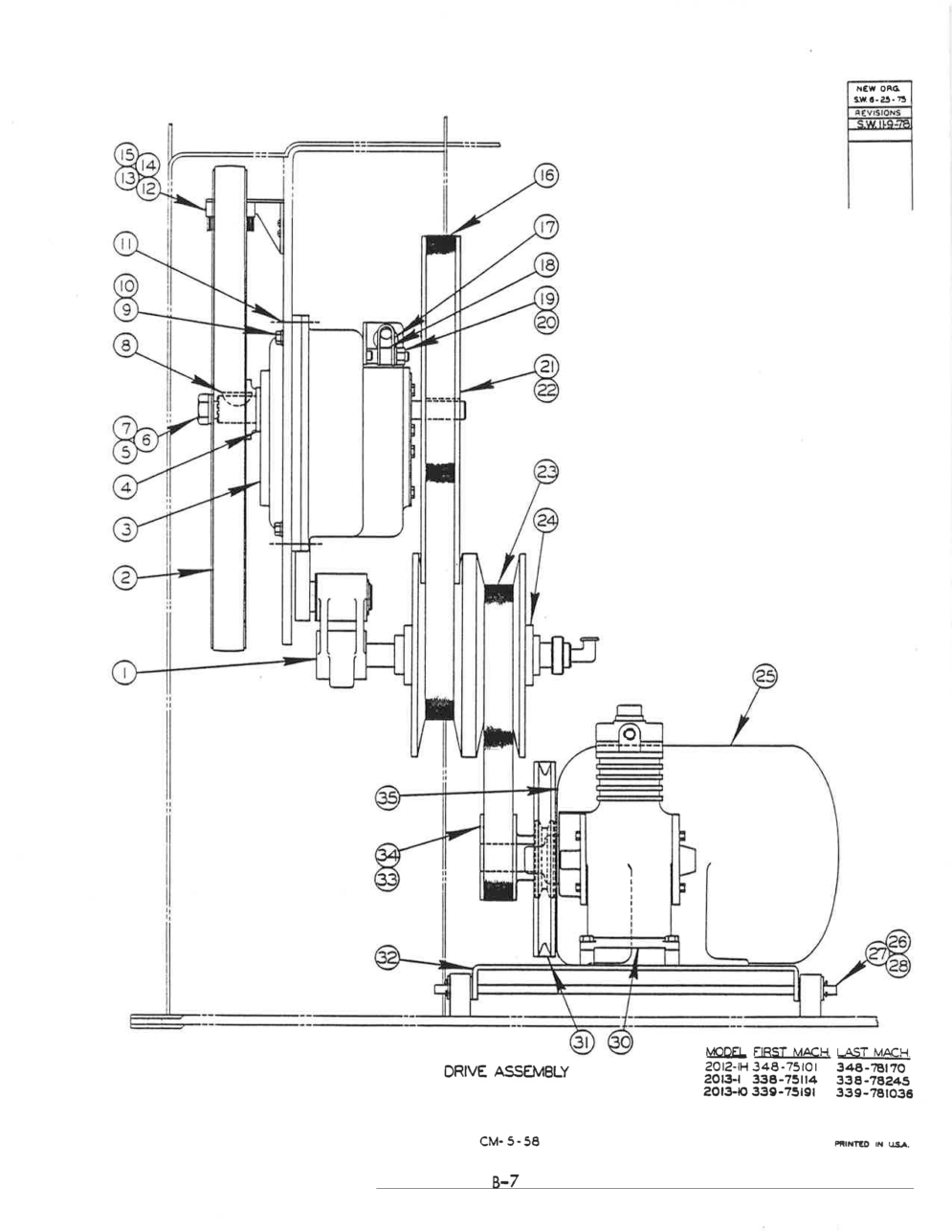

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 504230 Description: Drive Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-984377 Description: Screw, Soc. Set 5/16-18NC x1/2 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-397126 Description: Wheel Assembly Units Per Assembly: 1 Availability: In Stock Price: $1,399.65
Index No Ref.: Part Number: 091-253575 Description: Tire Units Per Assembly: 1 Availability: In Stock Price: $102.00
Index No Ref.: Part Number: 094-025996 Description: Lower Saw Wheel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 090-140872 Description: Plug Button Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-559972 Description: 2 Speed Transmission Sub-Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-318147 Description: Spacer Option List Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 091-991406 Description: Nut, Hex. Jam 3/4-10NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 6 Part Number: 091-992685 Description: Washer, Flat 3/4" Std. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 091-993782 Description: Washer, Lock 3/4" Shakeproof Ext. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 105-046049 Description: Key Units Per Assembly: 1 Availability: In Stock Price: $2.35
Index No Ref.: 9 Part Number: 091-980300 Description: Screw, Hex. Hd. Cap 5/16-18NC x 1-1/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-993238 Description: Washer, Lock 5/16 Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 135-066959 Description: Dowel Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 090-166844 Description: Brush Units Per Assembly: 1 Availability: In Stock Price: $6.98
Index No Ref.: 13 Part Number: 090-166646 Description: Brush Holder Weldment Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-988691 Description: Screw, Rd. Hd. Mach.#10-24NC x 1/2 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-992586 Description: Washer,#10 Std. Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 16 Part Number: 135-004695 Description: Vari-Speed Belt Units Per Assembly: 1 Availability: In Stock Price: $214.40
Index No Ref.: 17 Part Number: 135-065621 Description: Shifter Segment Units Per Assembly: 1 Availability: In Stock Price: $527.88
Index No Ref.: 18 Part Number: 135-065639 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-991265 Description: Nut, Hex. 3/8-16NC Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-993766 Description: Washer, Lock 3/8" Shakeproof Ext. Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 094-050960 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 107-013450 Description: Key Units Per Assembly: 1 Availability: In Stock Price: $1.49
Index No Ref.: 23 Part Number: 135-004703 Description: Vari-Speed Belt Units Per Assembly: 1 Availability: In Stock Price: $146.41
Index No Ref.: 24 Part Number: 135-093359 Description: Variable Sheave Assembly (See Detail) Units Per Assembly: 1 Availability: In Stock Price: $2,473.33
Index No Ref.: 25 Part Number: 094-052552 Description: Motor Base Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 093-039535 Description: Shaft Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-995167 Description: Cotter Pin Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-992644 Description: Washer, Flat 3/8" Std. Units Per Assembly: 5 Availability: In Stock Price: $4.20
Index No Ref.: 30 Part Number: 094-019577 Description: Air Pump Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 135-003408 Description: "V" Belt Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 094-045895 Description: Motor Base Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 094-034477 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-984245 Description: Screw, Soc. Set1/4-20NC x 3/8 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 091-113548 Description: Electric Motor 3 H. P.1800/60 TEFC Units Per Assembly: 1 Availability: Call For Info Price:
