Exploded View Parts Ordering: 2012-1H_348

2012-1H 348 Online Parts Manual

Serial No: 348-75101 End Date 348-78170

Return to manuals

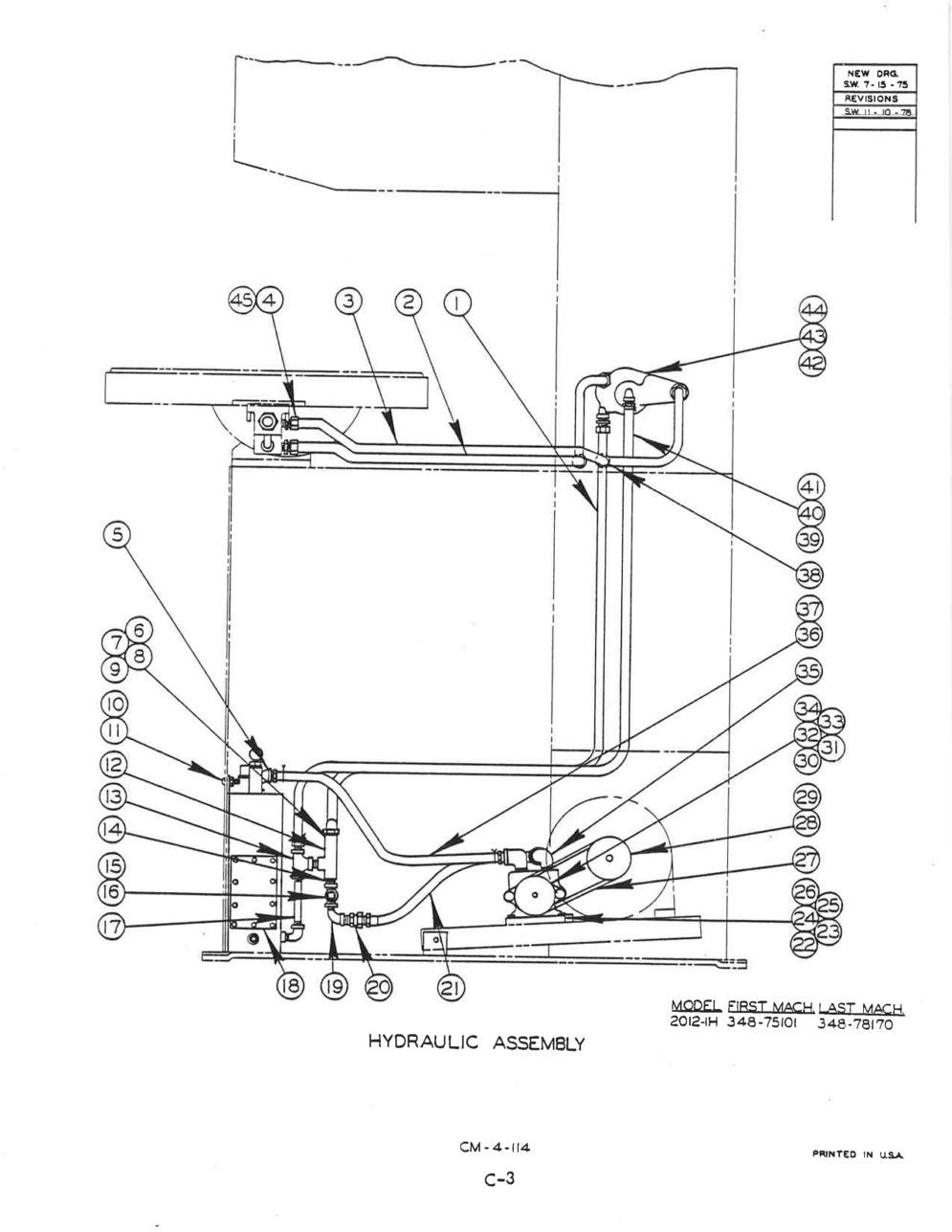

Page Code: CM-4-114

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 504537 Description: Hydraulic Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-971382 Description: Nylon Tube 3/8" O.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-971382 Description: Nylon Tube 3/8" O.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 091-971382 Description: Nylon Tube 3/8" O.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 090-030982 Description: Male Connector Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 117-135152 Description: 90 Degree Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 093-034189 Description: Orifice Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 135-035210 Description: Male Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 114-035074 Description: Close Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 105-115174 Description: Reducer Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-990218 Description: Screw, Truss Hd. Mach. 1/4-20NC x 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-991158 Description: Nut, Hex. 1/4-20NC Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-237834 Description: Relief Valve Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 135-009835 Description: Tee Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 135-011278 Description: Close Nipple Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 090-020280 Description: Cross Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 106-335185 Description: Pipe Plug Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 090-139056 Description: Pipe Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 094-006095 Description: Tank Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 105-115133 Description: 90 Degree Street Elbow Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 090-173311 Description: Swivel Adapter Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 090-041864 Description: Hose Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 093-043677 Description: Mounting Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-980300 Description: Screw, Hex. Hd. Cap 5/16-18NC x 1 1/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-991224 Description: Nut, Hex. 5/16-18NC Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-993238 Description: Washer, Lock 5/16" Std. Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 091-992628 Description: Washer, Flat 5/16" Std Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 134-055078 Description: V-Belt Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 094-062288 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 091-984823 Description: Screw, Soc. Set 1/4-20NC x 1 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 090-020520 Description: Pulley Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-984377 Description: Screw, Soc. Set 5/16-18NC x1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 090-061136 Description: Hydraulic Pump Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-087841 Description: Mounting Foot Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-980276 Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 114-003478 Description: 90 Degree Street Elbow Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 091-970947 Description: Hose 3/8" I.D. Units Per Assembly: A.R. Availability: In Stock Price: $3.44
Index No Ref.: 37 Part Number: 090-096678 Description: Barbed Insert Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 38 Part Number: 090-058470 Description: Grommet Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 091-970947 Description: Hose 3/8" I.D. Units Per Assembly: A.R. Availability: In Stock Price: $3.44
Index No Ref.: 40 Part Number: 090-149287 Description: Barbed Insert Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 090-179029 Description: Hose Clamp Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 42 Part Number: 090-433236 Description: Valve Assembly(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 091-990192 Description: Screw, Truss Hd. Mach. 1/4-20NC x 3/8 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 135-011492 Description: Pipe Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 091-135848 Description: 45 Degree Male Elbow Units Per Assembly: 2 Availability: Call For Info Price:
