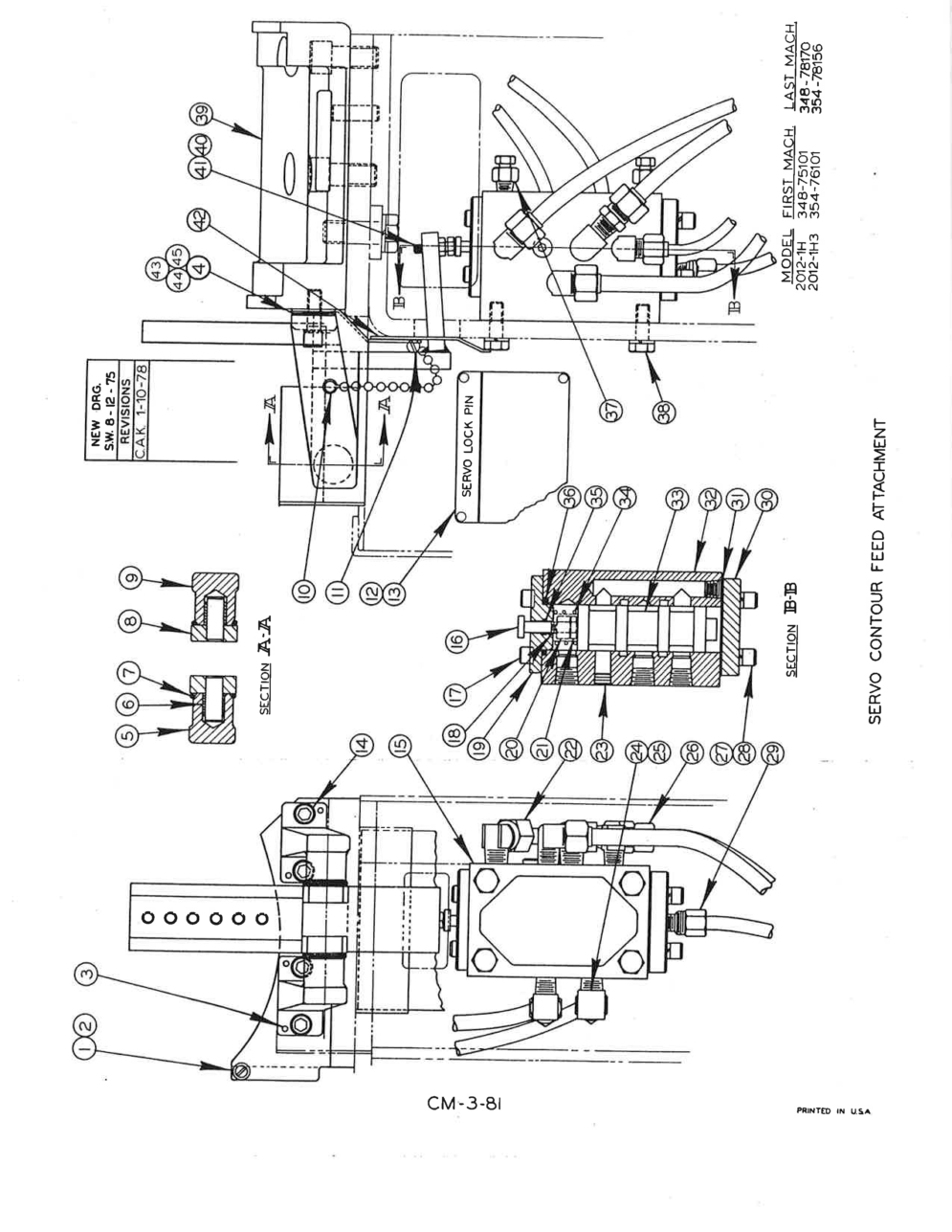

Exploded View Parts Ordering: 2012-1H_348

2012-1H 348 Online Parts Manual

Serial No: 348-75101 End Date 348-78170

Return to manuals

Page Code: CM-3-81

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 095-046017 Description: Servo-Contour Feed Assembly Units Per Assembly: ASS'Y Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 091-988410 Description: Screw, Rd. Hd. Mach. #6-32NC x 1/2 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 091-092874 Description: Spacer Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-046798 Description: Dowel Pin Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 091-283861 Description: Shim 1/32 Thk. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 093-000438 Description: Left Hand Pivot Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 091-235705 Description: Sleeve Bearing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 090-065053 Description: "O"-Ring Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 090-399643 Description: Bell Crank Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 093-000420 Description: Right Hand Pivot Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-384511 Description: Pin Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-988535 Description: Screw, Rd. Hd. Mach. #8-32NC x 3/8 Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-236026 Description: Escutcheon Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 091-993998 Description: Drive Screw 04 x 1/4 Type "U" Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-982603 Description: Screw, Soc. Hd. Cap 5/16-18NC x 1 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 094-027547 Description: Servo Valve Sub-Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 091-068874 Description: Plunger Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 091-982363 Description: Scr., Soc. Hd. Cap 1/4-20NC x 1/2 Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 18 Part Number: 090-073511 Description: Bushing Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 091-068742 Description: End Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 091-110973 Description: Hex. Nut Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 091-991208 Description: Nut, Hex. Jam 1/4-28NF Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-071084 Description: 90 Degree Male Elbow Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 23 Part Number: 091-203695 Description: Soc. Pipe Plug Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 24 Part Number: 091-050534 Description: Elbow Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 090-014010 Description: Male Connector Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 090-014077 Description: 90 Degree Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-982397 Description: Screw, Soc. Hd. Cap 1/4-20NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 091-993212 Description: Washer, Lock 1/4" Std. Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: 29 Part Number: 090-099359 Description: Male Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-092841 Description: End Cap Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-081042 Description: Gasket Units Per Assembly: 1 Availability: In Stock Price: $13.69
Index No Ref.: *32 Part Number: 090-479304 Description: Valve Body Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: *33 Part Number: 090-329376 Description: Spool Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 091-101717 Description: Spring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 35 Part Number: 090-015124 Description: "O"-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 36 Part Number: 135-095214 Description: "O"-Ring Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 37 Part Number: 091-000398 Description: Air Vent Units Per Assembly: 2 Availability: In Stock Price: $84.72
Index No Ref.: 38 Part Number: 091-980276 Description: Screw, Hex. Hd. Cap 5/16-18NC x 3/4 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 39 Part Number: 094-062536 Description: Cradle Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 40 Part Number: 091-980086 Description: Screw, Hex. Hd. Cap 1/4-20NC x 3/4 Units Per Assembly: 5 Availability: Call For Info Price:
Index No Ref.: 41 Part Number: 091-991141 Description: Nut, Hex. Jam 1/4-20NC Units Per Assembly: 1 Availability: In Stock Price: $4.20
Index No Ref.: 42 Part Number: 091-277392 Description: Gasket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 43 Part Number: 091-283879 Description: Shim .010 Thk Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 44 Part Number: 091-283887 Description: Shim .007 Thk. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 45 Part Number: 091-283895 Description: Shim .003 Thk Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: Part Number: Description: *NOTE: When Replacing Valve Body or Valve Spool, Replace as a Unit Units Per Assembly: Availability: Call For Info Price:
