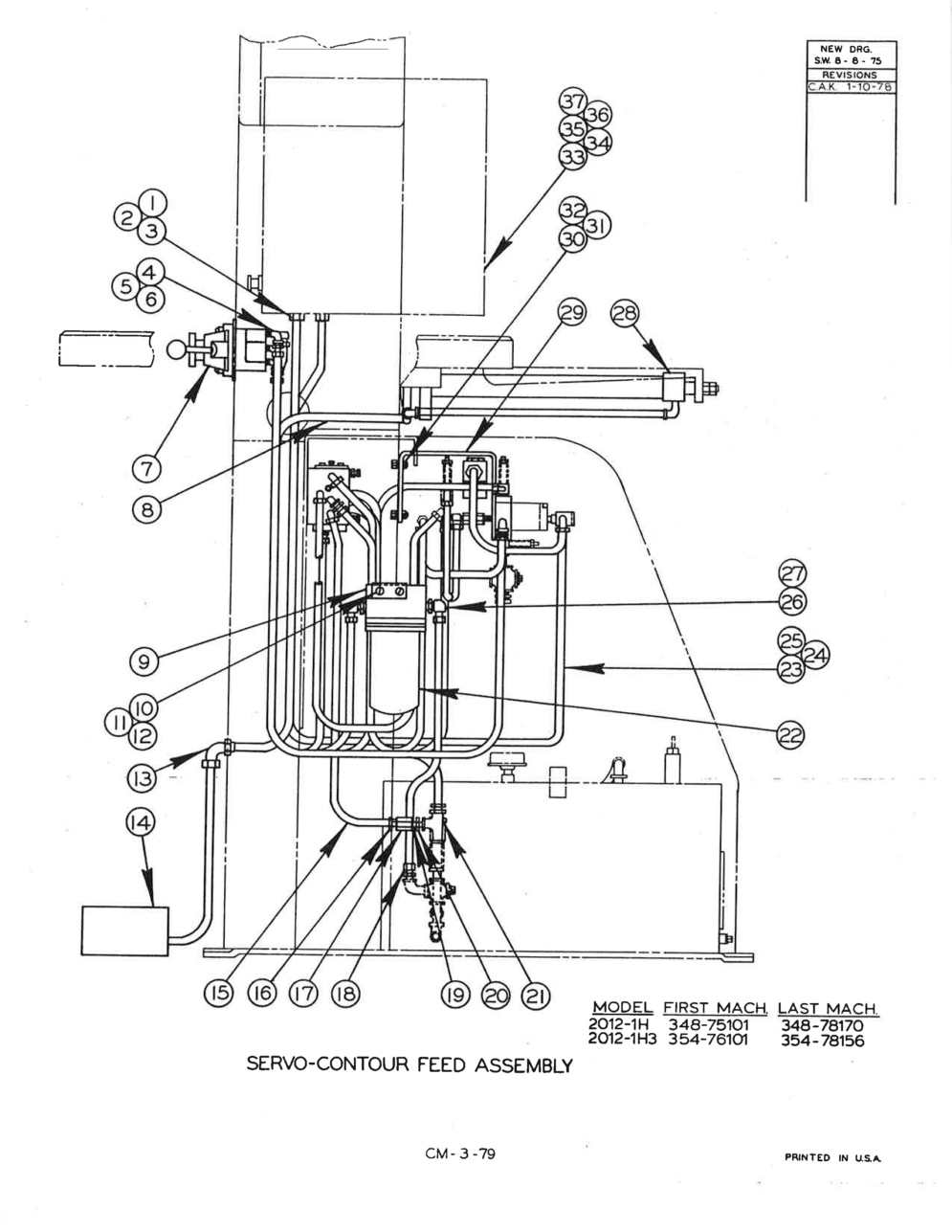

Exploded View Parts Ordering: 2012-1H_348

2012-1H 348 Online Parts Manual

Serial No: 348-75101 End Date 348-78170

Return to manuals

Page Code: CM-3-79

Click for Larger View
Index No Ref. Part Number Description Units Per Assembly Availability Price
Index No Ref.: Ref. Part Number: 095-046017 Description: Servo-Contour Feed Assembly Units Per Assembly: Availability: Call For Info Price:
Index No Ref.: 1 Part Number: 090-107897 Description: Cord Grip Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 2 Part Number: 090-144114 Description: Flange Washer Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 3 Part Number: 090-145053 Description: "O"-Ring Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 4 Part Number: 135-035228 Description: 90 Degree Male Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 5 Part Number: 090-133836 Description: Adaptor Tee Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 6 Part Number: 105-115133 Description: 90 Degree Street Elbow Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 7 Part Number: 094-006129 Description: Valve Sub-Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 8 Part Number: 091-971382 Description: Nylon Tubing 3/8" O.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 9 Part Number: 091-211193 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 10 Part Number: 091-990283 Description: Screw,Truss Hd. Mach. 5/16-18NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 11 Part Number: 091-993329 Description: Washer, Spring Lock 3/8" Med. Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 12 Part Number: 091-982785 Description: Screw, Soc. Hd. Cap 3/8-16NC x 3/4 Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 13 Part Number: 090-151424 Description: Cord Grip Connector 90 Degree Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 14 Part Number: 091-329276 Description: Foot Switch Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 15 Part Number: 091-971374 Description: Nylon Tubing 1/4" O.D. Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 16 Part Number: 090-092735 Description: Male Connector Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 17 Part Number: 093-034106 Description: Orifice Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 18 Part Number: 090-030982 Description: Male Connector Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 19 Part Number: 114-035074 Description: Close Nipple Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 20 Part Number: 105-115174 Description: Reducer Bushing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 21 Part Number: 135-009827 Description: Service Tee Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 22 Part Number: 091-211128 Description: Filter Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-211136 Description: Filter Element Units Per Assembly: 1 Availability: In Stock Price: $60.34
Index No Ref.: 23 Part Number: 091-971564 Description: Sealtite Conduit 1/2" Units Per Assembly: A.R. Availability: In Stock Price: $6.70
Index No Ref.: 24 Part Number: 091-971903 Description: Wire, #14 Red Nylon Jacket Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 25 Part Number: 091-971879 Description: Wire, #14 White Nylon Jacket Units Per Assembly: A.R. Availability: Call For Info Price:
Index No Ref.: 26 Part Number: 090-014036 Description: 90 Degree Male Elbow Units Per Assembly: 3 Availability: Call For Info Price:
Index No Ref.: 27 Part Number: 091-223685 Description: Reducer Bushing Units Per Assembly: 2 Availability: Call For Info Price:
Index No Ref.: 28 Part Number: 090-481391 Description: Table Cylinder Assembly (See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 29 Part Number: 094-062767 Description: Bracket Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 30 Part Number: 091-980292 Description: Screw, Hex. Hd. Cap 5/16-18NC x 1 Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 31 Part Number: 091-992628 Description: Washer, Flat 5/16" SAE Units Per Assembly: 4 Availability: Call For Info Price:
Index No Ref.: 32 Part Number: 091-991224 Description: Nut, Hex. 5/16-18NC Full Units Per Assembly: 6 Availability: Call For Info Price:
Index No Ref.: 33 Part Number: 091-163121 Description: Legend Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: 34 Part Number: 090-152455 Description: Selector Switch Units Per Assembly: 2 Availability: In Stock Price: $329.89
Index No Ref.: 35 Part Number: 090-149626 Description: Contact Block Units Per Assembly: 1 Availability: In Stock Price: $228.54
Index No Ref.: 36 Part Number: 091-048215 Description: Contact Block Units Per Assembly: 1 Availability: In Stock Price: $130.39
Index No Ref.: 37 Part Number: 091-137166 Description: Legend Plate Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: Description: Following Items Not Shown: Units Per Assembly: Availability: Price:
Index No Ref.: Part Number: 095-052015 Description: Valve Manifold Assembly (60HZ)(See Detail) Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-993212 Description: Washer, Lock 1/4" Units Per Assembly: 4 Availability: In Stock Price: $4.20
Index No Ref.: Part Number: 090-022318 Description: 45 Degree Street Elbow Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 135-003218 Description: Hydraulic Hose Assembly Units Per Assembly: 1 Availability: Call For Info Price:
Index No Ref.: Part Number: 091-332007 Description: Swivel Adaptor Union Units Per Assembly: 1 Availability: Call For Info Price:
