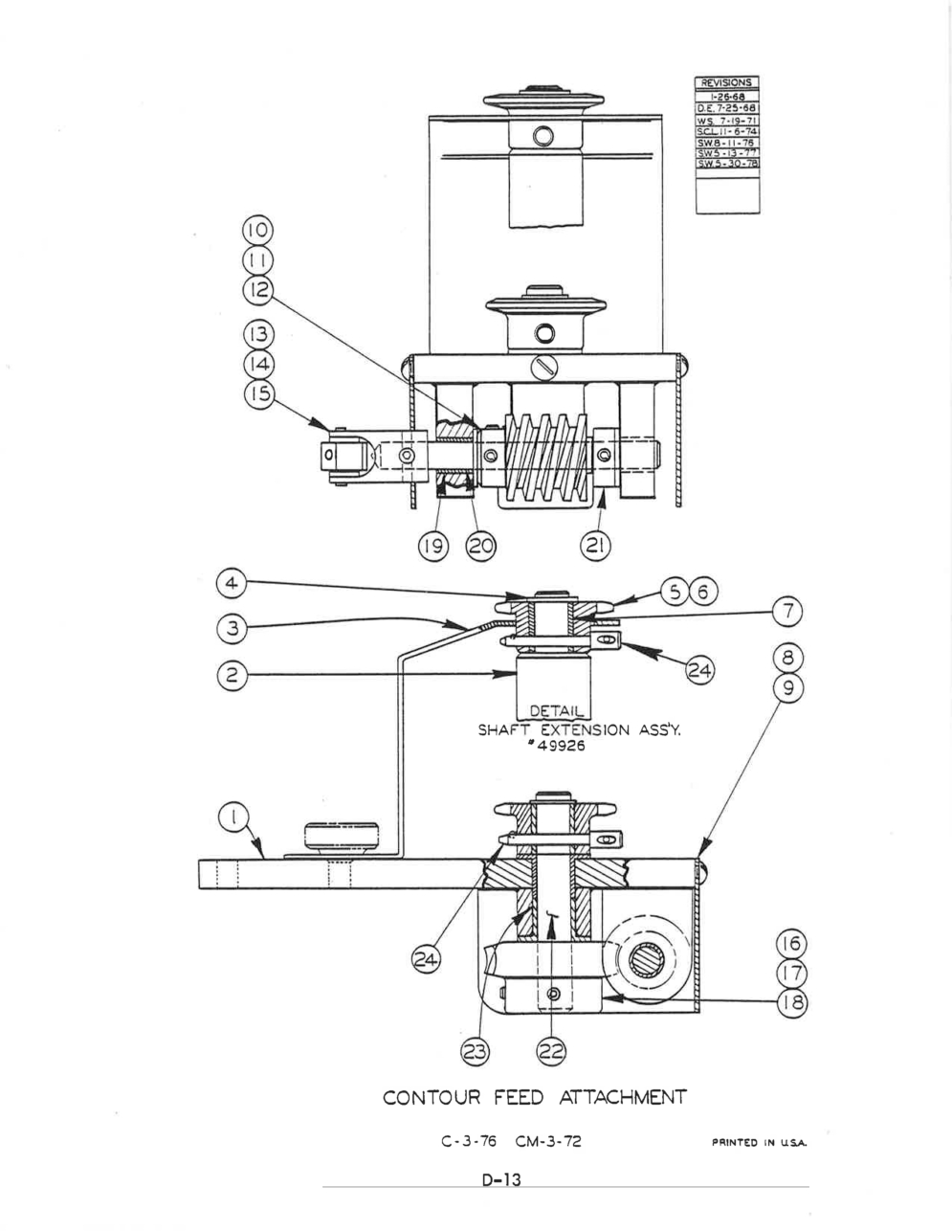

Exploded View Parts Ordering: 2012-1H_348
Page Code: CM-3-72
Index No Ref. |
Part Number |
Description |
Units Per Assembly |
Availability |
Price |
Index No Ref.:
Ref. |
Part Number:
47931 |
Description:
Contour Attachment Sub-Assembly |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
Index No Ref.:
1 |
Part Number:
090-333295 |
Description:
Bracket Weldment |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
*2 |
Part Number:
090-362385 |
Description:
Sprocket Shaft Extension |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
*3 |
Part Number:
090-499187 |
Description:
Chain Guide |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
4 |
Part Number:
135-064269
|
Description:
Snap Ring |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$1.28 |
Index No Ref.:
5 |
Part Number:
091-085357 |
Description:
Sprocket Assembly |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
6 |
Part Number:
091-085332 |
Description:
Sprocket |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
7 |
Part Number:
091-085340 |
Description:
Bearing |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
8 |
Part Number:
090-333055 |
Description:
Guard |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
9 |
Part Number:
091-990150 |
Description:
Scr. Truss Hd. Mach. #10-24NC x 3/8 |
Units Per Assembly:
3 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
10 |
Part Number:
091-085274 |
Description:
Worm |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
11 |
Part Number:
091-083923 |
Description:
Bearing |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
12 |
Part Number:
090-042599
|
Description:
Roll Pin |
Units Per Assembly:
2 |
Availability:
In Stock
|
Price:
$1.28 |
Index No Ref.:
13 |
Part Number:
134-055243 |
Description:
Universal Joint |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
14 |
Part Number:
090-042573 |
Description:
Roll Pin |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
15 |
Part Number:
091-984229 |
Description:
Scr. Soc. Hd. Set 1/4-20NC x 1/4 |
Units Per Assembly:
3 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
16 |
Part Number:
091-085266 |
Description:
Worm Gear |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
17 |
Part Number:
090-042631
|
Description:
Roll Pin |
Units Per Assembly:
1 |
Availability:
In Stock
|
Price:
$1.28 |
Index No Ref.:
18 |
Part Number:
091-984245 |
Description:
Ser. Soc. Ad. Set 1/4-20NC x 3/8 |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
19 |
Part Number:
091-081463 |
Description:
Bearing |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
20 |
Part Number:
091-087577 |
Description:
Shaft |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
21 |
Part Number:
134-054105 |
Description:
Collar |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
22 |
Part Number:
091-087296 |
Description:
Axle |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
23 |
Part Number:
091-007955 |
Description:
Oilite Bearing |
Units Per Assembly:
2 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
24 |
Part Number:
091-085365 |
Description:
Pin |
Units Per Assembly:
1 |
Availability:
Call For Info
|
Price:
|
Index No Ref.:
|
Part Number:
|
Description:
*NOTE: Items 2 and 3 are used only on Shaft Extension Assembly #090-499260. |
Units Per Assembly:
|
Availability:
Call For Info
|
Price:
|
